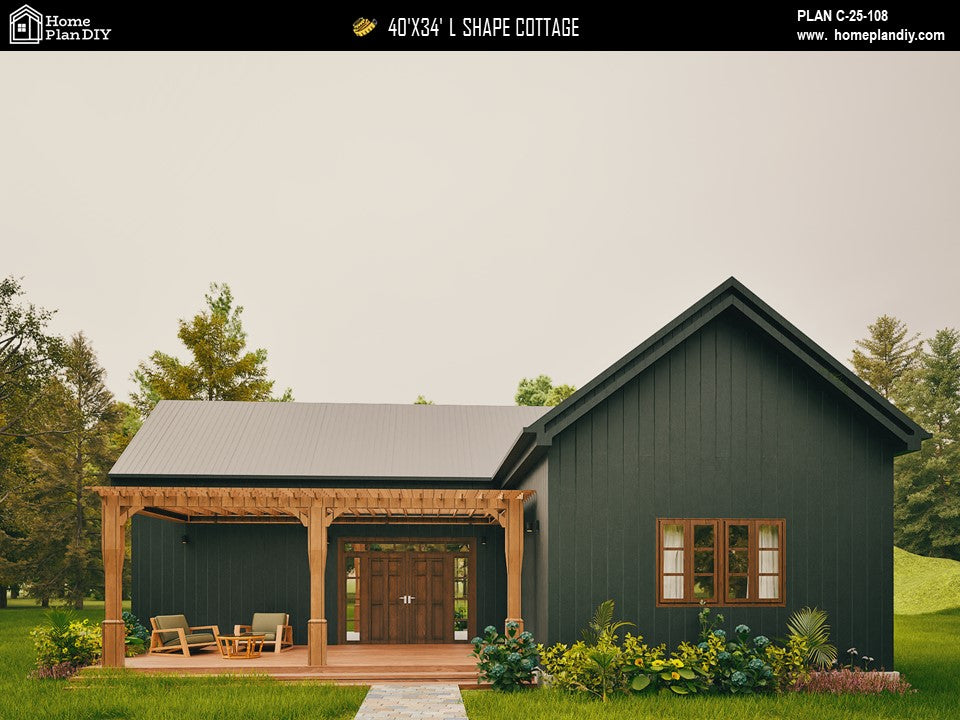

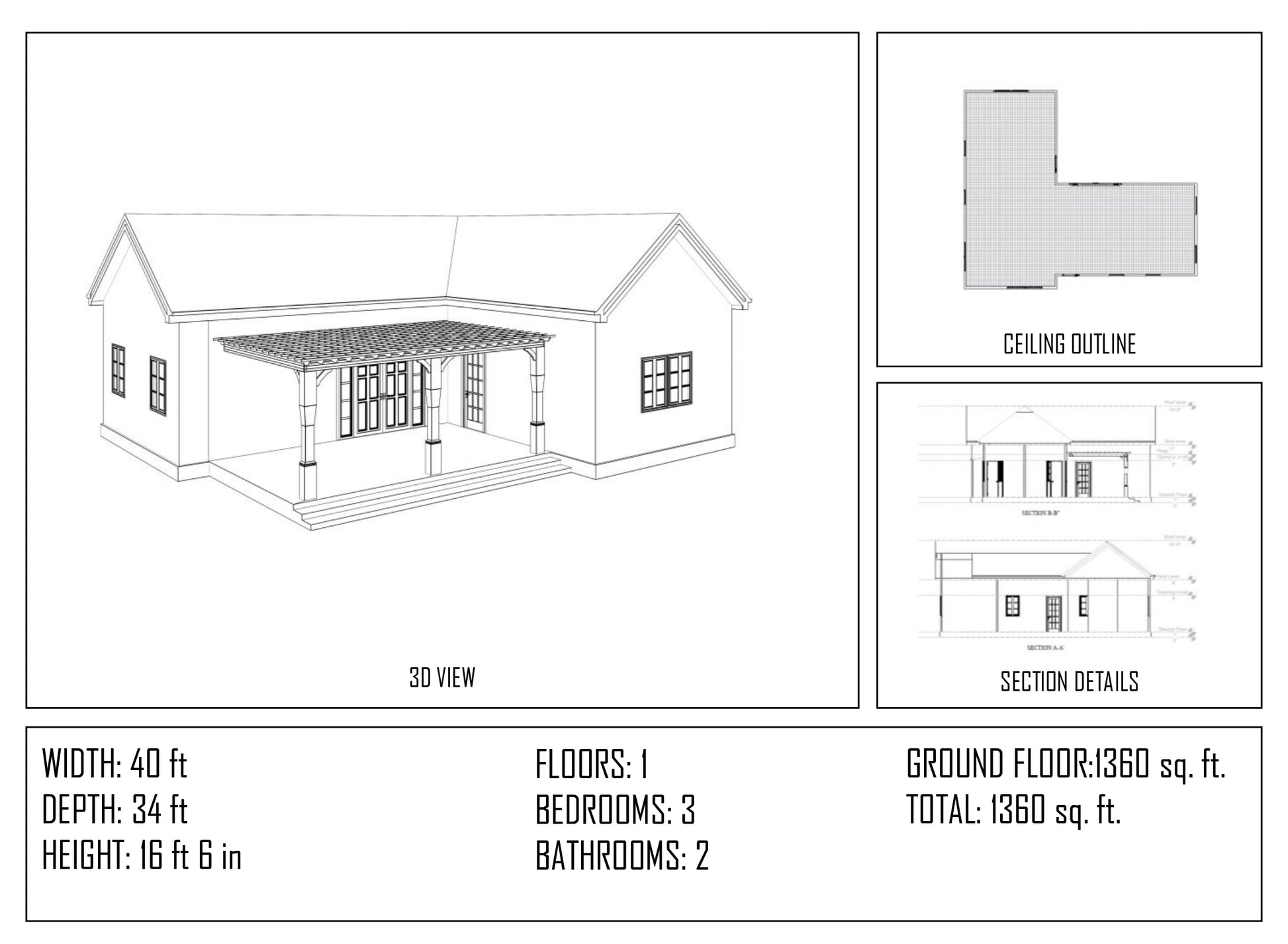

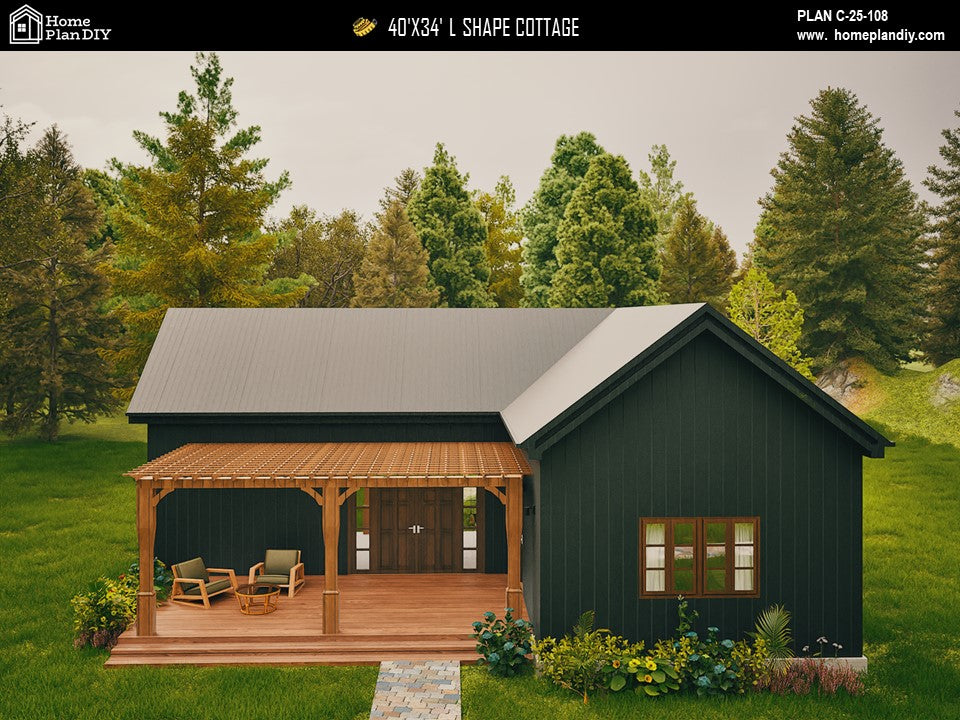

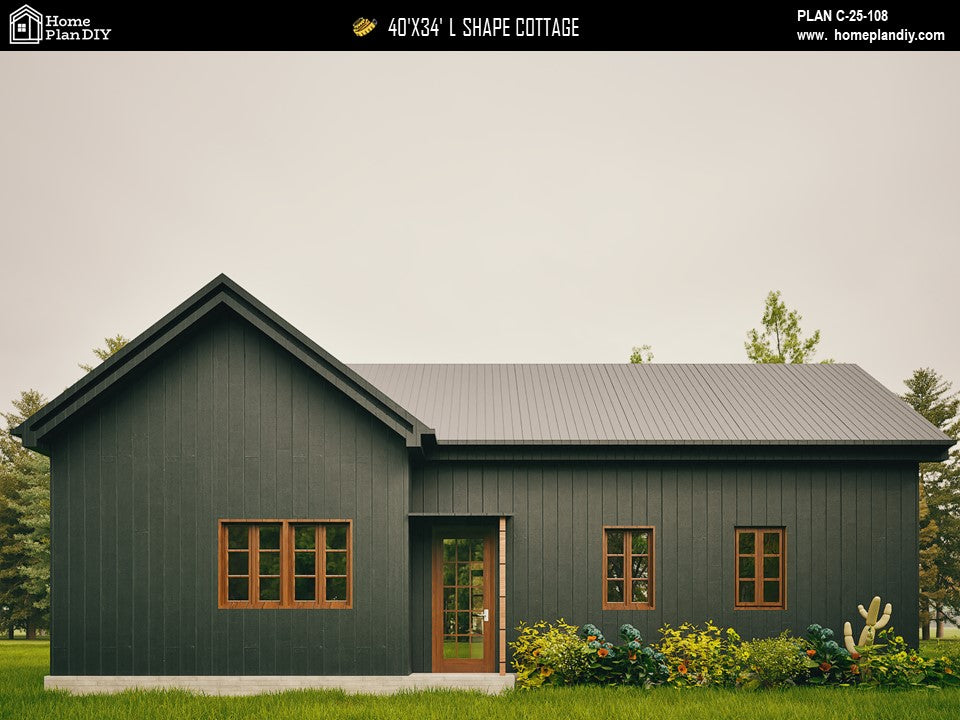

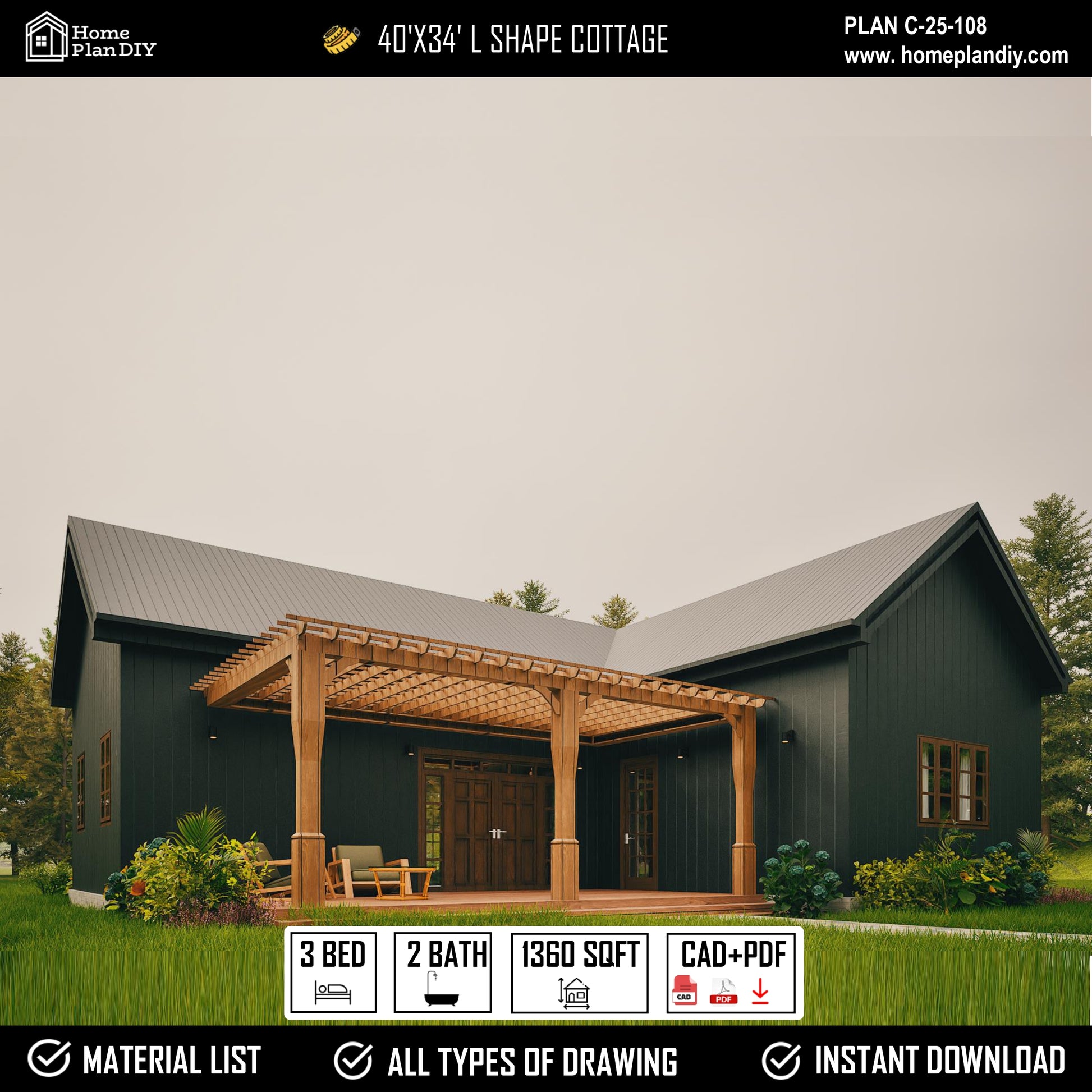

Step into laid-back charm and modern simplicity with this thoughtfully designed 40' x 34' L-Shaped Cottage House Plan. With 1,360 sq ft of cozy living space, this one-story home blends rustic warmth with contemporary function—perfect for small families, retirees, or anyone seeking a relaxing getaway cabin or stylish starter home.

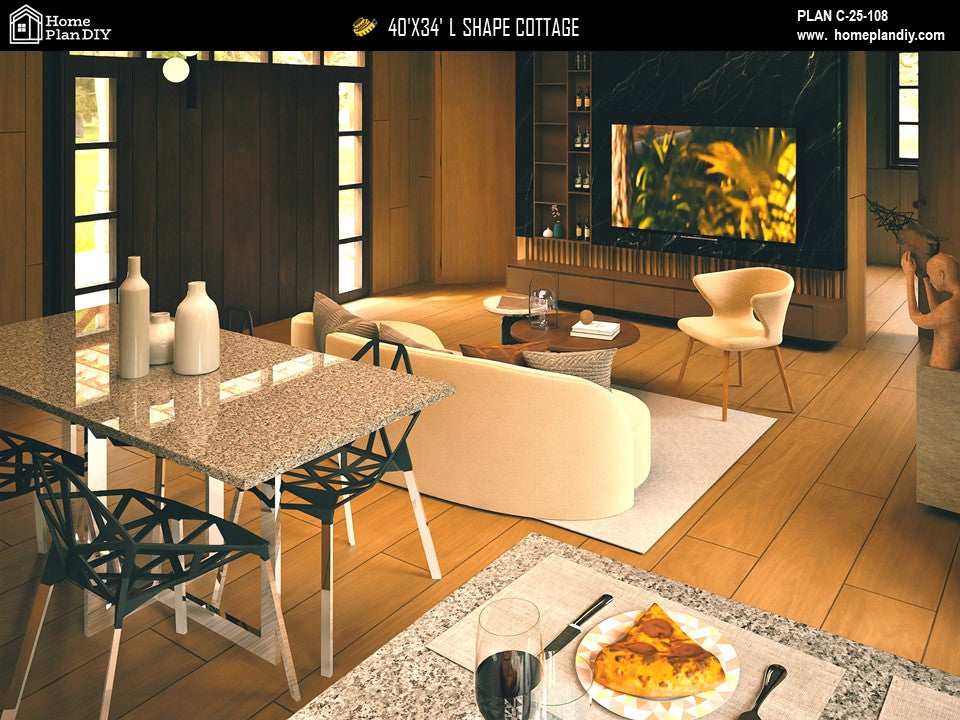

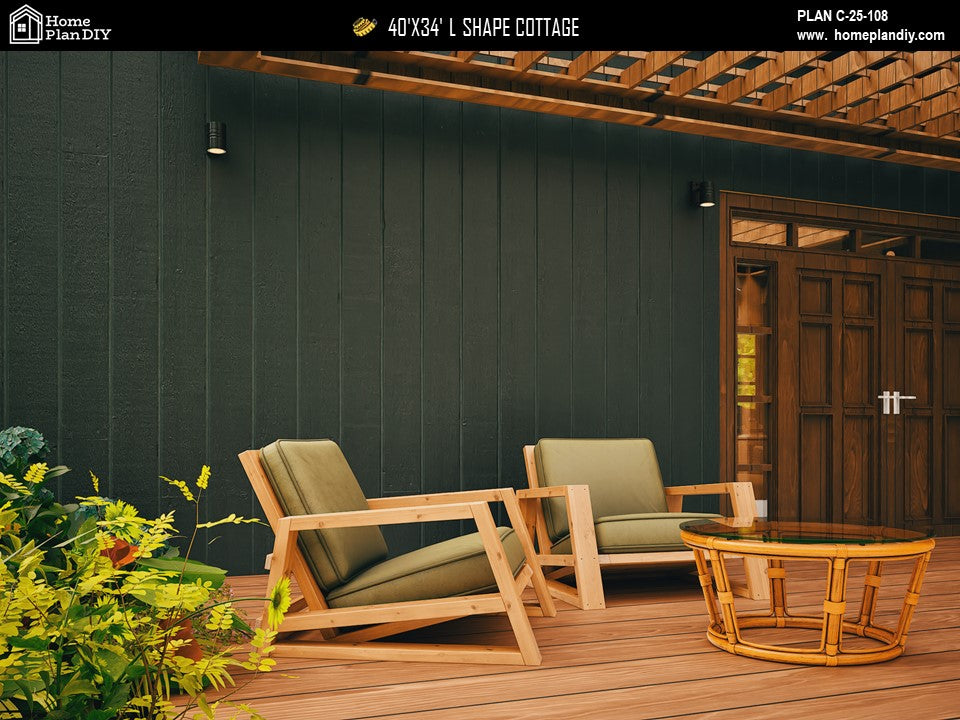

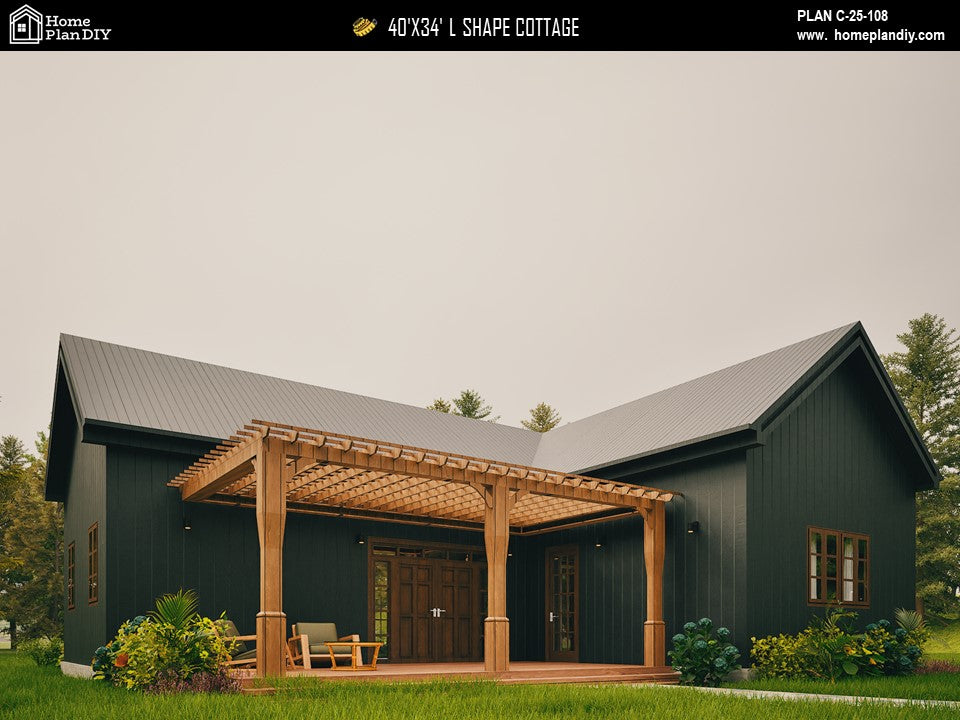

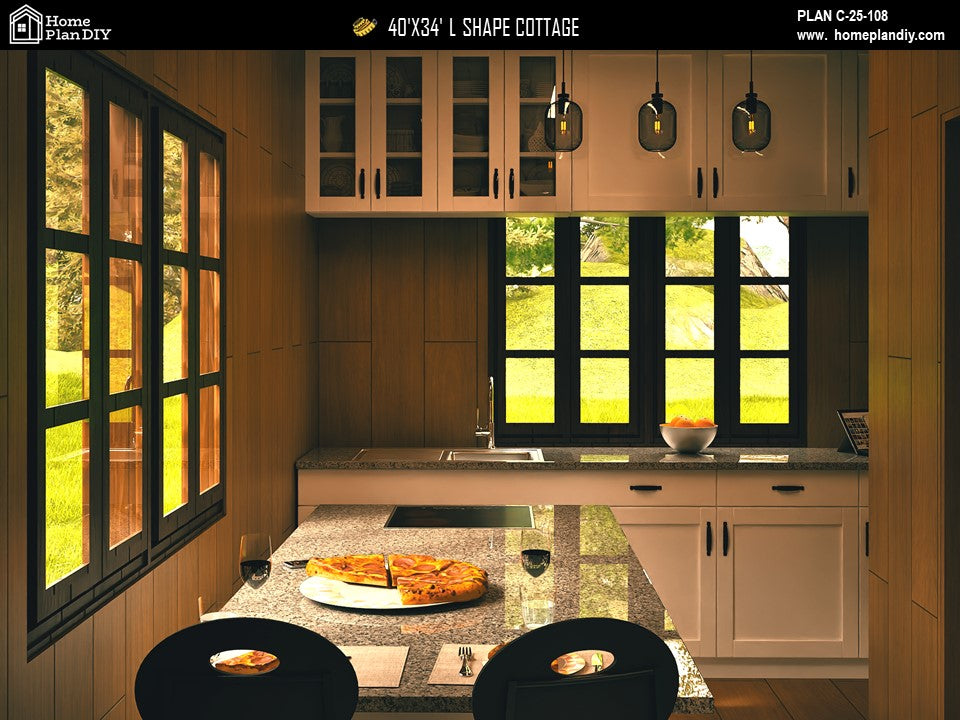

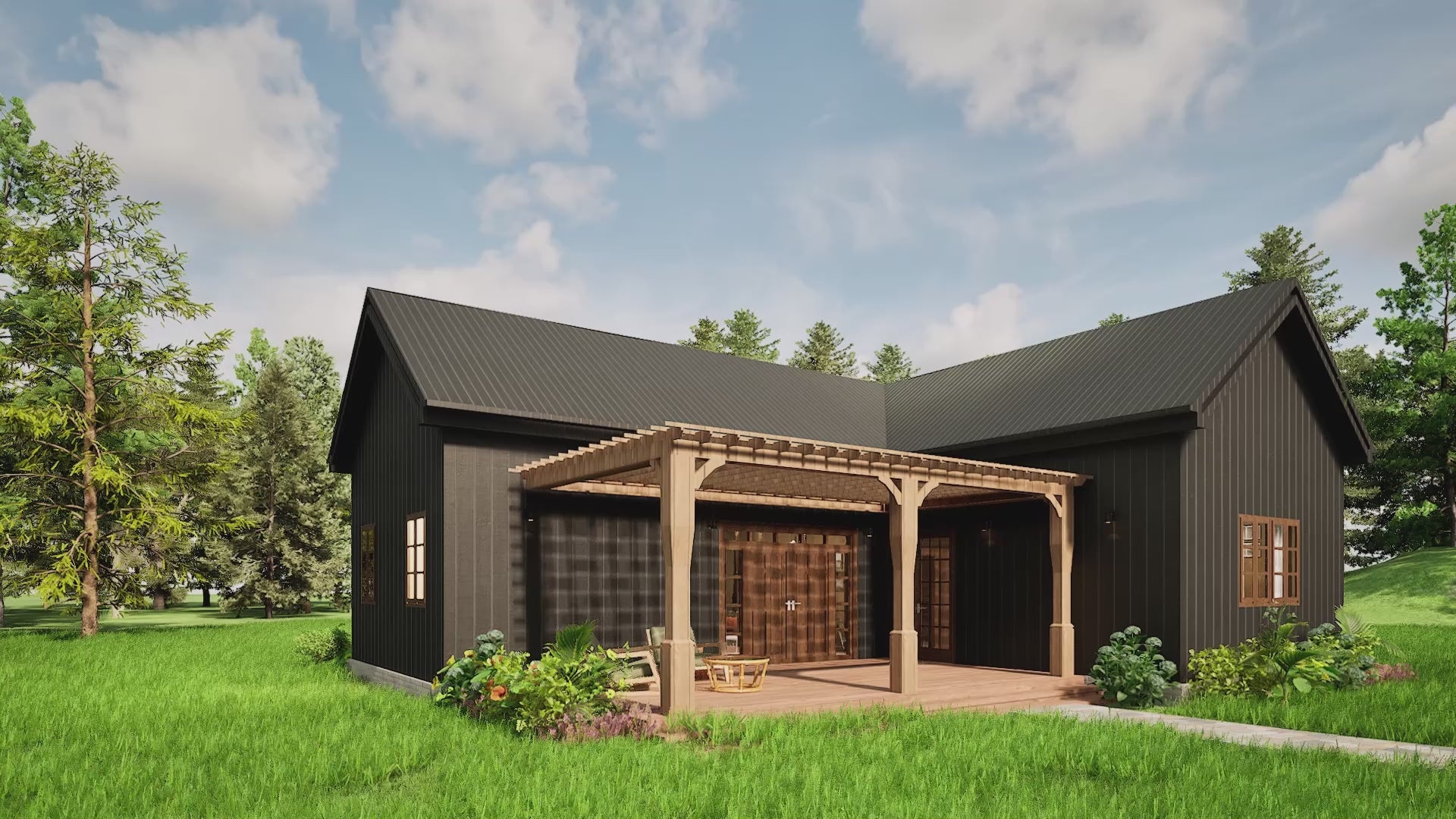

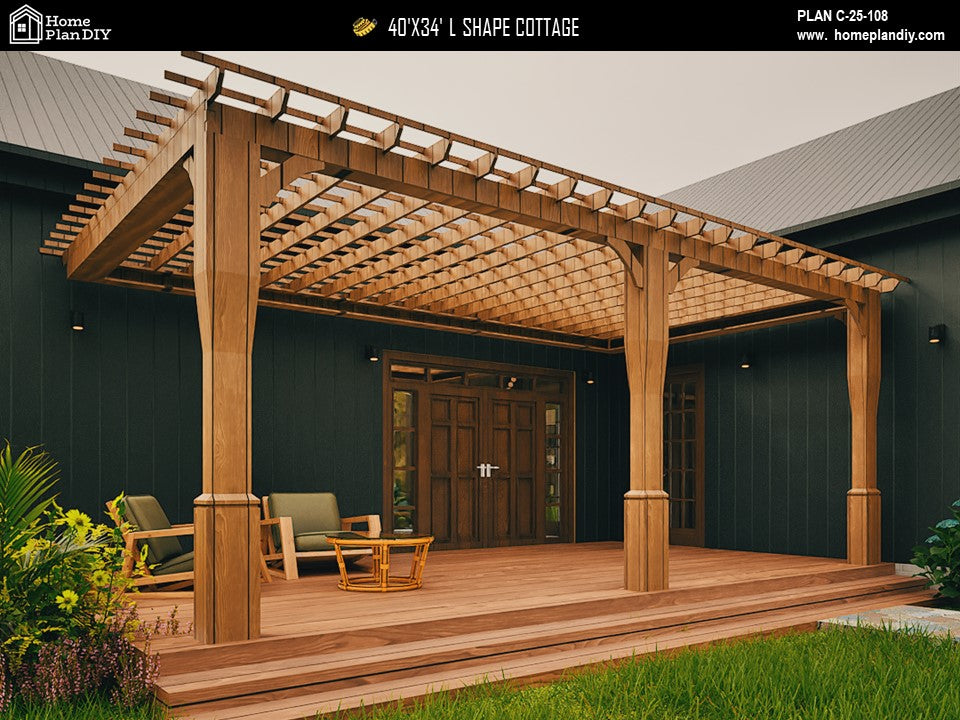

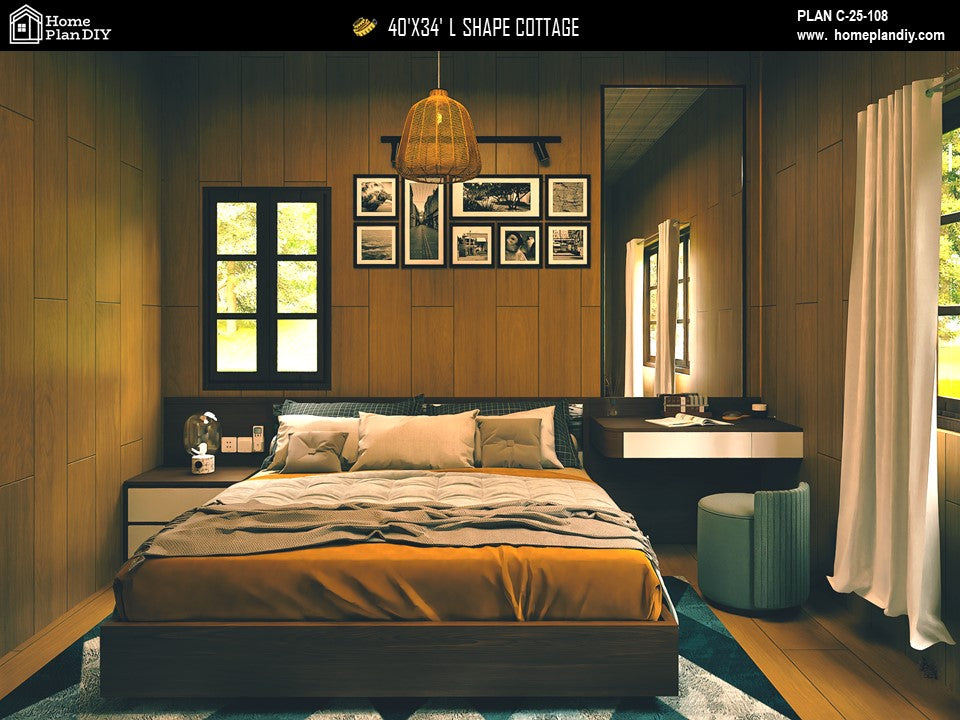

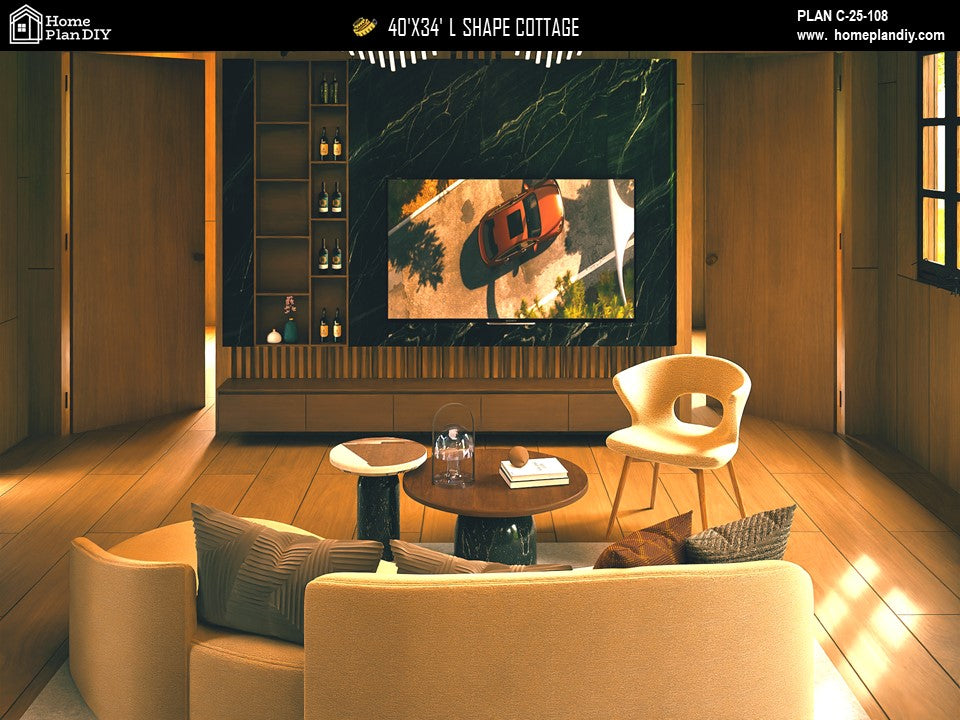

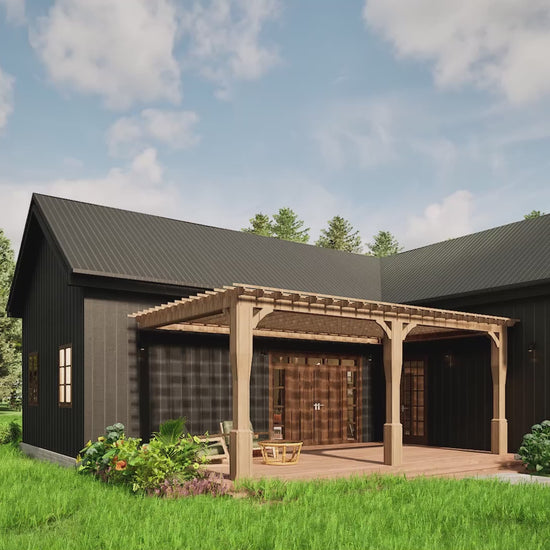

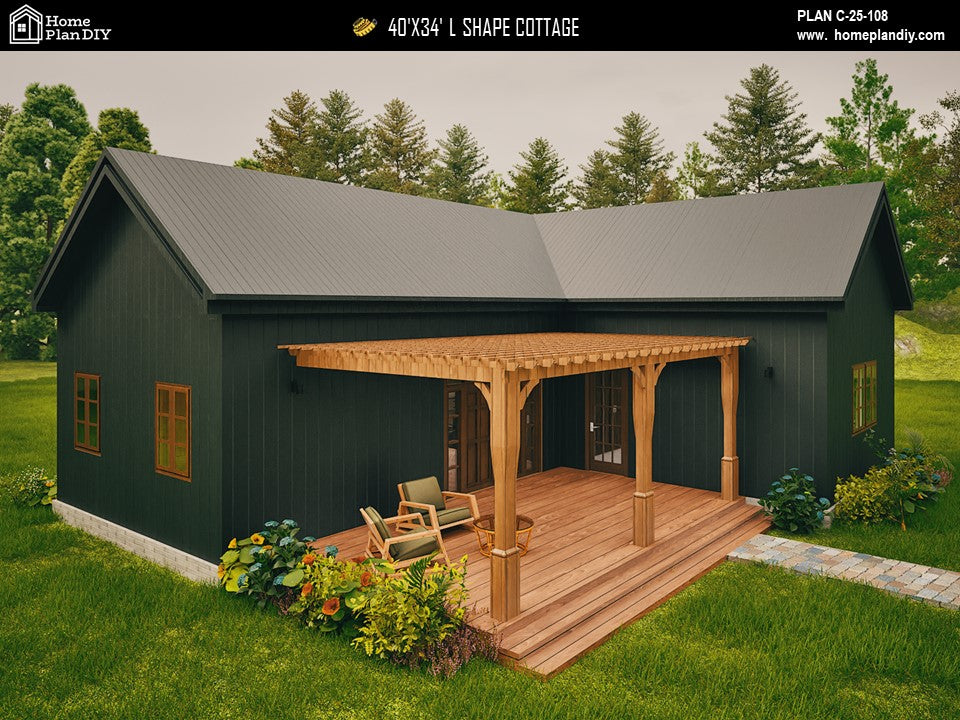

The unique L-shape creates natural flow and privacy, while a covered front porch and open terrace offer seamless indoor-outdoor living. Inside, enjoy a bright, open-concept living room, a well-planned kitchen, three comfortable bedrooms, and two full bathrooms—all in a compact footprint that maximizes space and comfort.

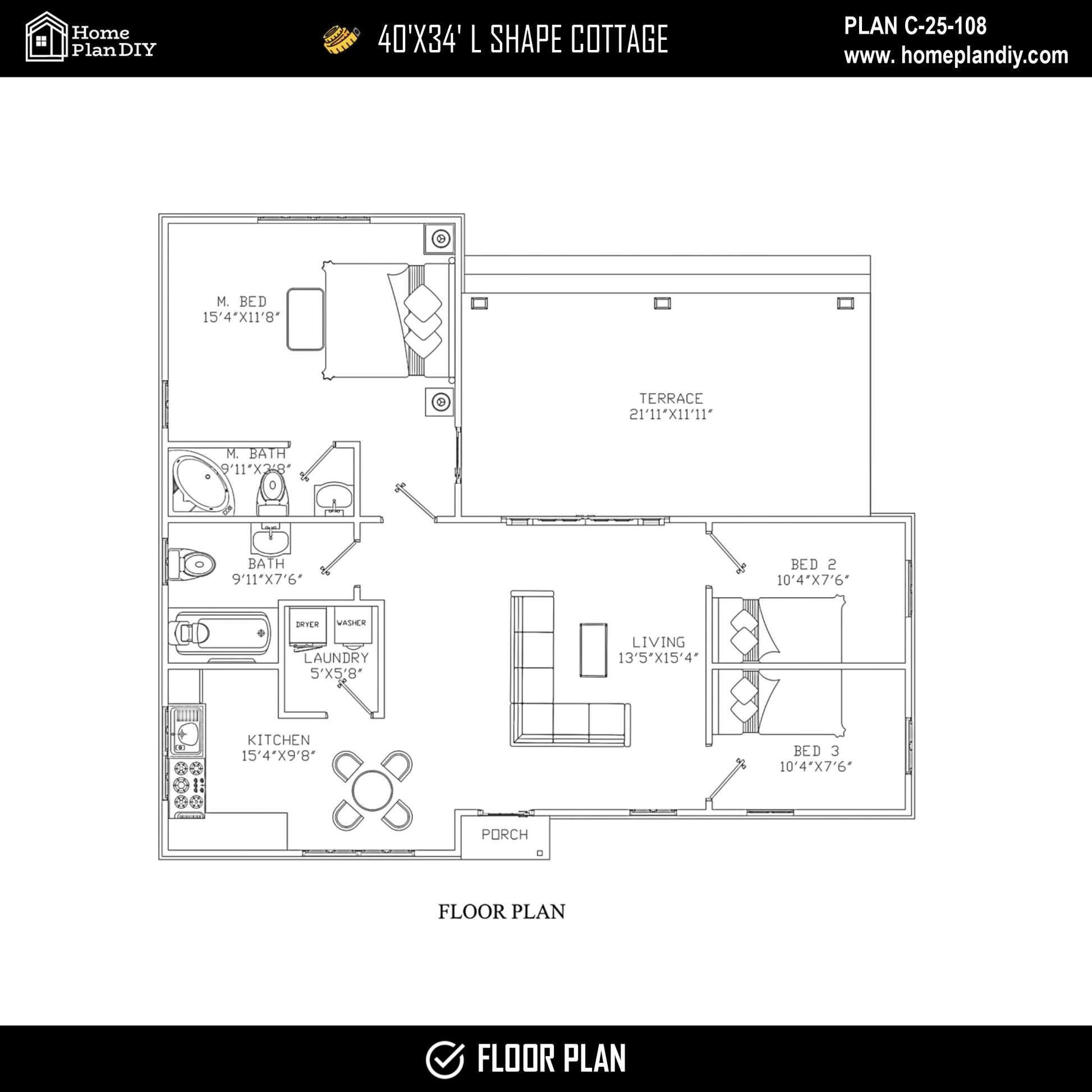

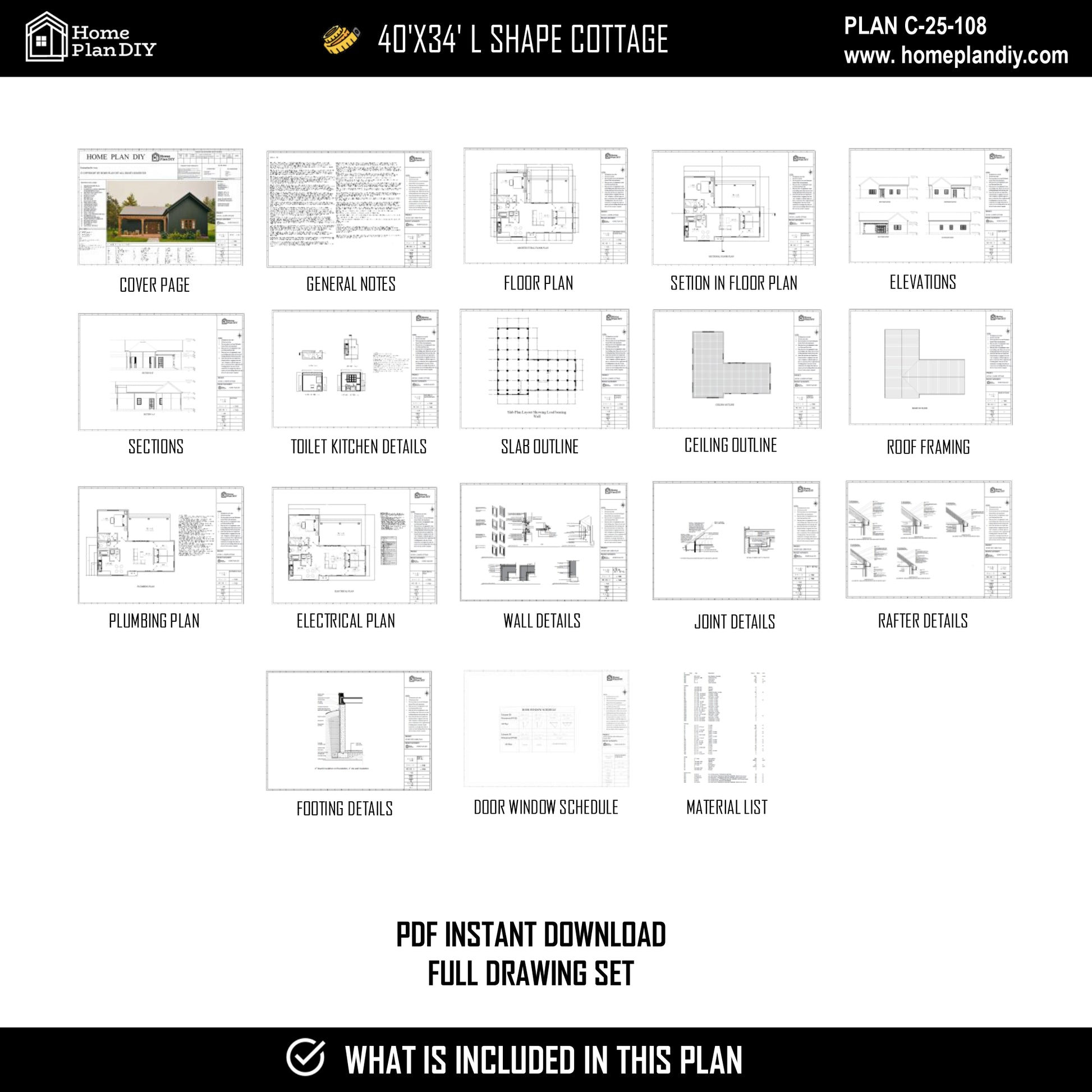

🏗️ What’s Included in the Download: A full professional construction set (23 sheets total) 1. Ground Floor Plan 2. Loft Plan 3. Slab Plan Layout Showing Load Bearing Wall 4. Sections in Floor Plan 5. Ceiling Outline 6. Roof Outline 7. Section A-A' 8. Section B-B' 9. East Elevation 10. West Elevation 11. North Elevation 12. South Elevation 13. Toilet Details 14. Kitchen Details 15. Rafter Details 16. Wall Details 17. Wall and Window Details 18. Exterior Wall Foundation Details 19. Door Window Schedule 20. Framing Details 21. Electrical Plan 22. Plumbing Layout 23. Material Specifications File Format: High-resolution PDF – ready for print or digital use.
🌿 Perfect For: ● Small families, retirees, or couples wanting to build their dream home ● Landowners seeking a budget-conscious, code-friendly layout ● Vacation homes, Airbnb rentals, or mountain/lake retreats ● DIY homebuilders who value clarity, quality, and charm
📌 Important Notes: ● Digital Product Only – No physical materials shipped ● Plans may require modification by a local engineer to meet regional building codes ● For personal use only – resale or redistribution not allowed ● Due to copyright laws, returns are not available
Start your homebuilding journey with confidence and creativity. This plan from Home Plan DIY makes your cottage dream possible—with everything you need in one complete, easy-to-use package.
