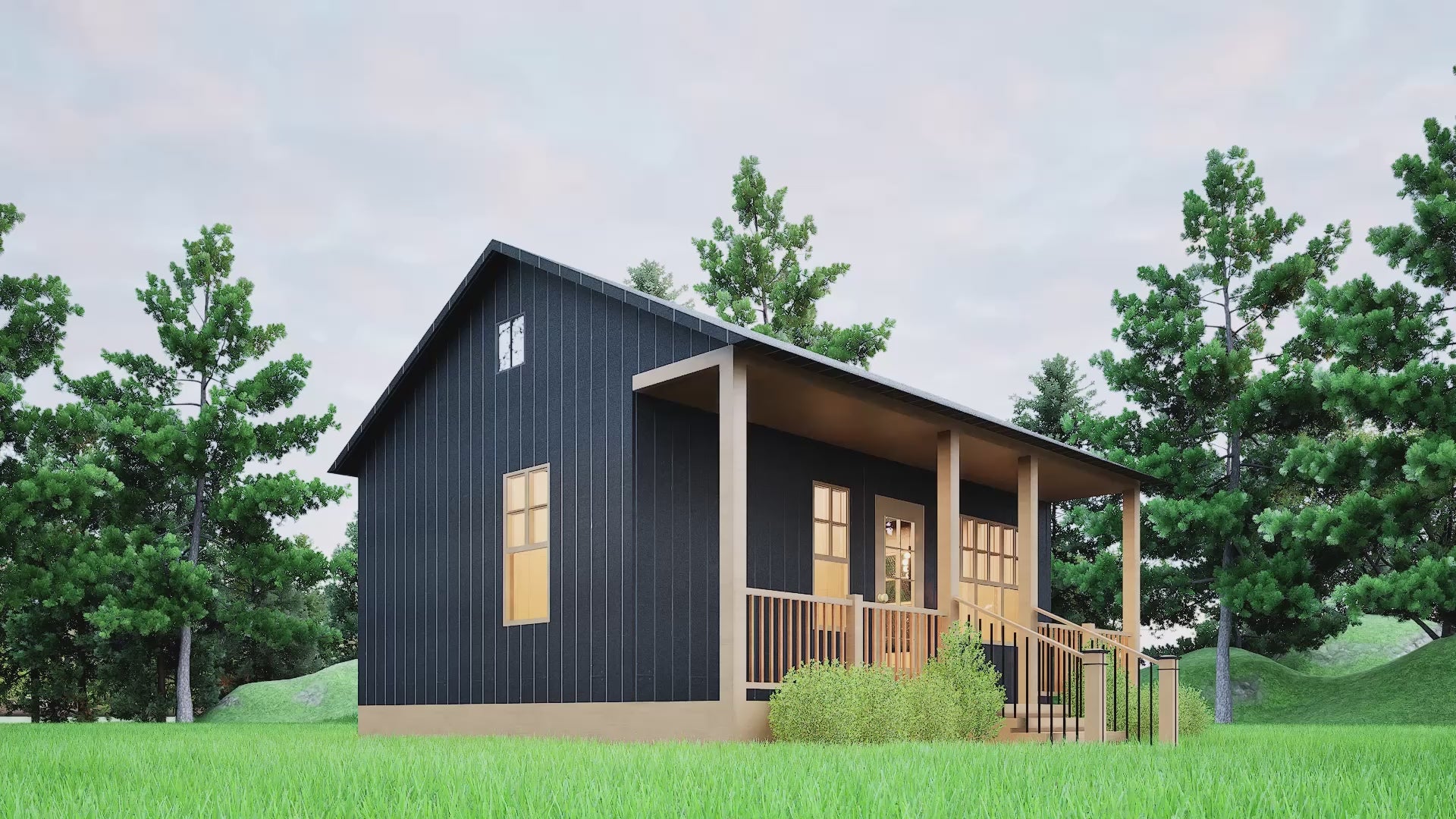

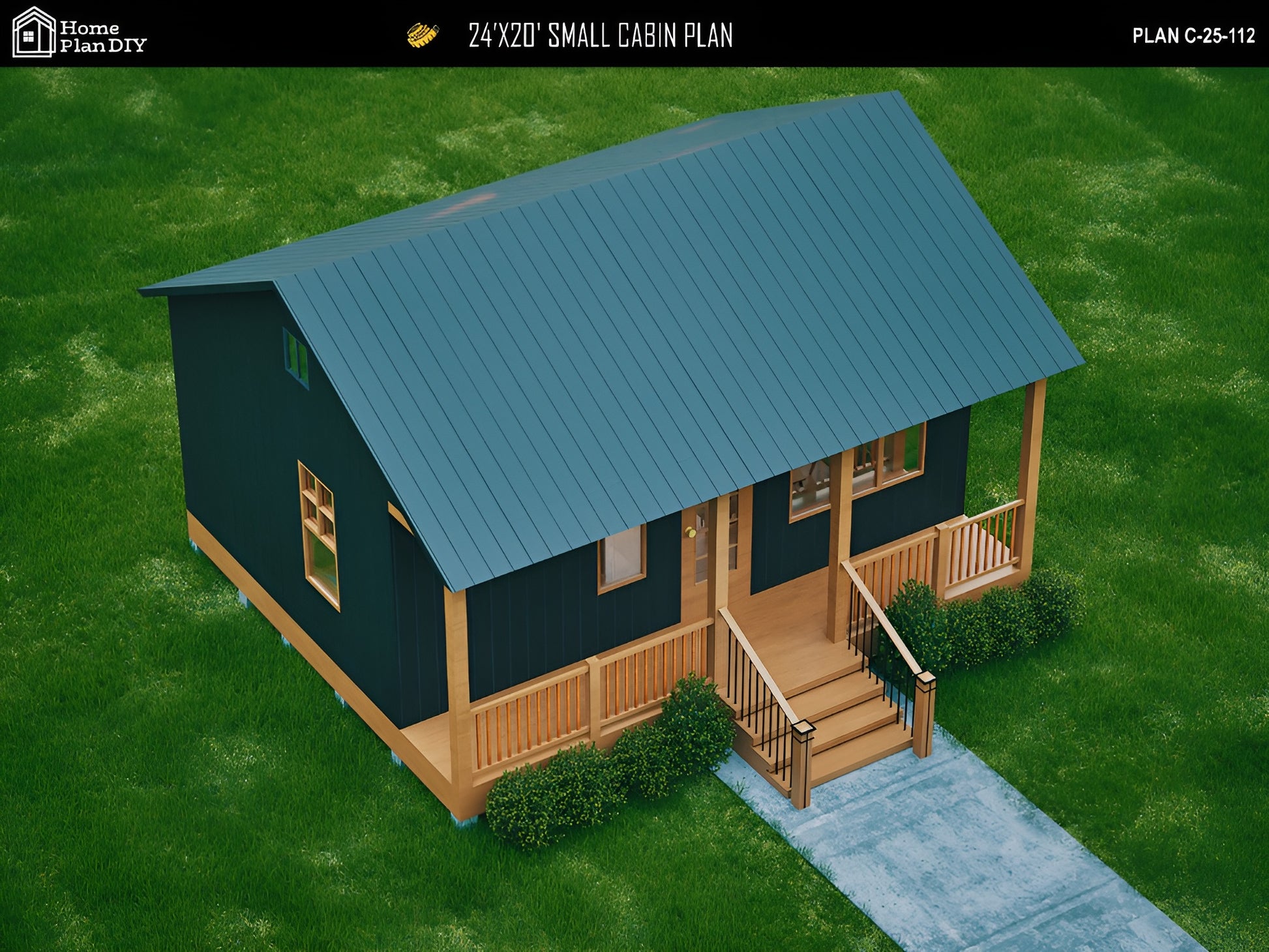

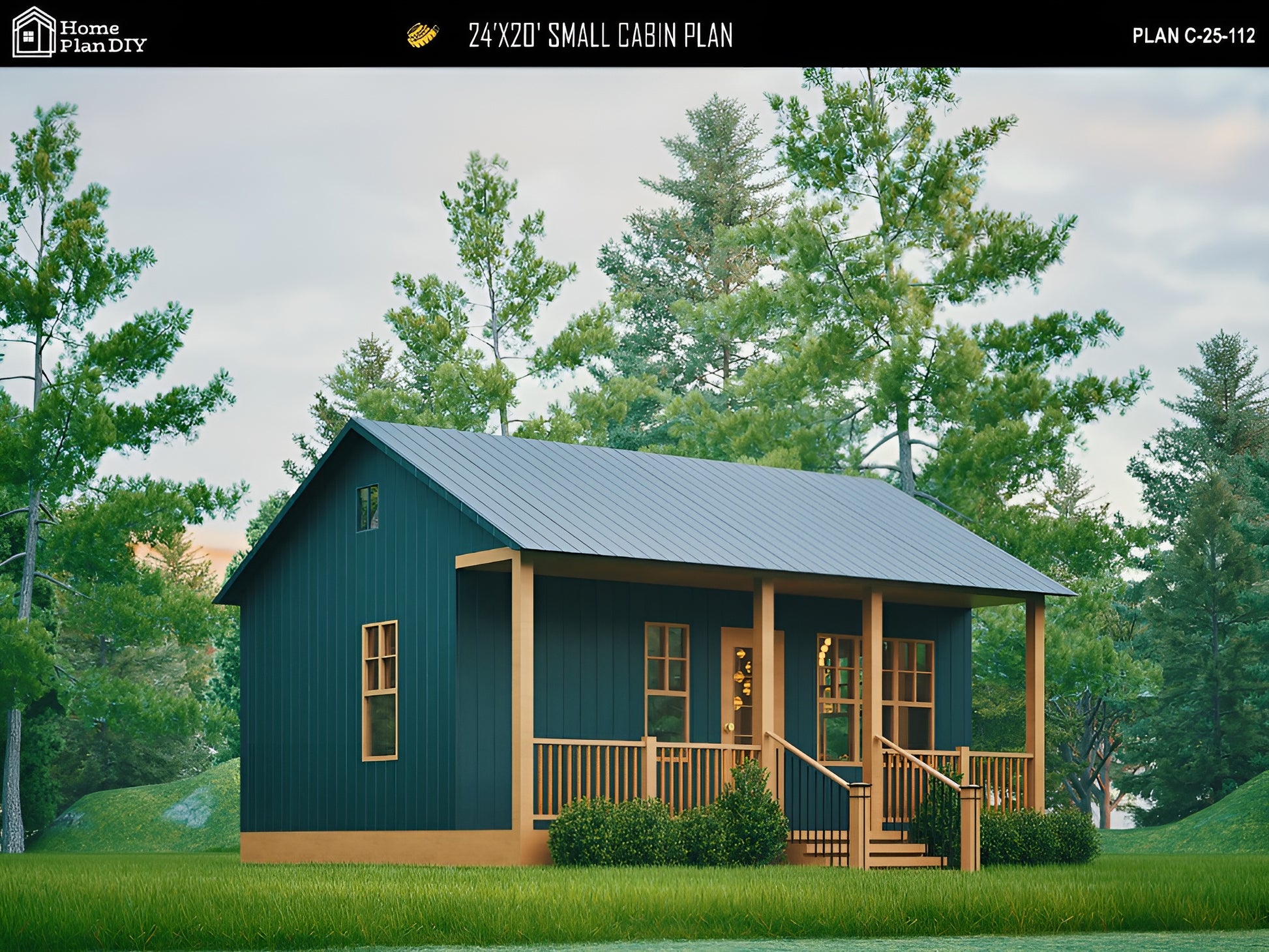

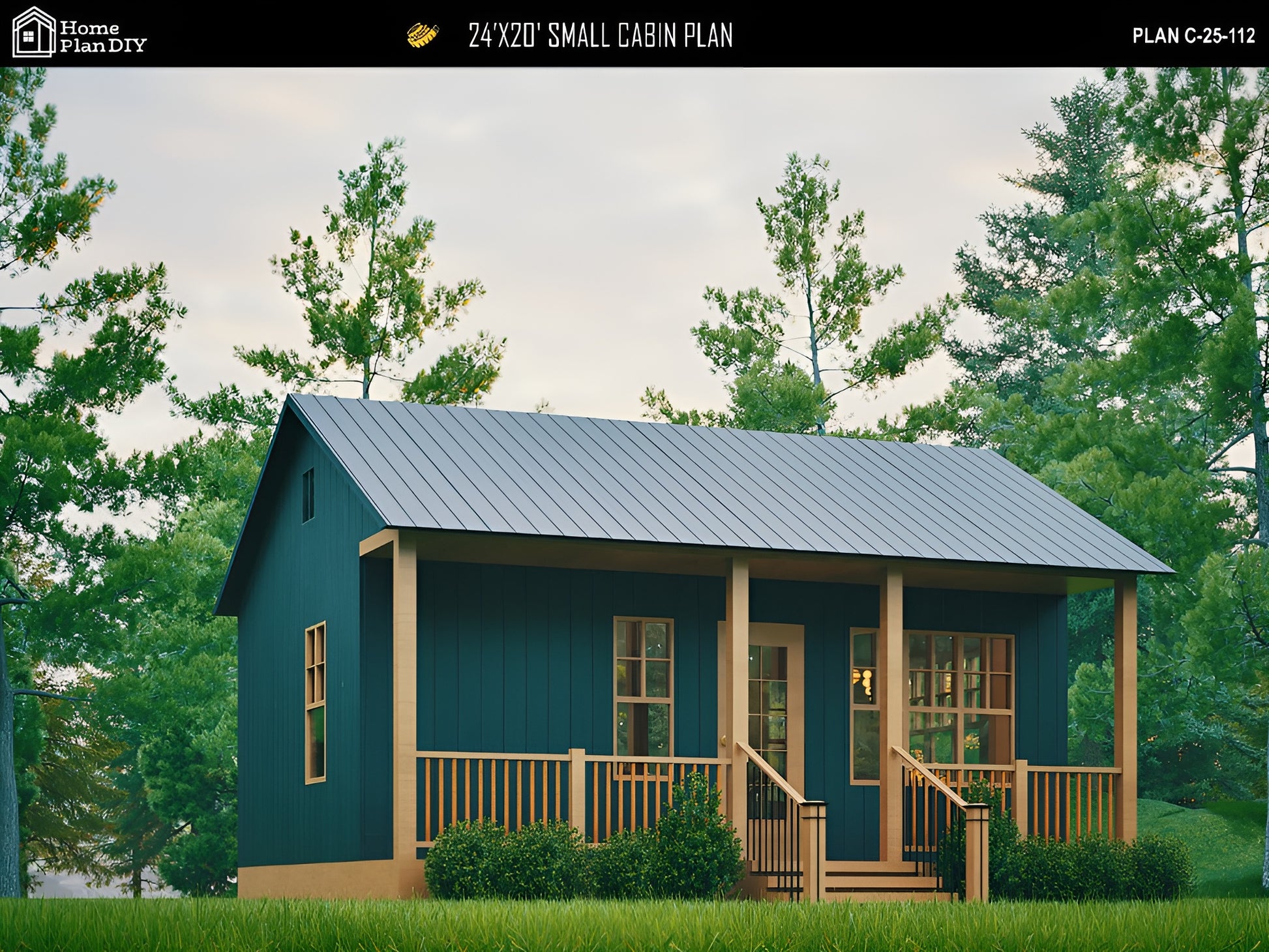

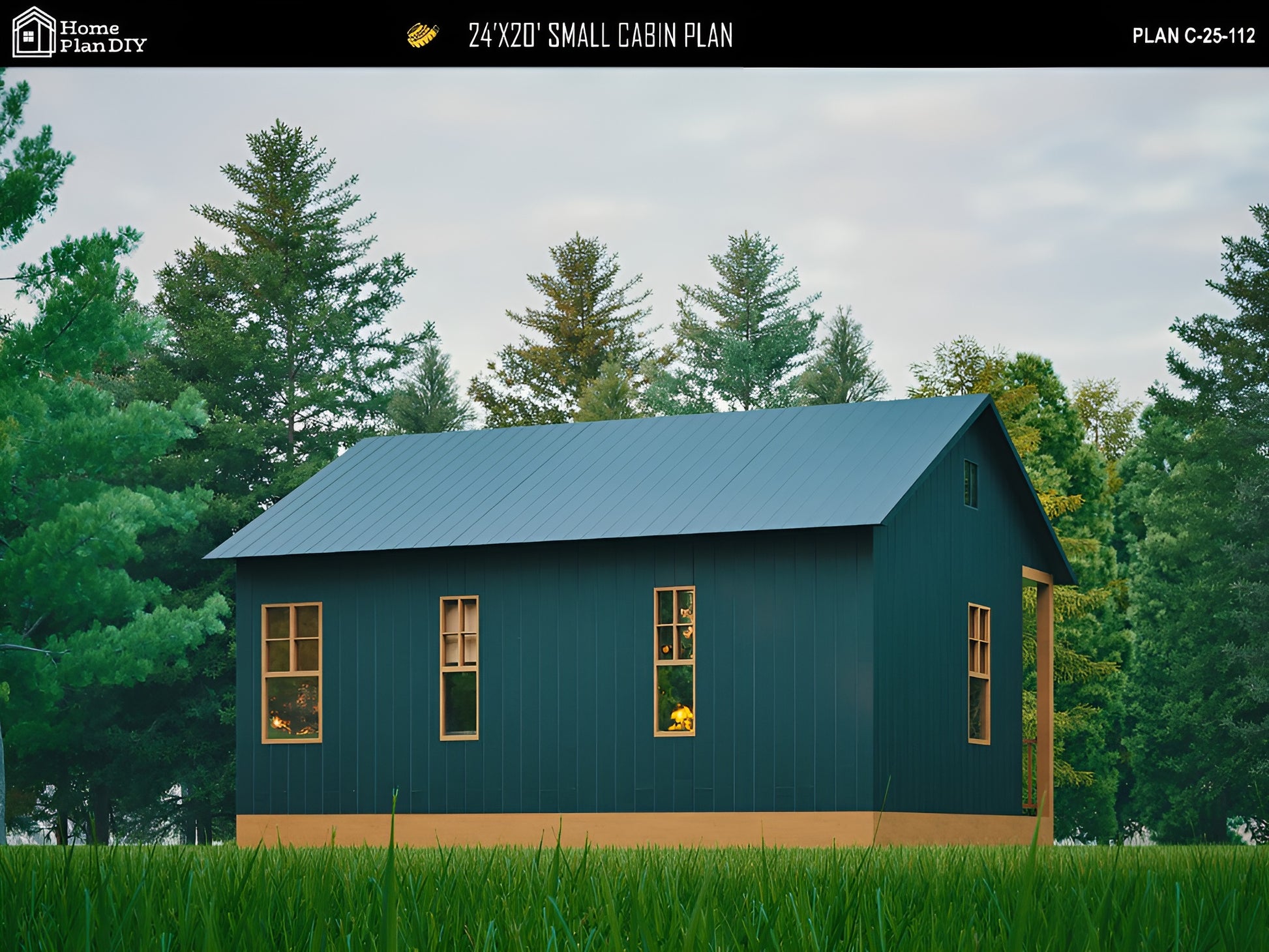

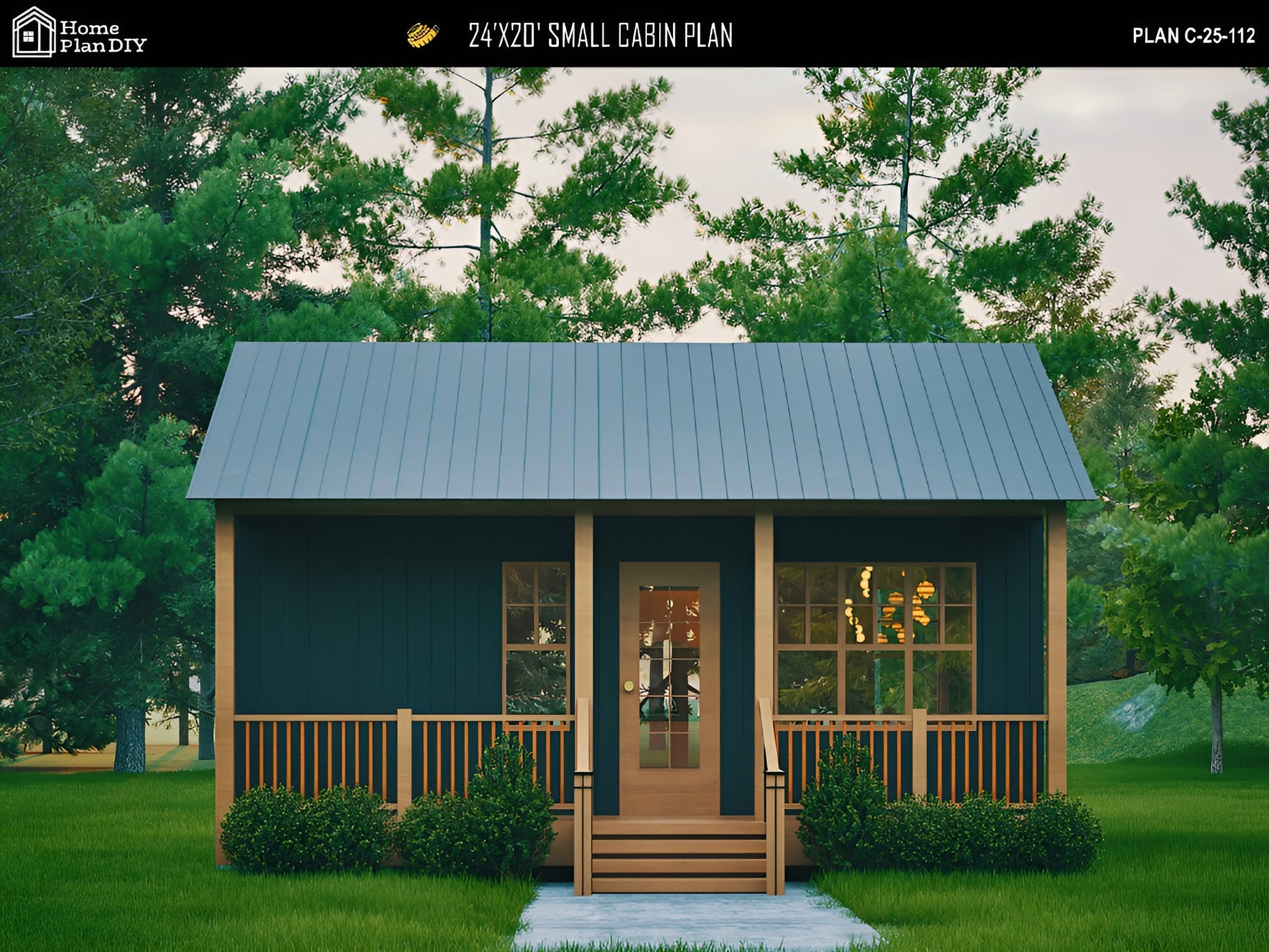

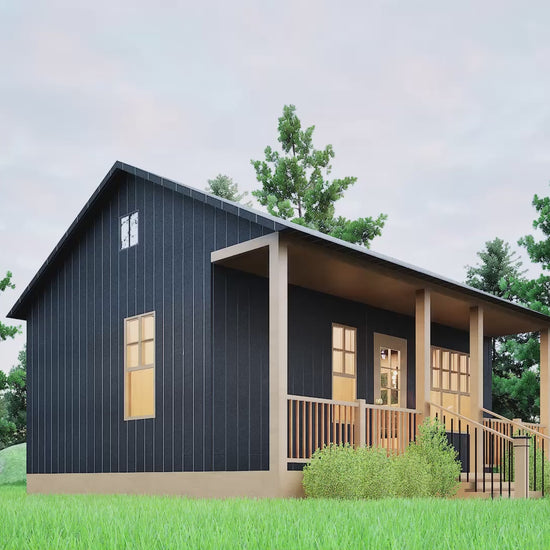

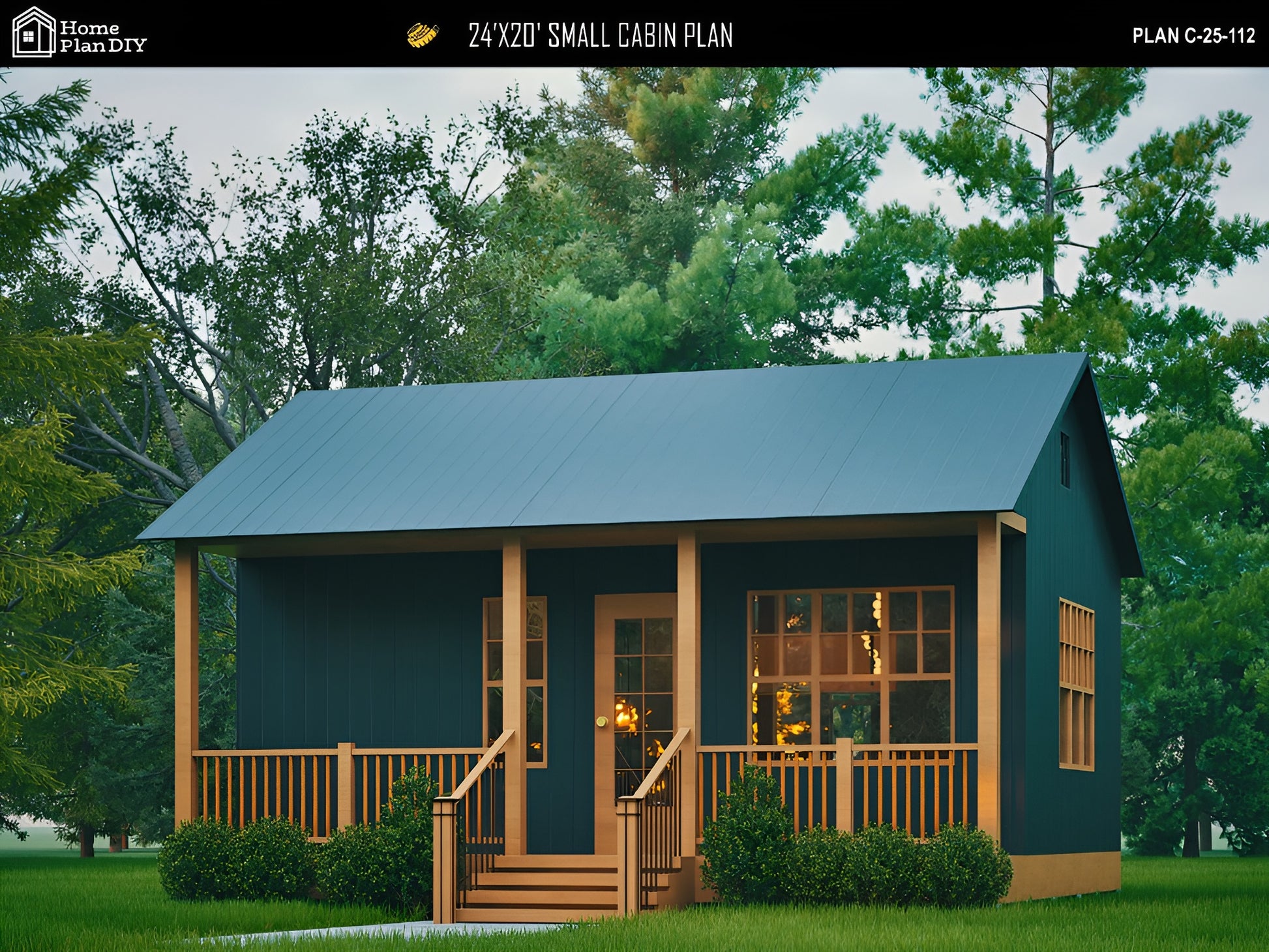

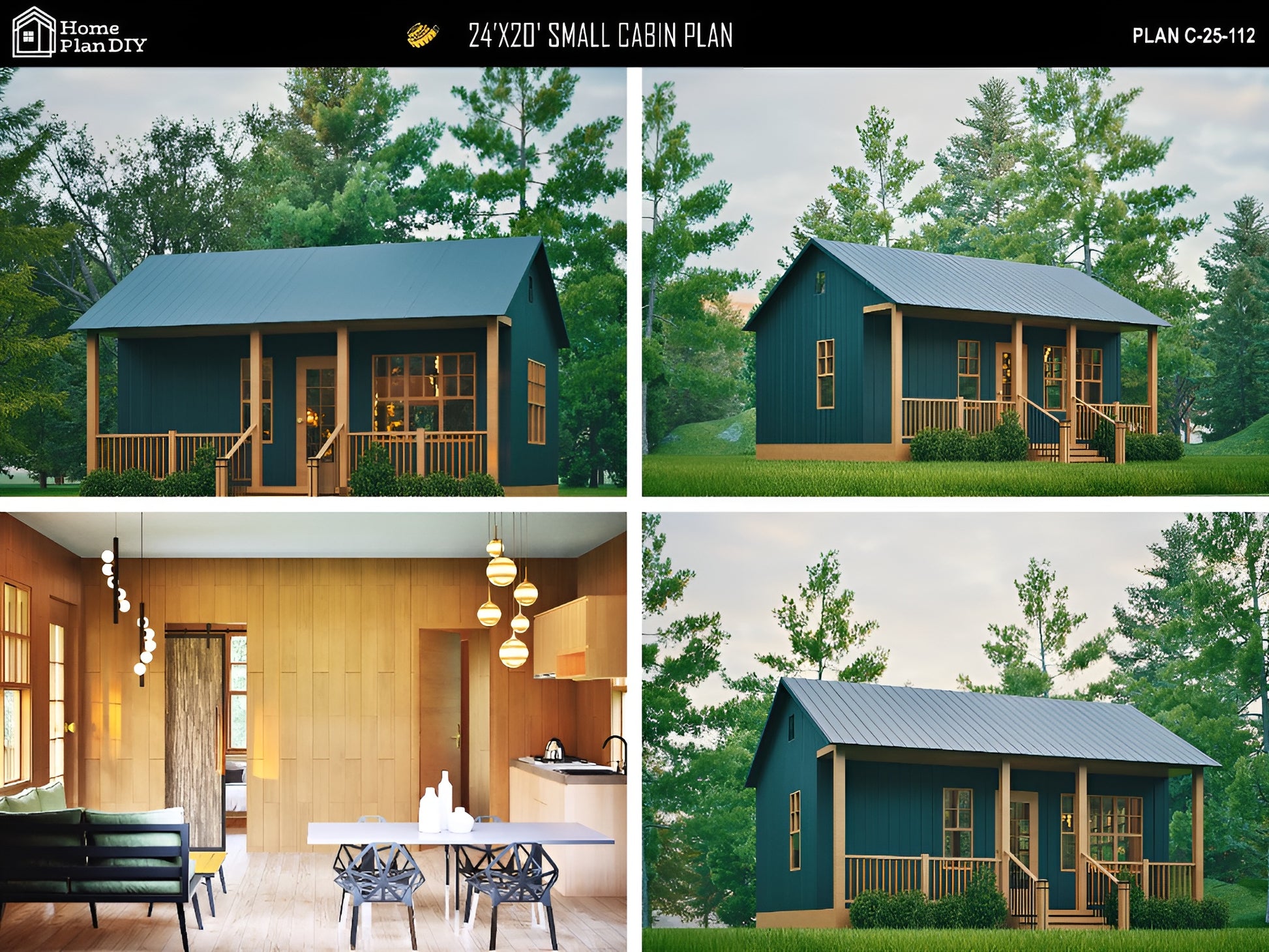

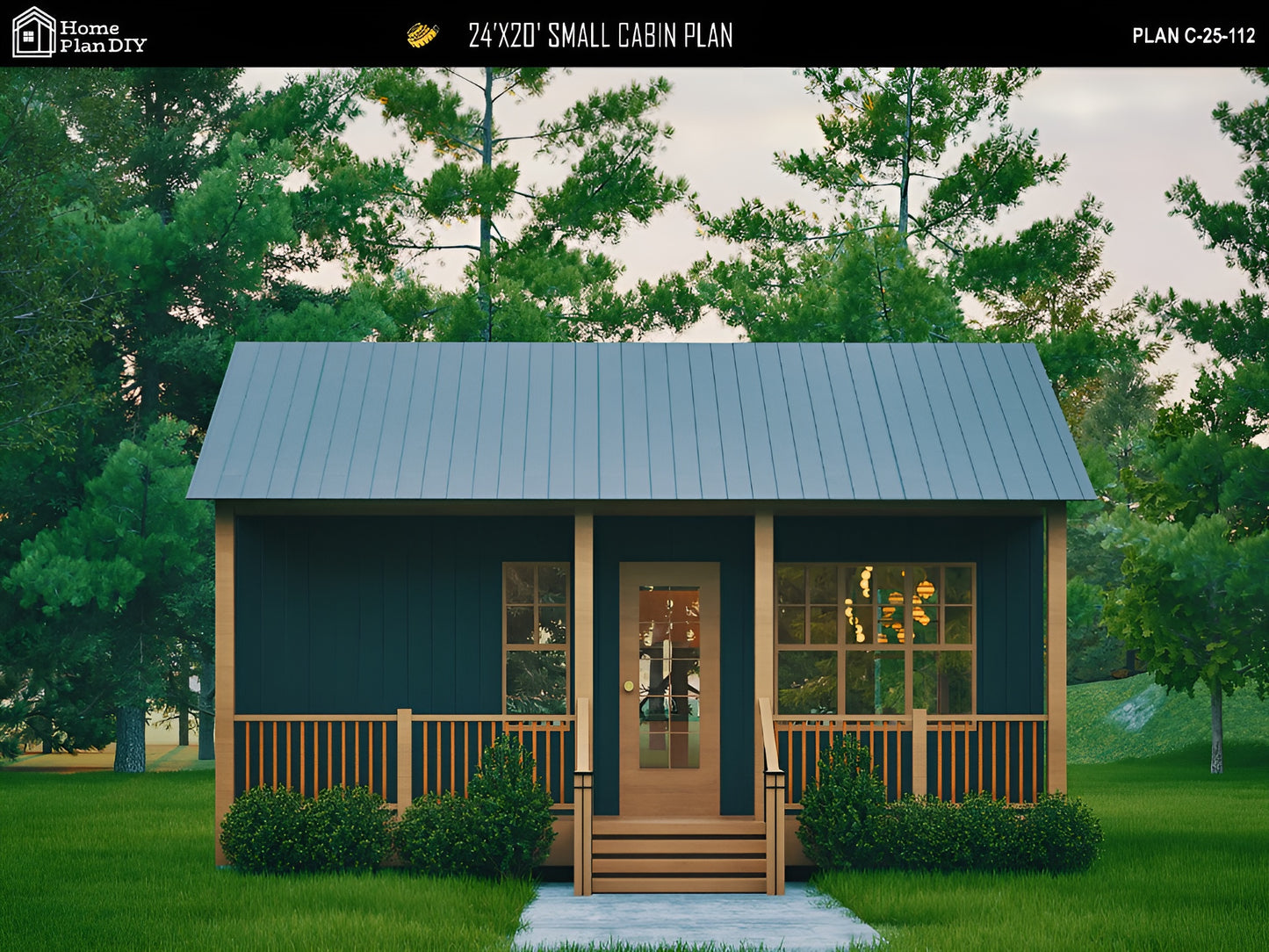

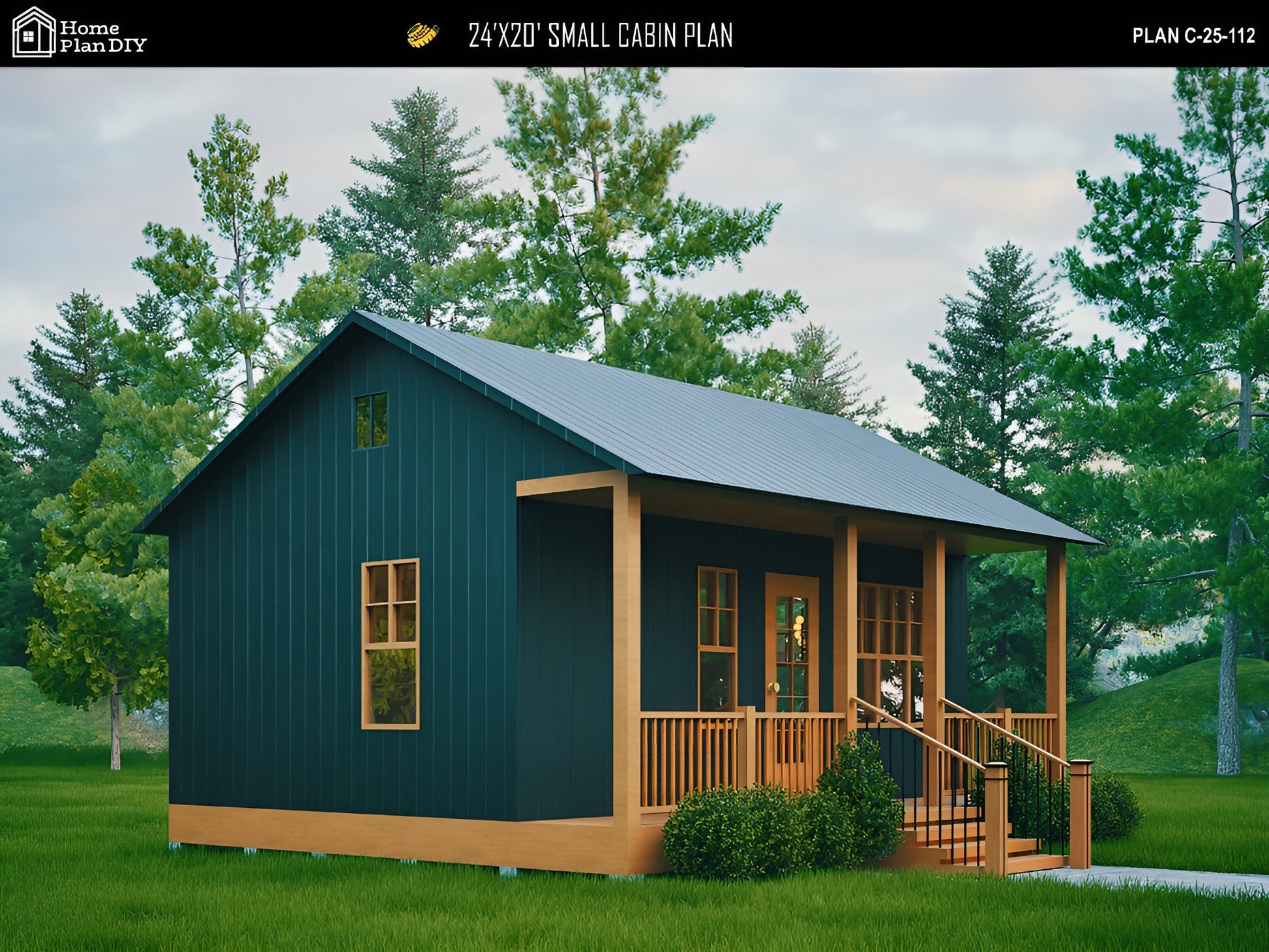

This charming modern cabin plan blends simplicity and warmth in a compact 24′ x 20′ footprint. Featuring post-and-beam style details, a classic gable metal roof, and large wood-trimmed windows, it’s a perfect balance of rustic and refined. Inside, you’ll find a bright open-concept living space with a full kitchen, one bedroom, and one bathroom, all within 480 sq. ft. Designed for efficiency and comfort, this cabin works beautifully as a guest house, backyard ADU, Airbnb retreat, or weekend getaway. With the included printable PDF plan set and editable CAD files, you can easily adapt or modify this design to fit your site and needs.
Floors: 1 | Bedrooms: 1 | Bathrooms: 1
- Dimensions: ● Width: 24 ft | ● Depth: 20 ft | ● Height: 16 ft 9 in
- Total Living Area: 480 sq ft
- Foundation: Concrete slab (with 2″ rigid insulation & perimeter drainage)
- Roof Type: Standing-Seam Metal Gable Roof
- Framing: 2×6 exterior wall construction
** This plan is customizable – please enquire
** CAD files are available – For Free (limited time only)
>>> KEY FEATURES >>>
- Total Area: 480 sq ft compact footprint
- One Bedroom + One Bath: Perfect for full-time or guest living

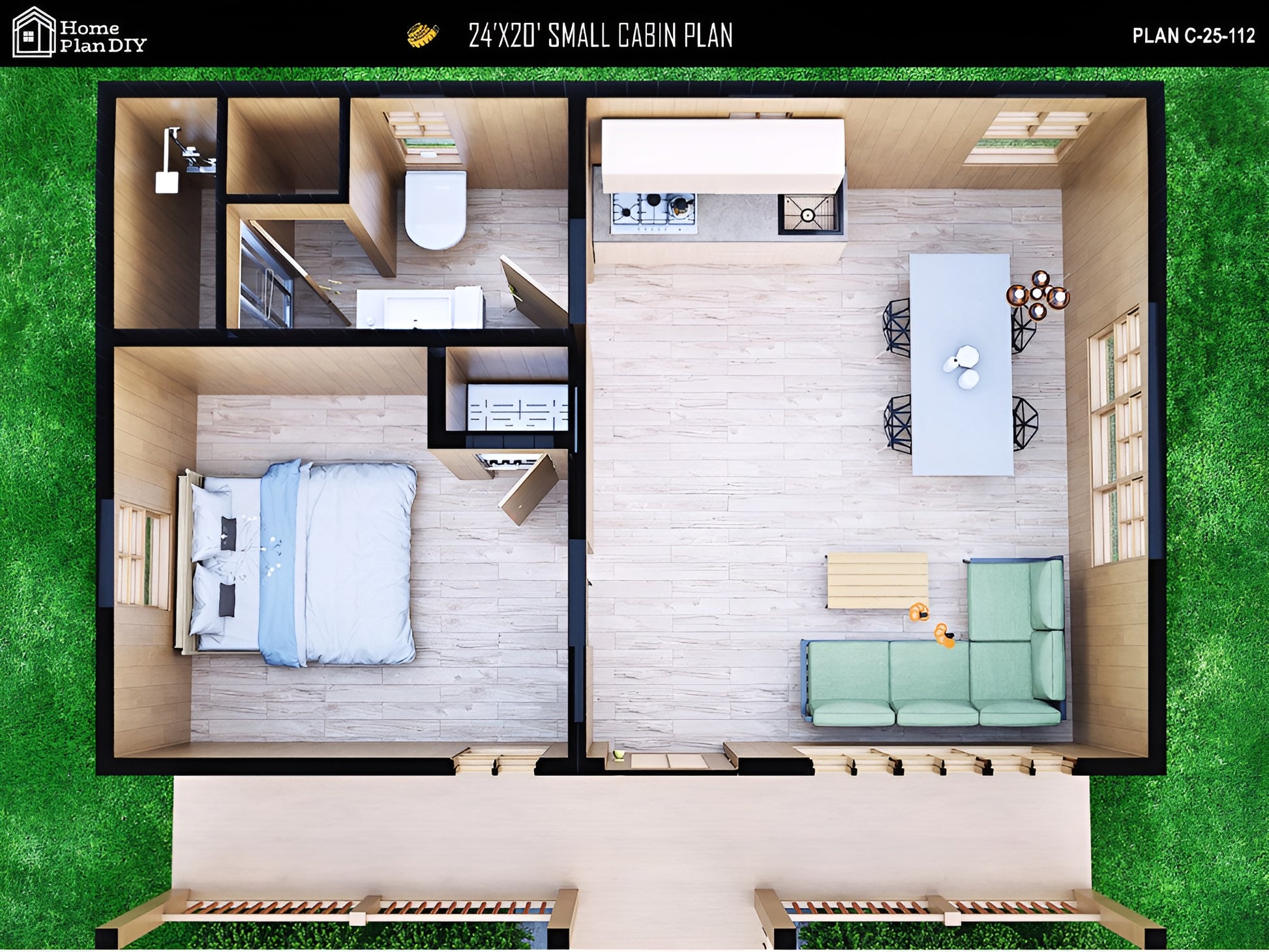

- Living / Dining: 12′ 7″ × 15′ 2″ open-concept plan
- Kitchen: Functional galley-style with full appliances
- Bathroom: Spacious 10′ 2″ × 5′ 4″ layout
- Front Porch: 24′ × 4′ covered entry for outdoor relaxation
- Roof Style: Dual-slope Gable Roof with black standing-seam metal panels

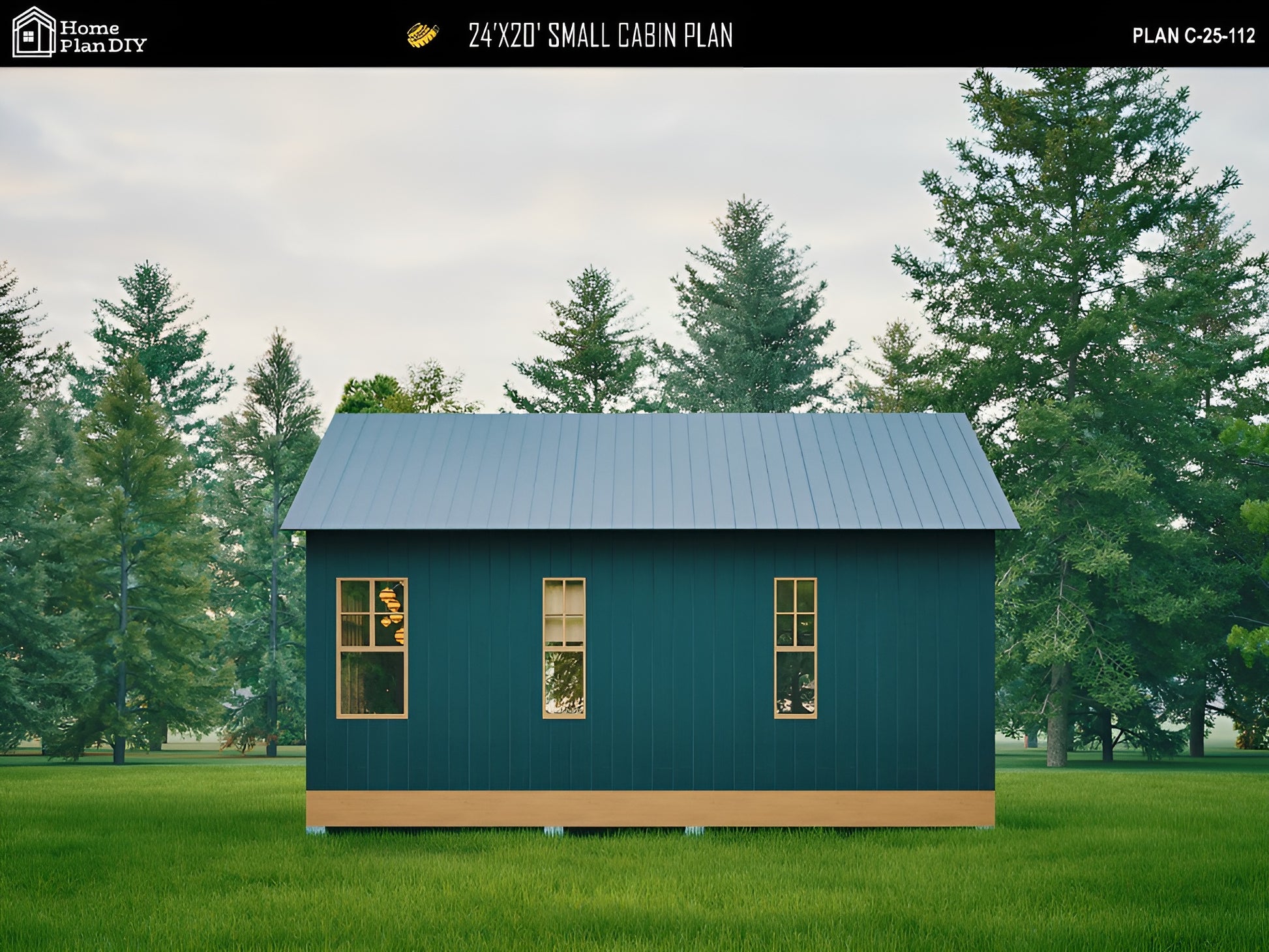

- Exterior Siding: Vertical board-and-batten, Evening Blue finish
- Trim: Natural oak tone for a warm contrast
- Energy Efficiency: R-19 wall insulation / R-38 ceiling insulation
- Ideal Use: Cabin, studio, backyard ADU, or short-term rental

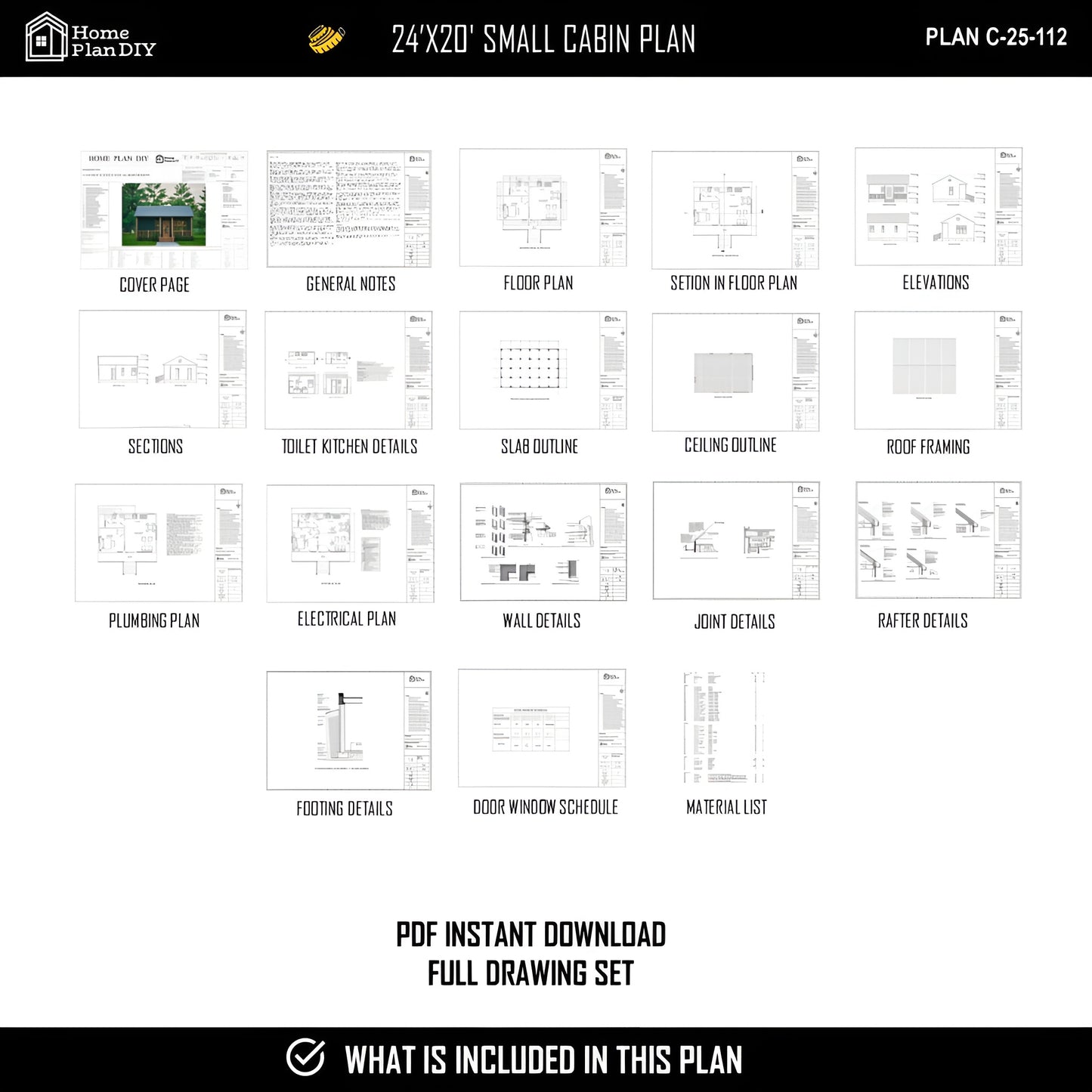

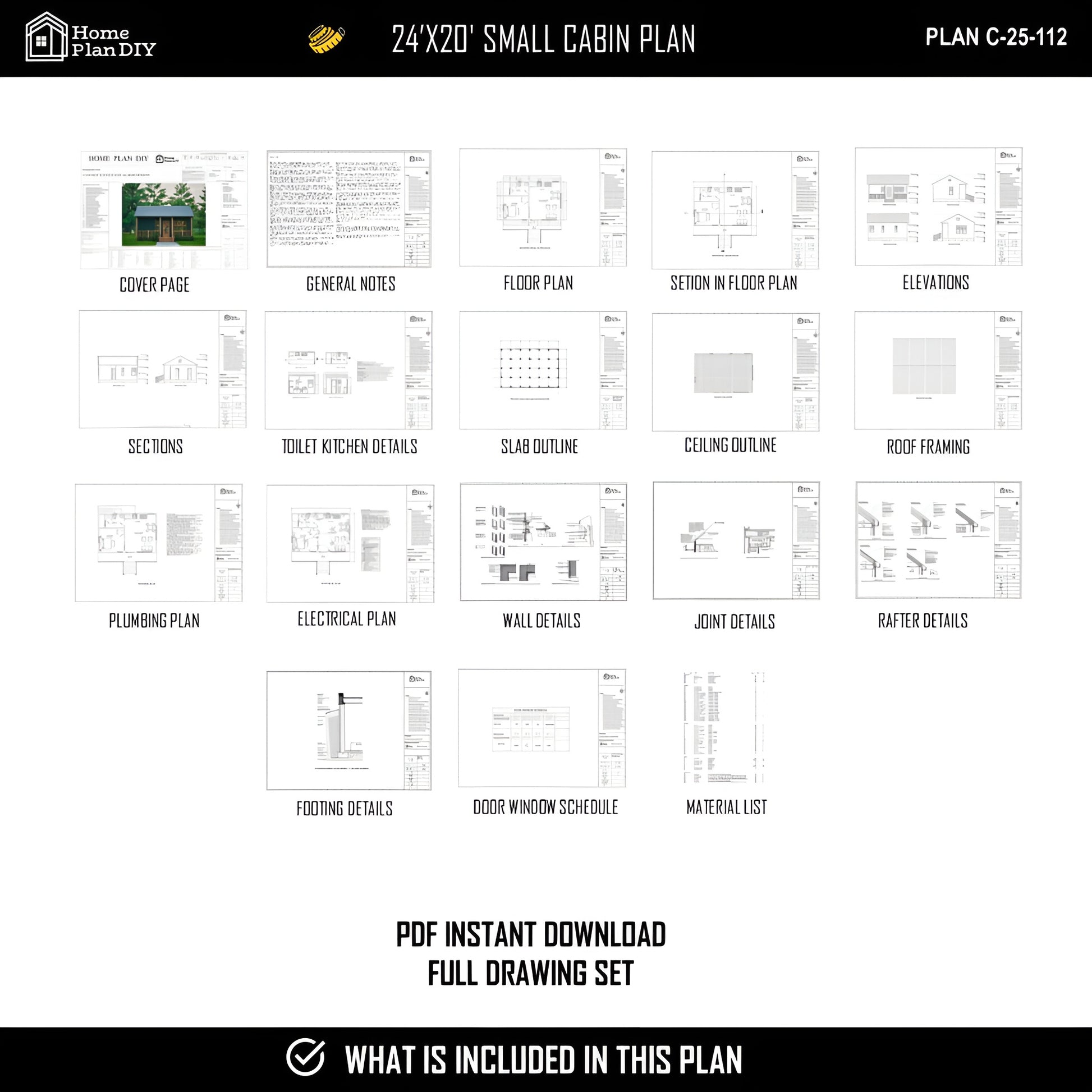

>>> DRAWINGS INCLUDED >>>

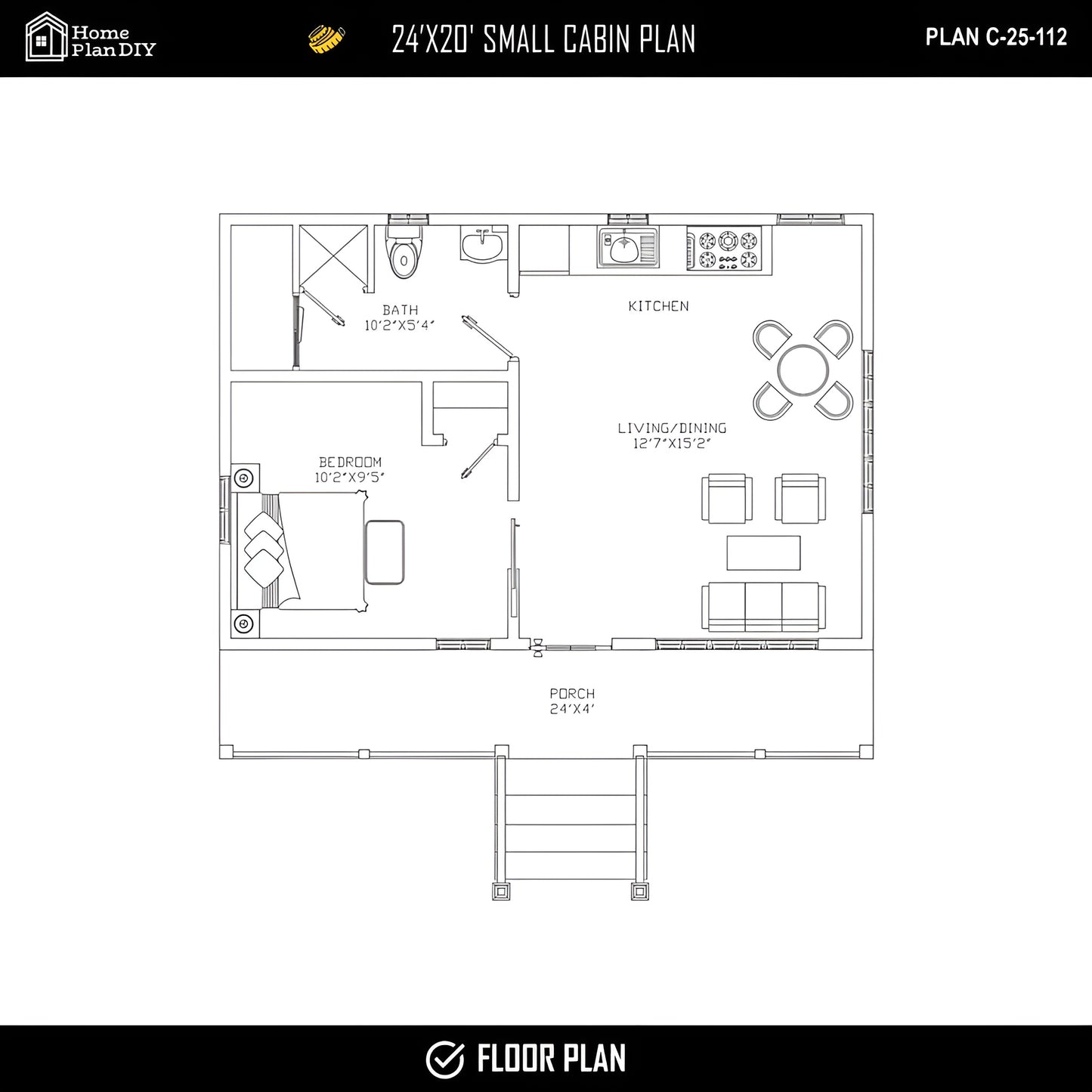

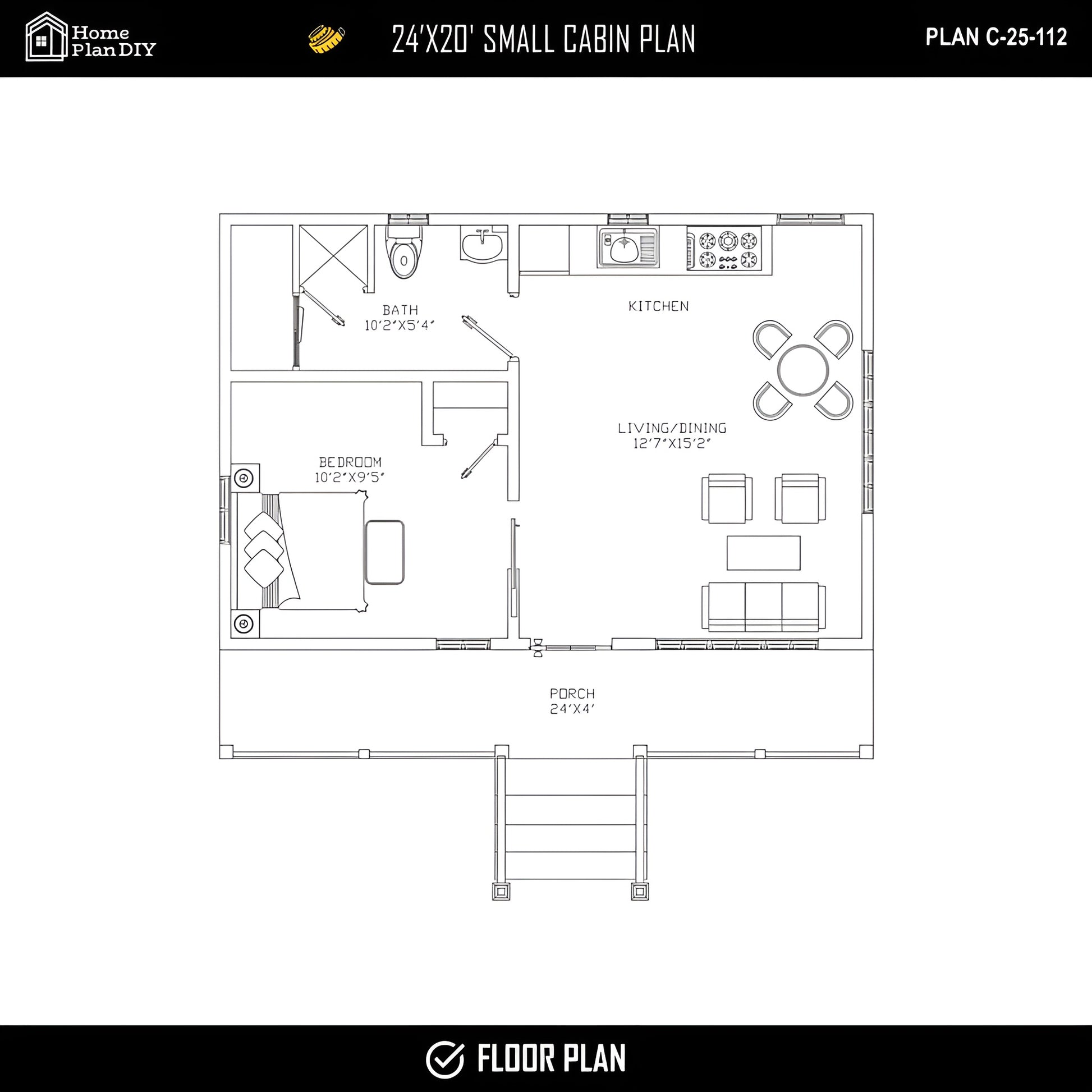

- Ground Floor Plan
- Foundation / Slab Plan
- Ceiling Layout
- Roof Outline (Gable Roof)

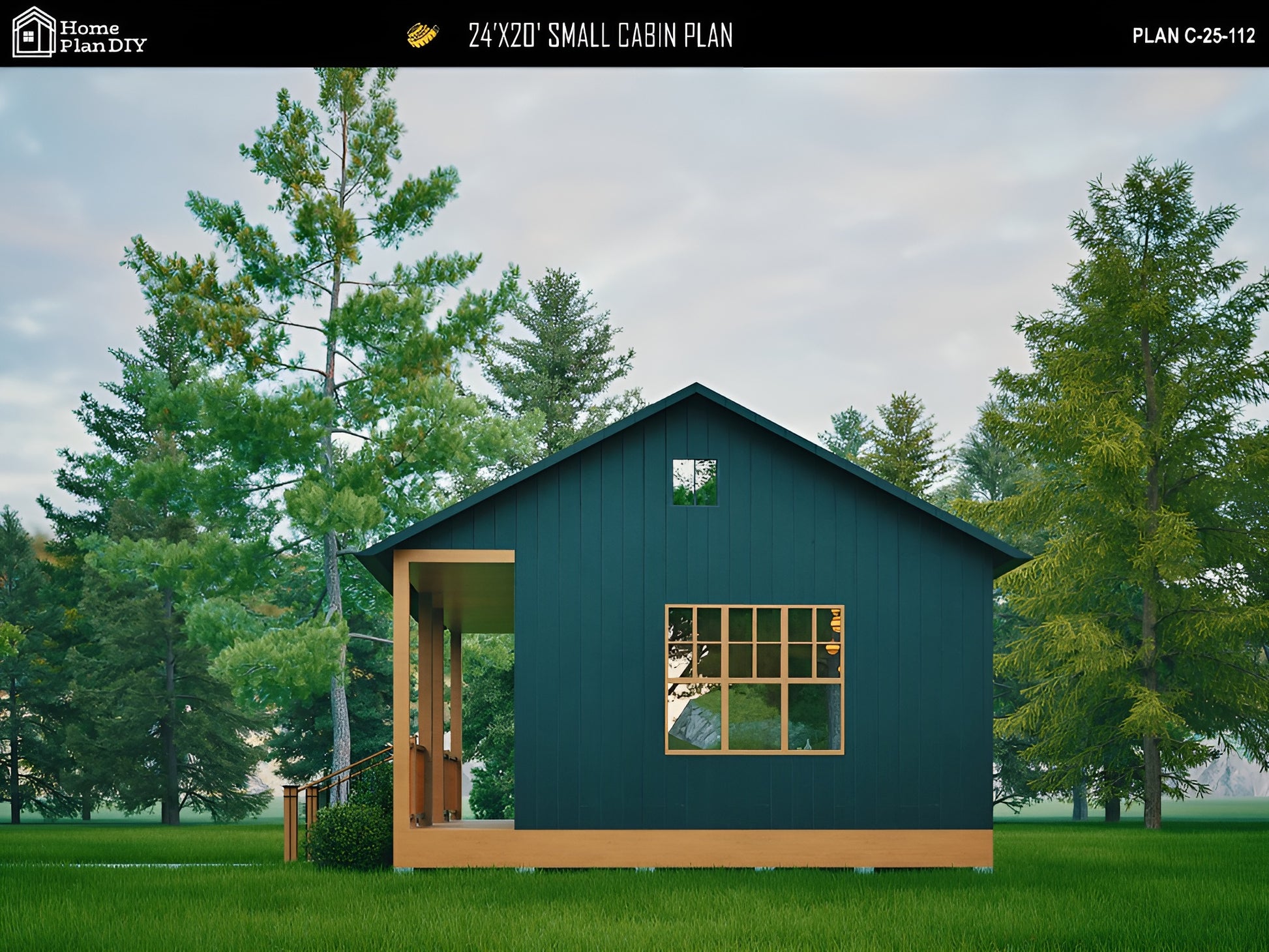

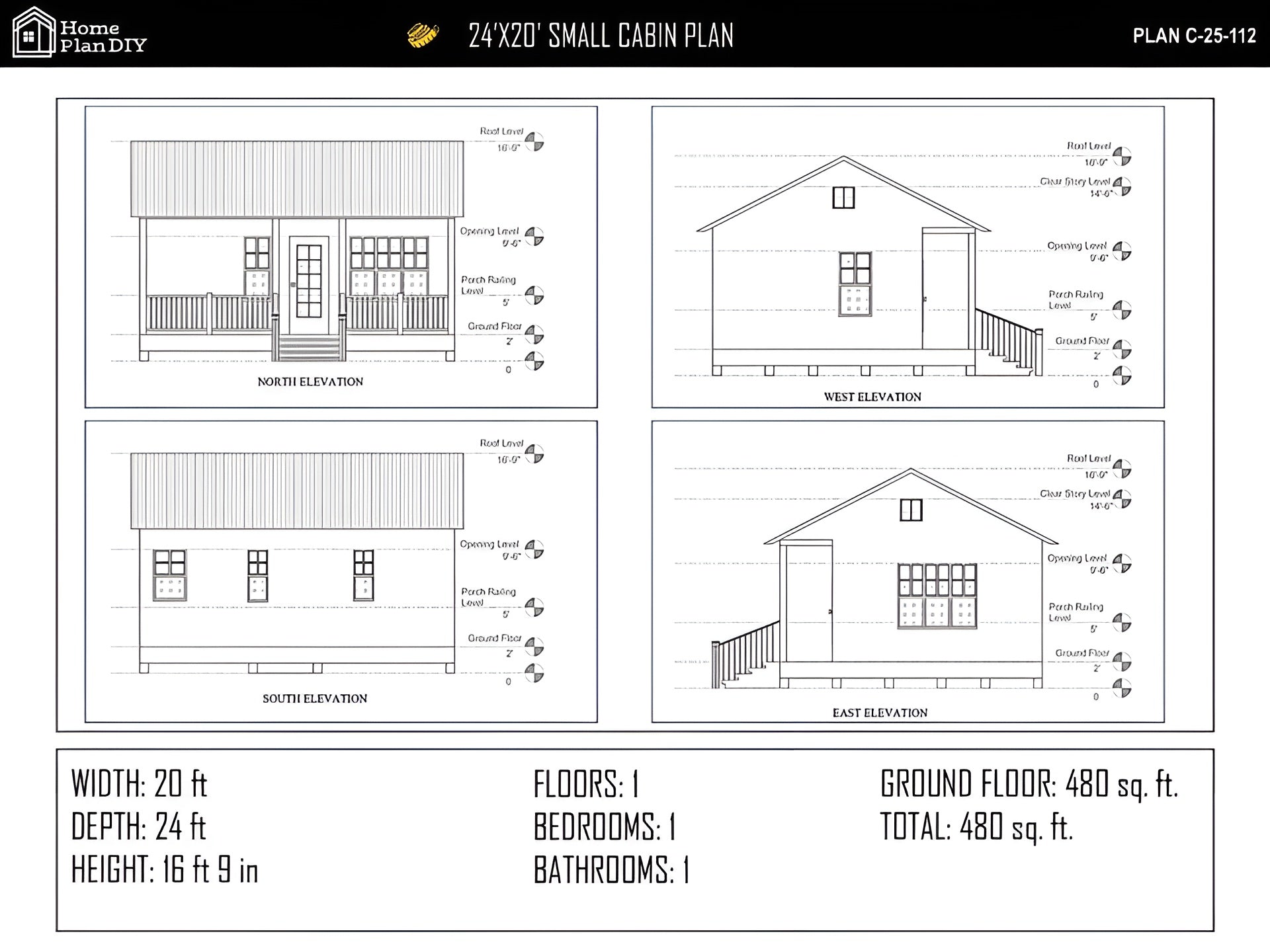

- Elevations (Front, Rear, Left, Right)
- Sections (A-A′, B-B′)
- Electrical Plan
- Plumbing Layout
- Door & Window Schedule
- Kitchen and Bath Details
- Framing Details
- Insulation Layout
- Material List & Finish Schedule
- Construction Notes
>>> ROOM DIMENSIONS >>>
- Living / Dining — 12′ 7″ × 15′ 2″
- Kitchen — Open layout
- Bedroom — 10′ 2″ × 9′ 5″
- Bathroom — 10′ 2″ × 5′ 4″
- Porch — 24′ × 4′
>>> ESTIMATED BUILD COST >>>
Approx. $55,000 – $85,000 USD, depending on materials, labor, and region.
(Excludes permits, site prep, and appliances.)
>>> WHY CHOOSE THIS CABIN PLAN >>>
- Classic gable roof design for timeless charm
- Compact size = low building cost
- Perfect for Airbnb, studio, or tiny home living
- Easy-to-build foundation and framing
- Detailed, builder-friendly plan set
- Editable CAD files included for modifications
>>> PRINTABLE DIGITAL DOWNLOAD >>>
- Instant access — no physical item shipped
- Includes high-quality PDF + editable CAD files
- Print at A1 / 24×36 inch scale at any local print shop
- Works for permit review, builder submission, or DIY planning
>>> RETURN POLICY >>>
Digital downloads are non-refundable.
Please review all plan details, dimensions, and images before purchase.
>>> IMPORTANT NOTES >>>
● Digital Download Only ( No Physical Item Shipped )
● For Personal Use Only ( Not for Resale or Redistribution )
● No Engineer’s Stamp Included
● Construction results depend on site conditions and builder methods
● © Home Plan DIY ( All rights reserved )
>>> COPYRIGHT NOTICE >>>
All plans, drawings, and renderings are the property of Home Plan DIY.
Redistribution, resale, or use for multiple builds without permission is prohibited.
Build your dream small home today! This 24′ × 20′ Gable Roof Modern Cabin Plan is designed to bring comfort, beauty, and simplicity together, perfect for your next backyard build, rental, or countryside retreat.
