Plan C-25-112: 24'x20' Small Cabin Floor Plan 1 Bed 1 Bath, 480 sq ft

Name: Plan C-25-112: 24'x20' Small Cabin Floor Plan 1 Bed 1 Bath, 480 sq ft
Brand: Home Plan DIY
SKU: 25112
Price: 449.0 USD
Availability: InStock

$449.00

PDF + CAD/DWG + RVT + SKP · All formats included

Instant Download

Full Plan Set

Customisation

Live Help

Secure Checkout & Instant Download

Tiny cabin floor plan with 1 bed, 1 bath, open living and kitchen, clearstory gable roof, covered front porch, and cedar siding on a slab with pier foundation. 480 sq ft.

About This Plan

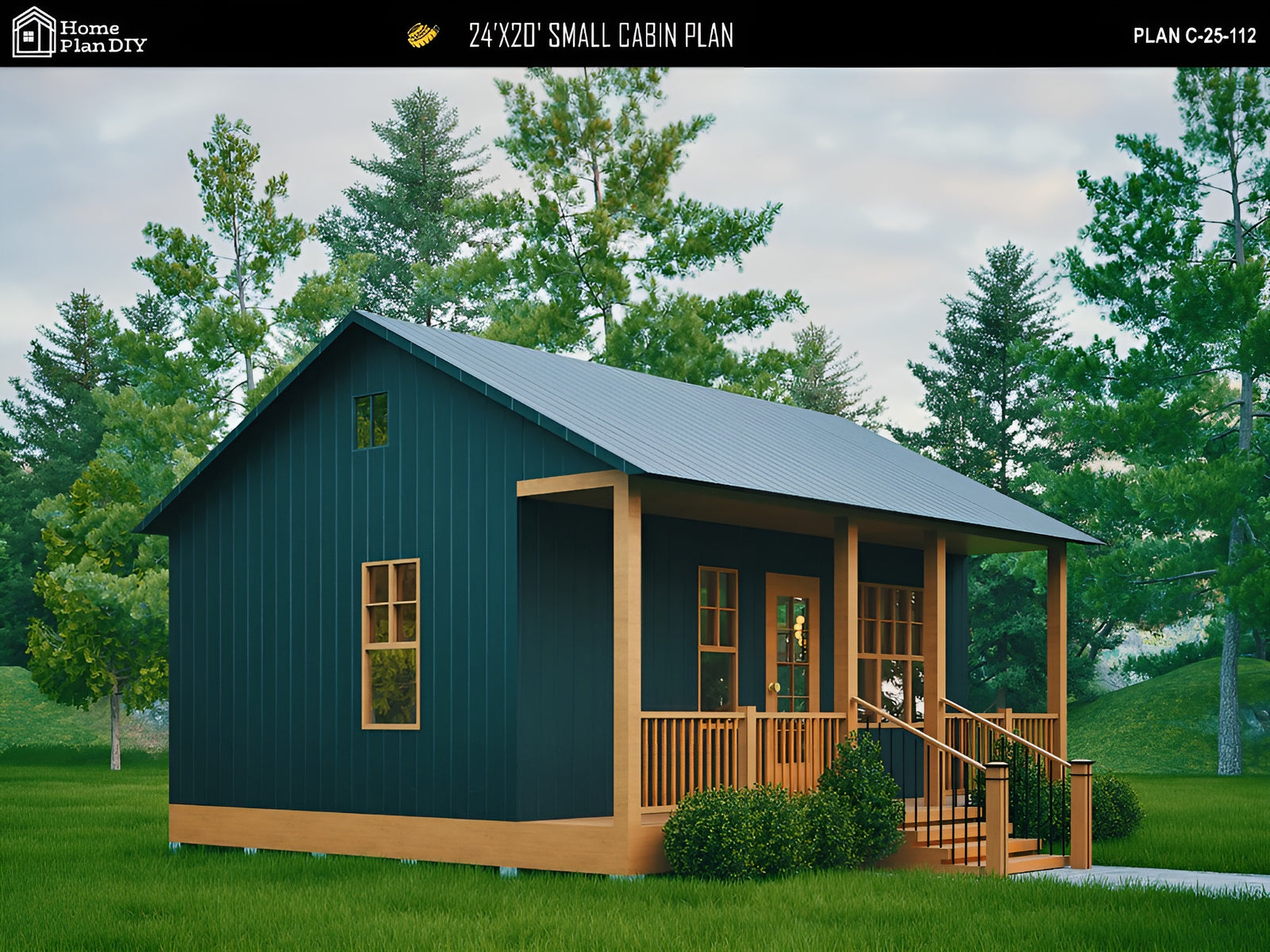

This 24'x20' small cabin floor plan delivers 480 sq ft of single-story living in one of the most compact and buildable layouts in the Home Plan DIY collection. The open living and dining area at 12'x15'2" runs across the center of the plan, connecting directly to the kitchen and creating a warm, light-filled common space. The bedroom at 10'x9'5" is tucked to one side with a full bathroom at 10'x5'4" and barn door access keeping the layout efficient without feeling cramped. A covered front porch spanning the full 24-foot width at 4 feet deep provides an outdoor entry that gives the home an unmistakably cabin-style presence. The clearstory gable roof adds dramatic interior height, lifting the ceiling from 9 ft 6 in at the walls to 14 ft 6 in at the peak, which makes the open living zone feel significantly larger than the footprint suggests.

Built on a concrete slab with pier footings, this plan uses 2x6 wood framing with cedar tongue and groove siding on a rain screen assembly. The gable roof features a clearstory band of windows and is clad in black corrugated metal, with cedar T&G ceiling soffit detailing. The foundation detail includes closed cell SPF insulation, termite shield, and perimeter drainage for long-term performance. The 24-foot width and shallow 20-foot depth make this one of the most site-flexible plans in the catalog, well suited to narrow lots, small parcels, and tight rural sites.

Whether you are planning a vacation cabin, a short-term rental, an accessory dwelling unit, or a minimalist primary residence, this complete 22-sheet drawing set gives you everything needed to begin construction. Sheets cover the floor plan, slab layout with load-bearing walls, ceiling and roof outlines, all four elevations, two sections, electrical and plumbing plans, kitchen and bath details, rafter and insulation details, window and door schedule, foundation details, and a full material list. Home Plan DIY does not provide engineer-stamped plans; buyers should verify local engineering and code compliance requirements independently. Some jurisdictions require a licensed architect or engineer to review and seal plans prior to construction. Available as an instant PDF and CAD download.

Details

Heated SQ FT

Total Heated Area 602 sq ft

First Floor 480 sq ft

Porch & Patio SQ FT

Total Porch/Patio Area 96 sq ft

Front Porch 96 sq ft

Bedrooms 1

Full Baths 1

Floors 1

Width 24 ft

Depth 20 ft

Height 16 ft 9 in

Foundation Slab/Pier

Exterior Framing 2x6

Ceiling Heights

First Floor 9 ft 6 in

What's Included in These Plans?

Complete Architectural Floor Plans
Loft & Open Living Space Layouts
Roof, Ceiling & Building Section Drawings
Exterior Elevations from All Sides
Kitchen & Bathroom Construction Details
Door, Window & Opening Schedules
Electrical & Plumbing Layout Plans
Wall, Rafter & Foundation Details
Material List for Construction Planning
Builder-Ready House Blueprints in PDF Format

What's Not Included

Site work, Landscaping, Permits, Utility connections, Appliances, Furniture . Some jurisdictions require a local engineer to review and stamp the plans. Check with your local building department before construction. . Some jurisdictions require a local engineer to review and stamp the plans. Check with your local building department before construction.

Estimated Build Cost

Range

$62,400 to $105,600

Per sq ft

$130 to $220

Final costs may vary significantly based on local market conditions, foundation requirements, utility connections, permits, and customization options. For the most accurate pricing, we recommend sharing the included plans and material list with local contractors or builders for detailed quotations.
