SQ FT

1120

BED

2

BATH

1.0

GARAGE

0

FLOORS

1.5

FOUNDATION

Pier

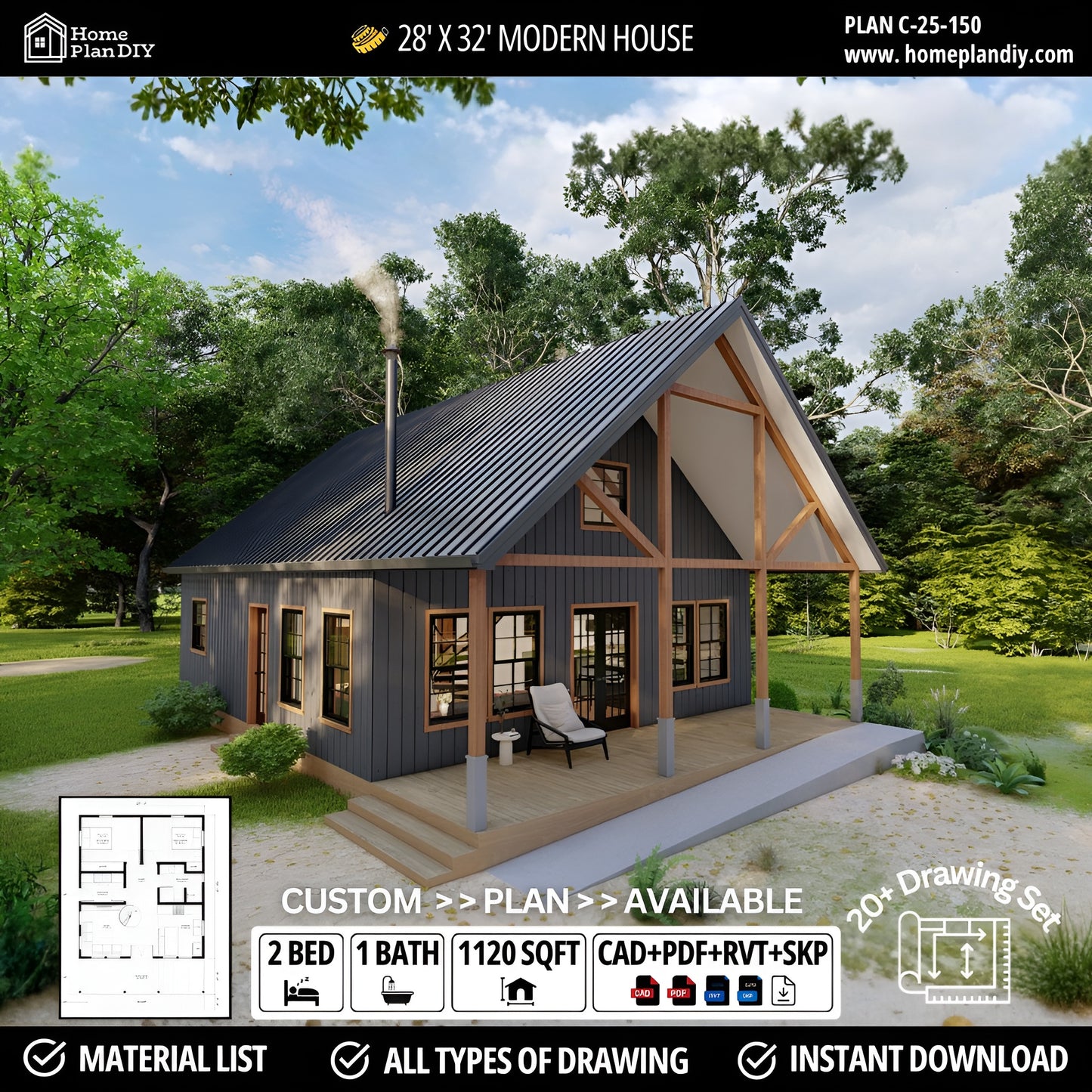

Plan C-25-150: 28'x32' Modern Cabin House Plan 2BR/1BA with Loft, 1,411 sq ft

Name: Plan C-25-150: 28'x32' Modern Cabin House Plan 2BR/1BA with Loft, 1,411 sq ft
Brand: Home Plan DIY
SKU: 25150
Price: 449.0 USD
Availability: InStock

$449.00

PDF + CAD/DWG + RVT + SKP · All formats included

Instant Download

Full Plan Set

Customisation

Live Help

Secure Checkout & Instant Download

Modern 1,411 sq ft cabin plan with 2 bedrooms, full loft, open living and kitchen, covered deck, and steep gable roof. PDF and CAD download.

About This Plan

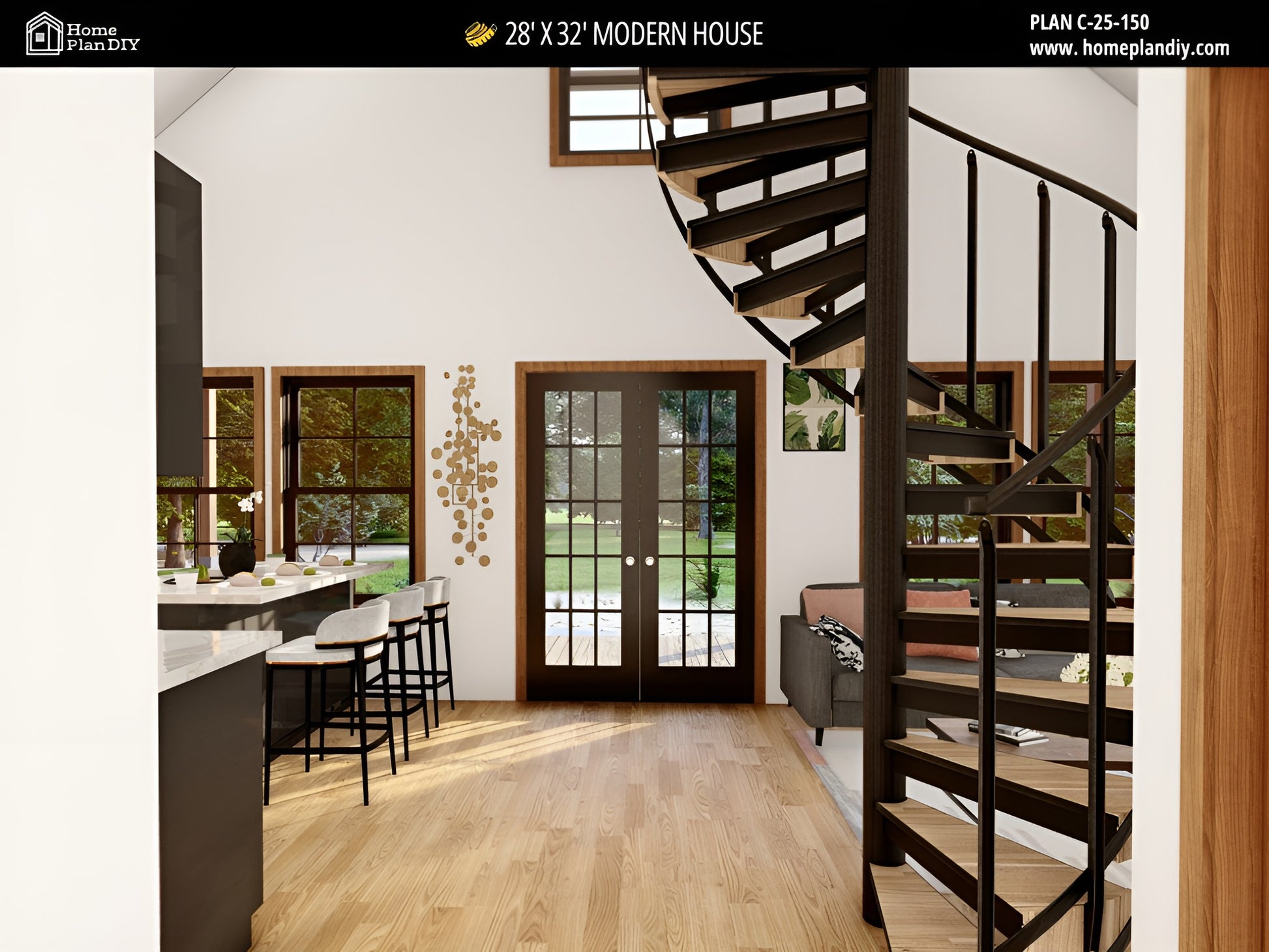

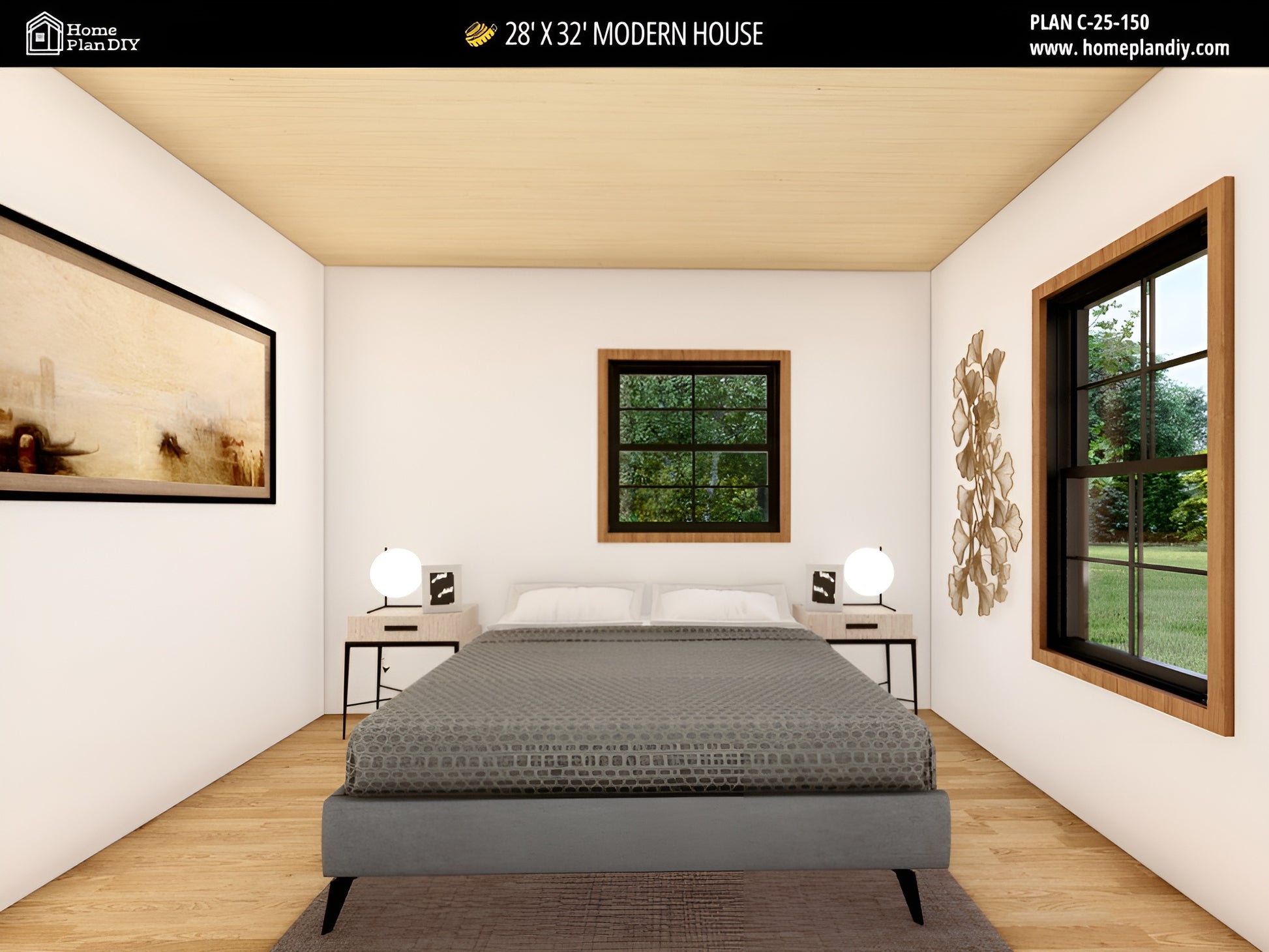

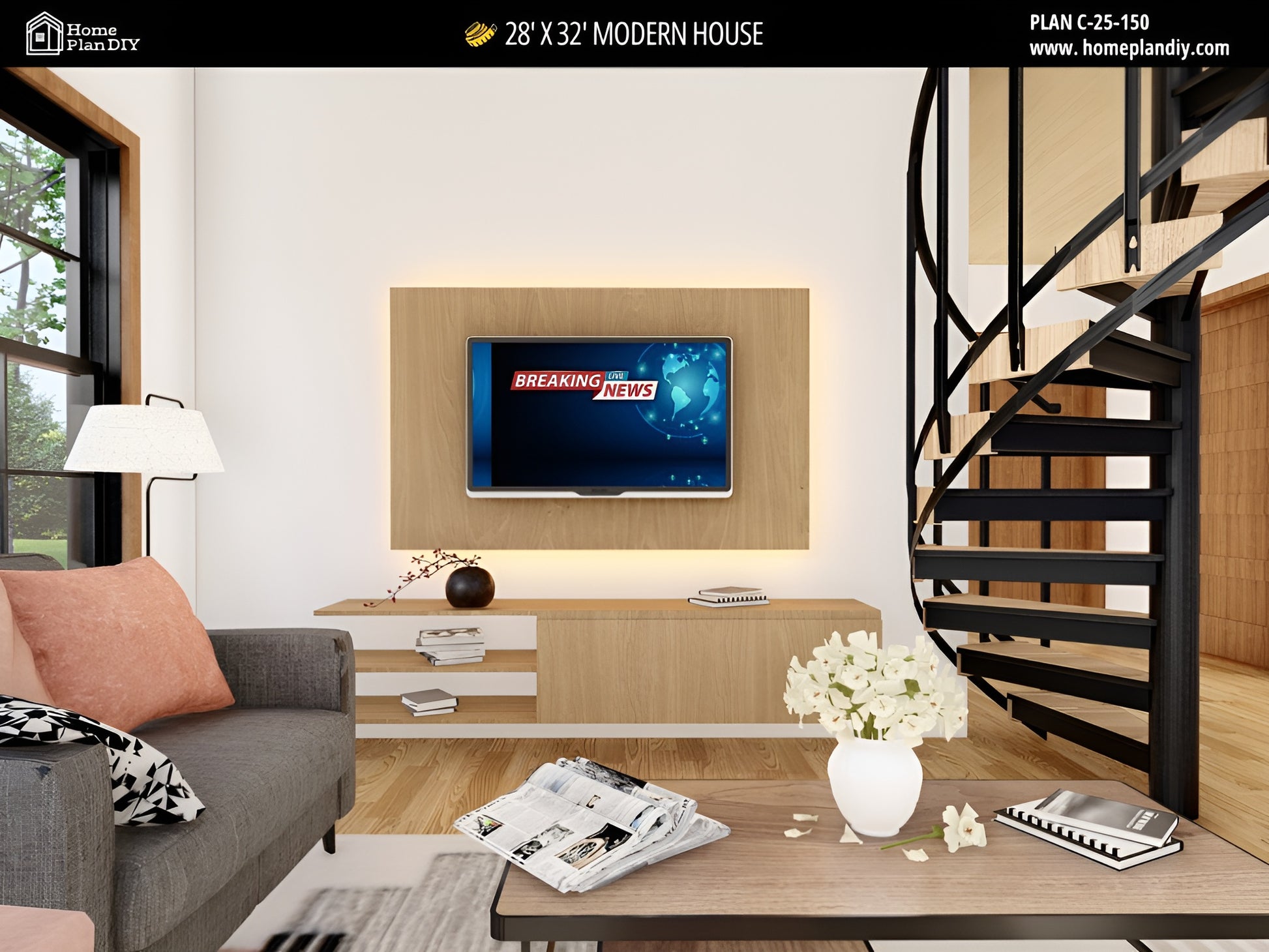

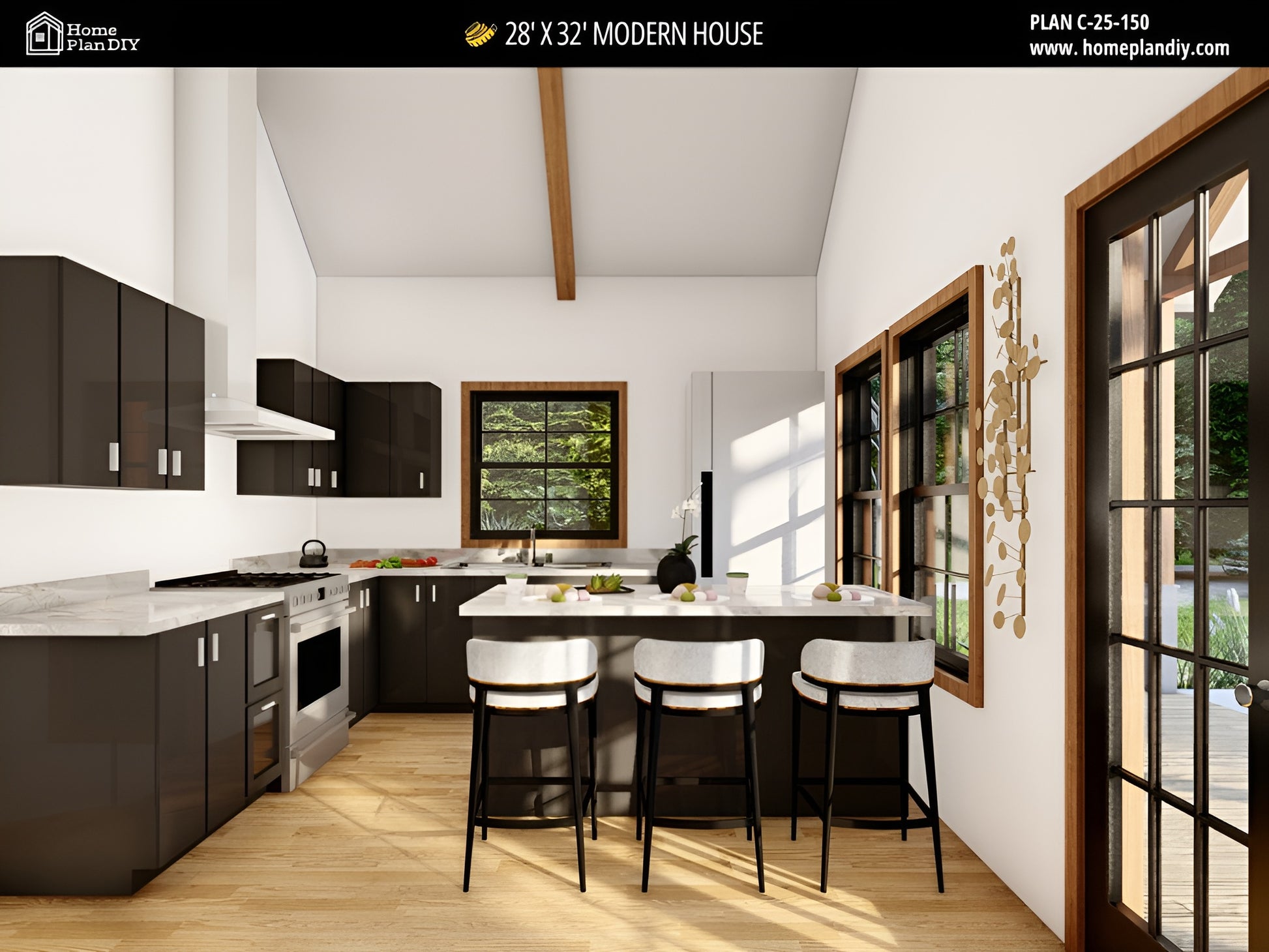

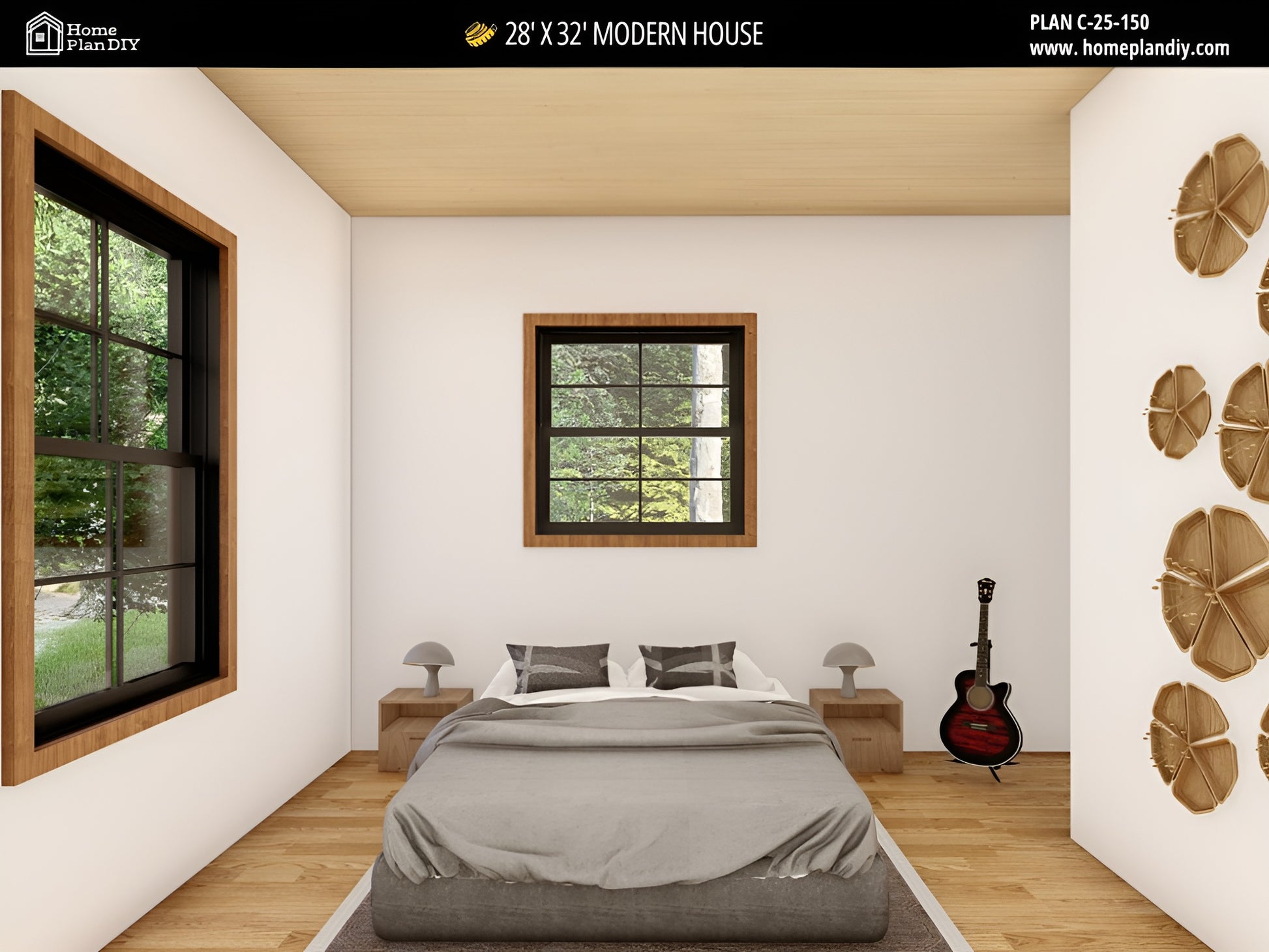

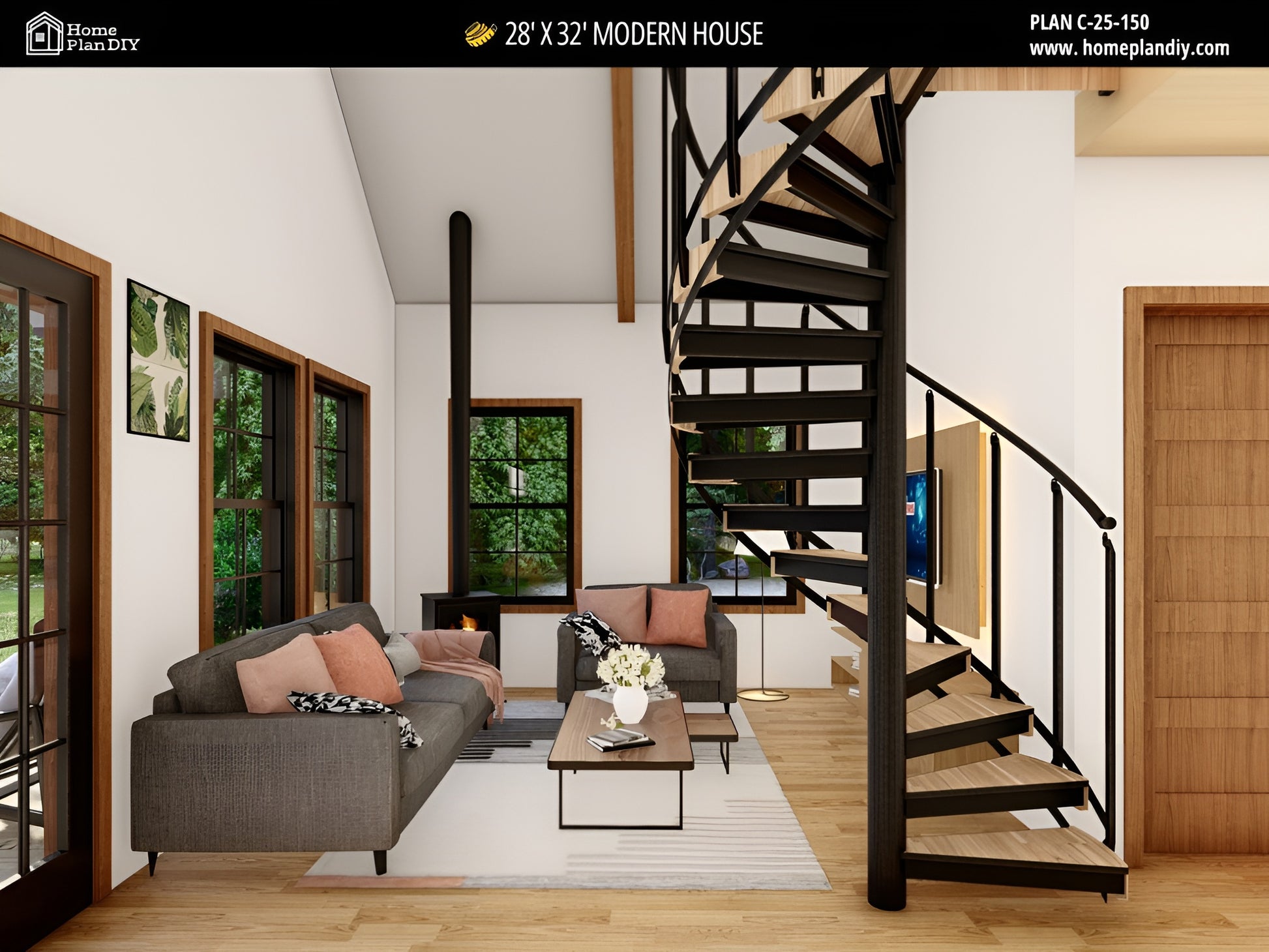

This 28'x32' modern cabin floor plan delivers 1,411 sq ft of heated living space across a main floor and a full loft, combining an open contemporary layout with the warmth and character of a classic cabin profile. The ground floor centers on a connected living and kitchen area, each at 13'6"x11'6", flowing together to create a bright, functional main living zone. Two private bedrooms with closets, a full bathroom, a foyer, and a mud room complete the main level, with a covered patio and deck off the rear adding 224 sq ft of outdoor living space. The full loft above at 515 sq ft adds flexible space suited for sleeping, a home office, or a recreation area.

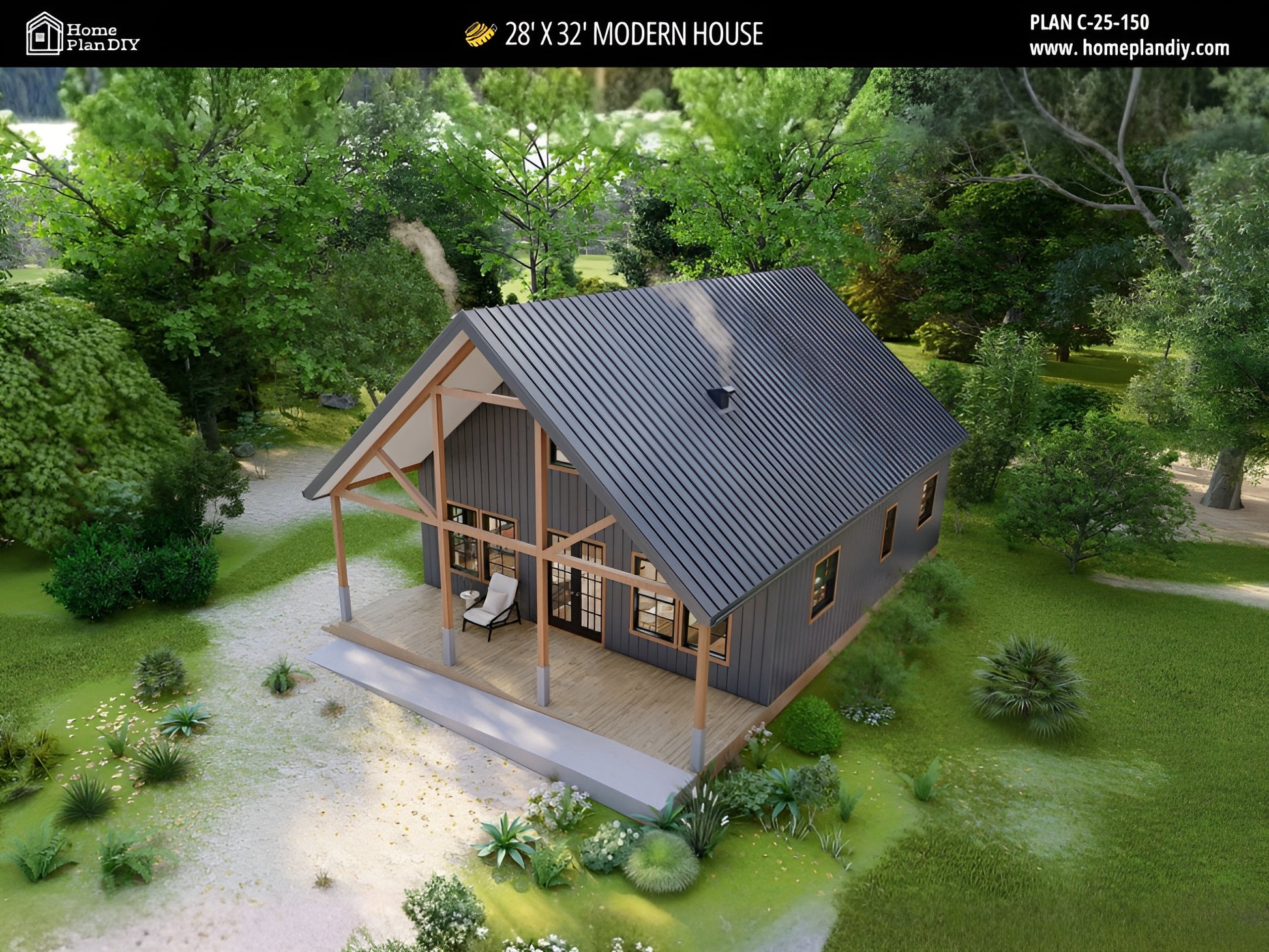

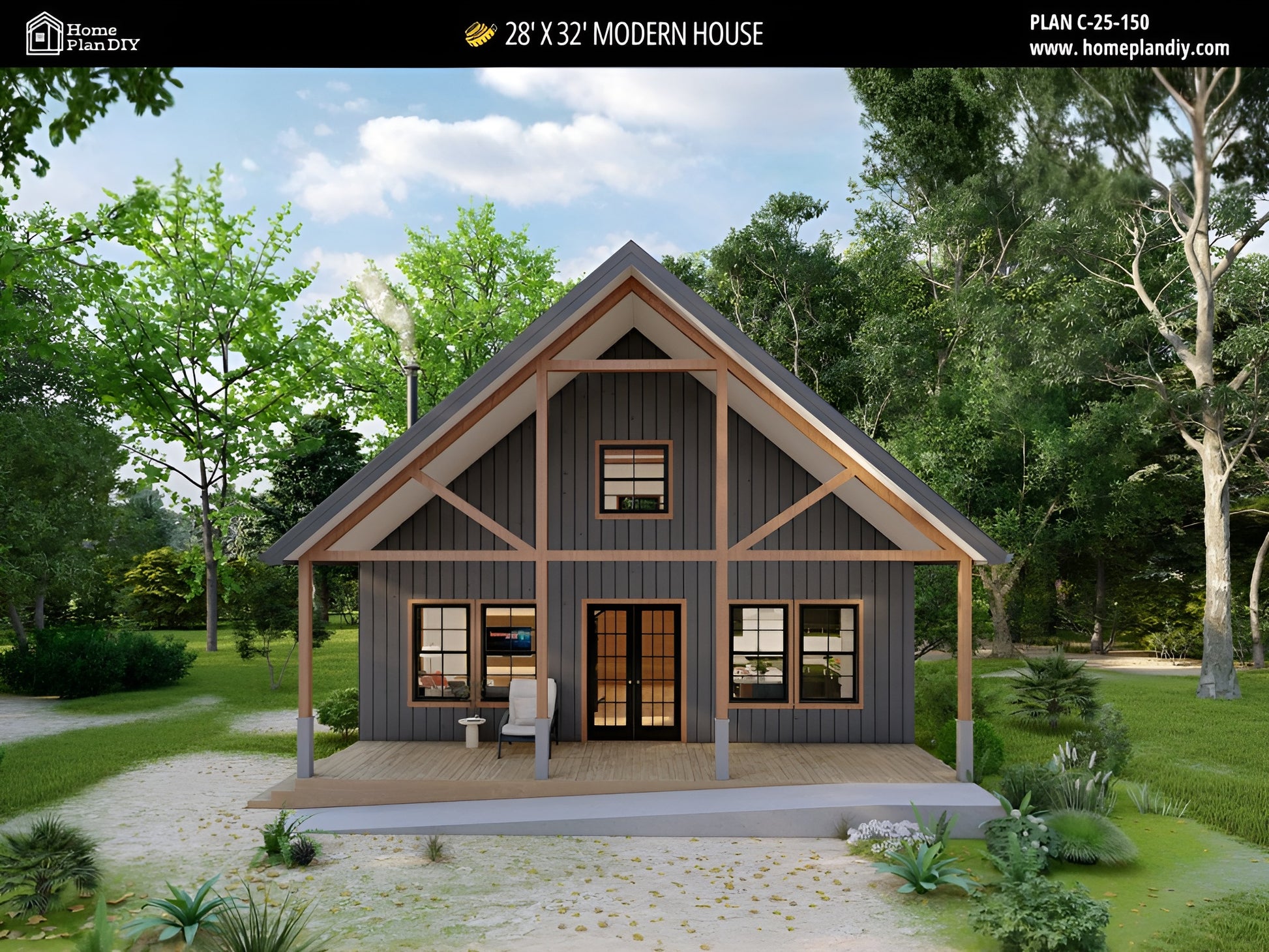

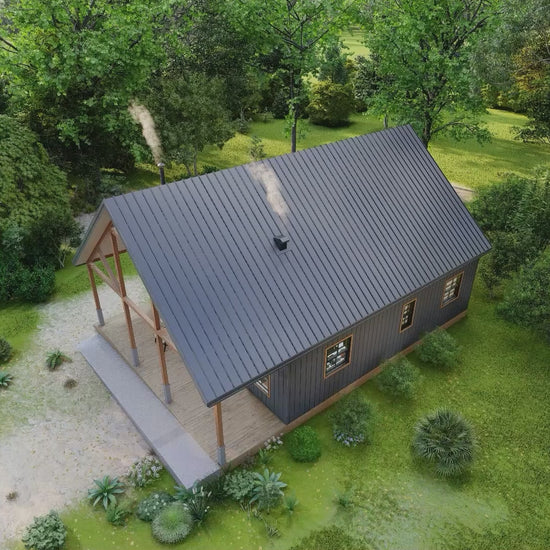

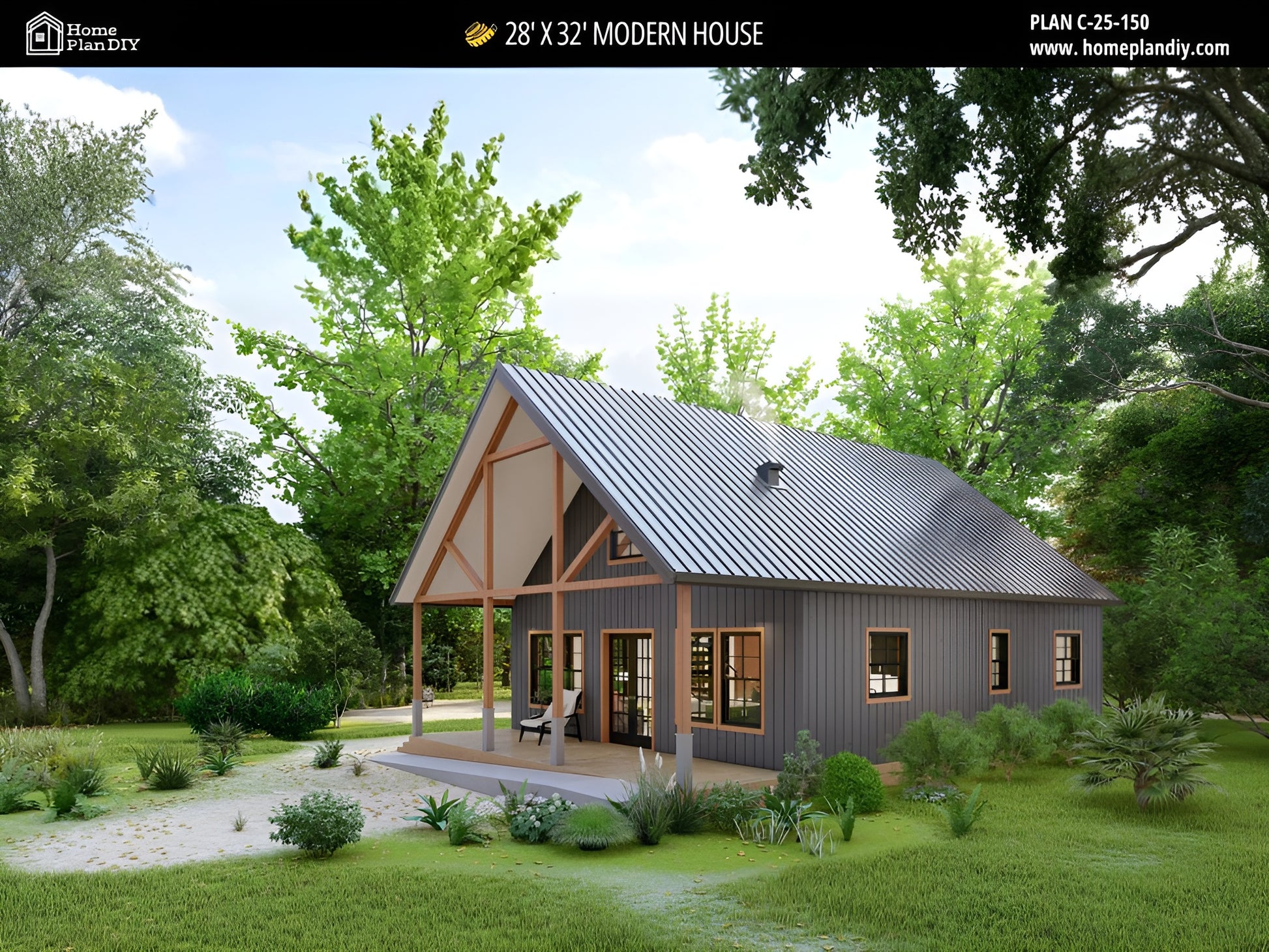

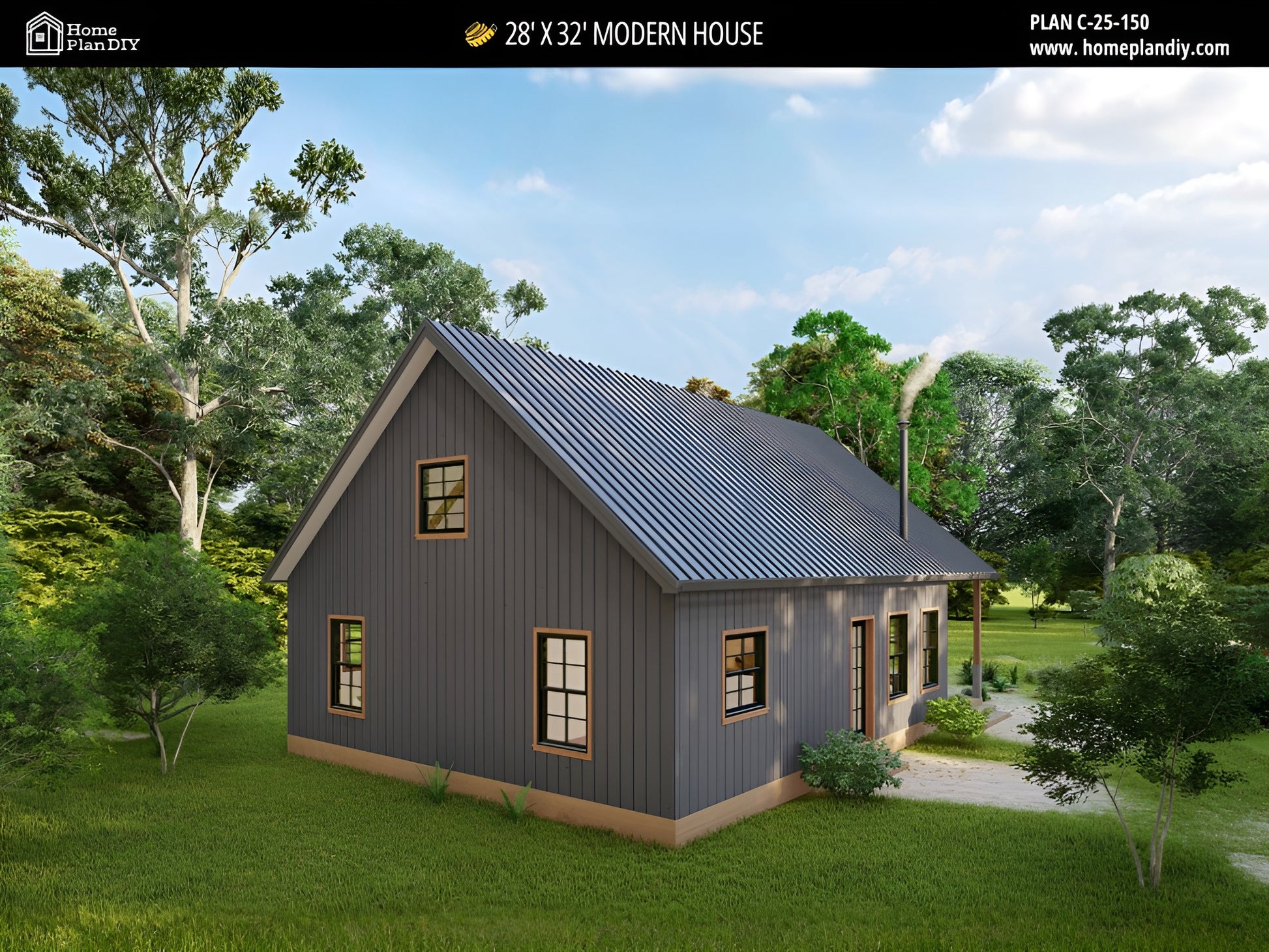

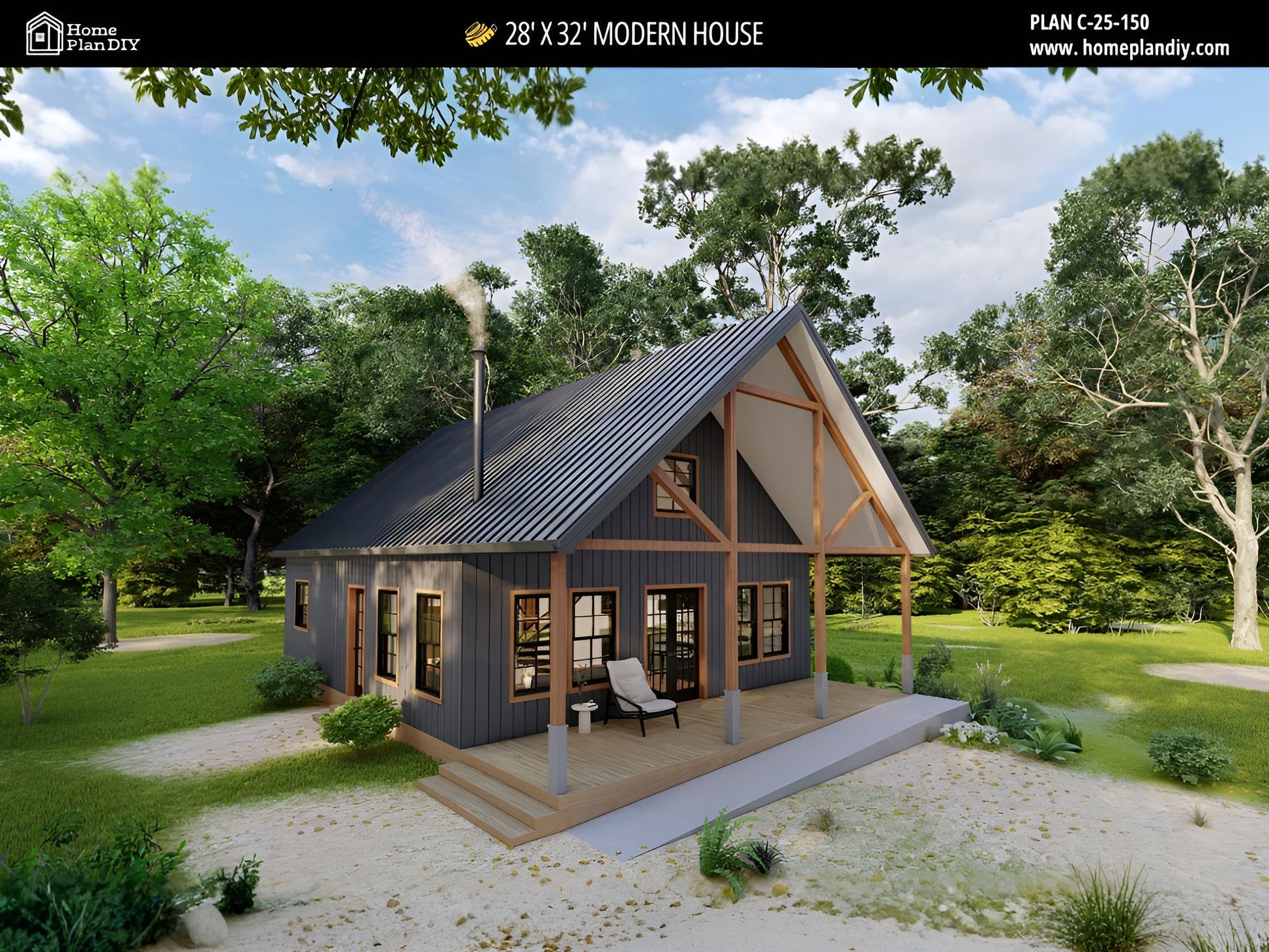

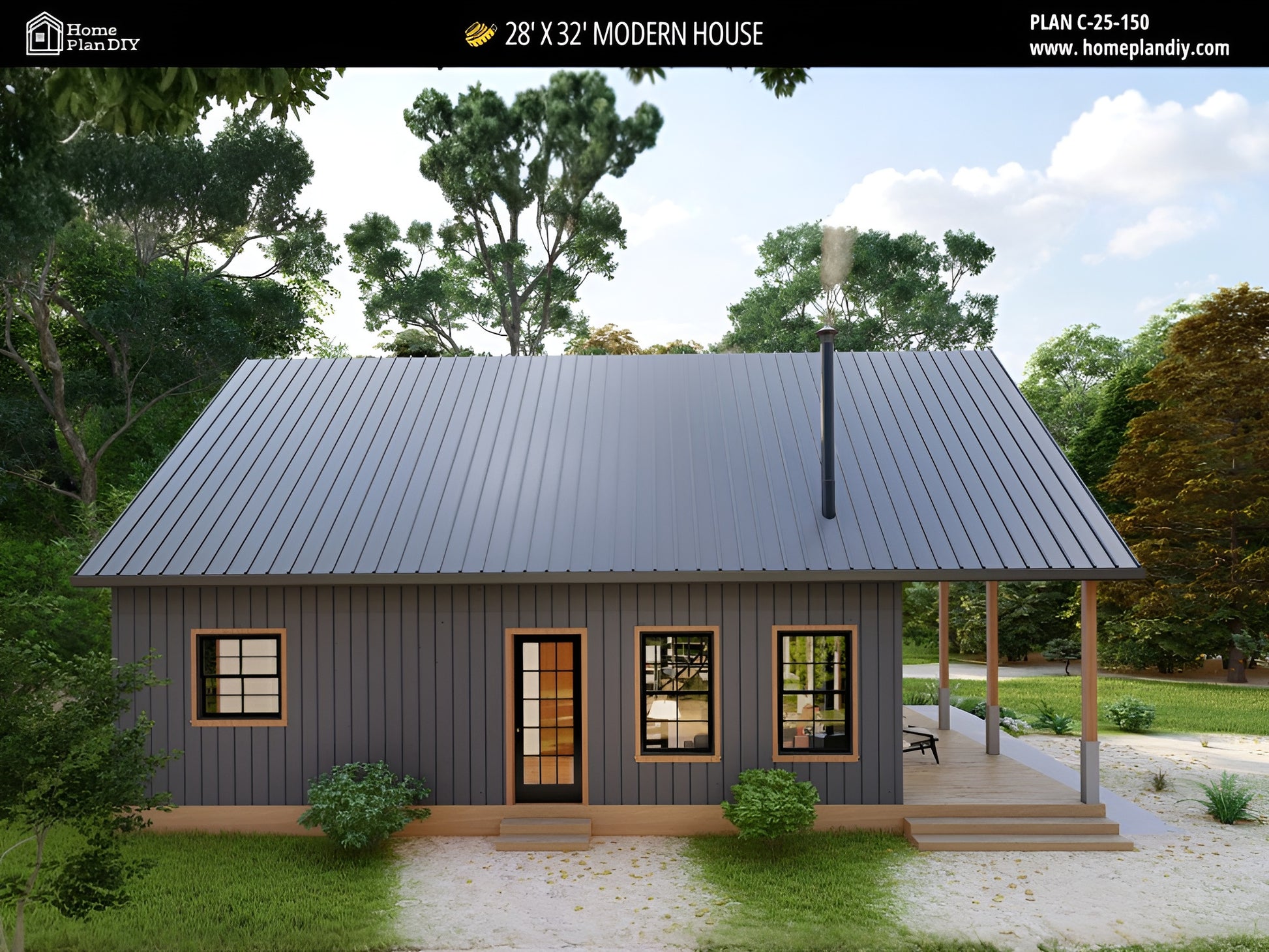

The home features a steep 10:12 gable roof with shed porch extension that gives it a bold, high-pitched cabin silhouette well suited to mountain, wooded, and rural settings. Built on a concrete perimeter and pier foundation with wood framing, insulated walls, and energy-efficient windows, this plan is designed for year-round performance across a wide range of climates. The 9 ft 6 in main floor ceiling height keeps the interior feeling open despite the compact footprint.

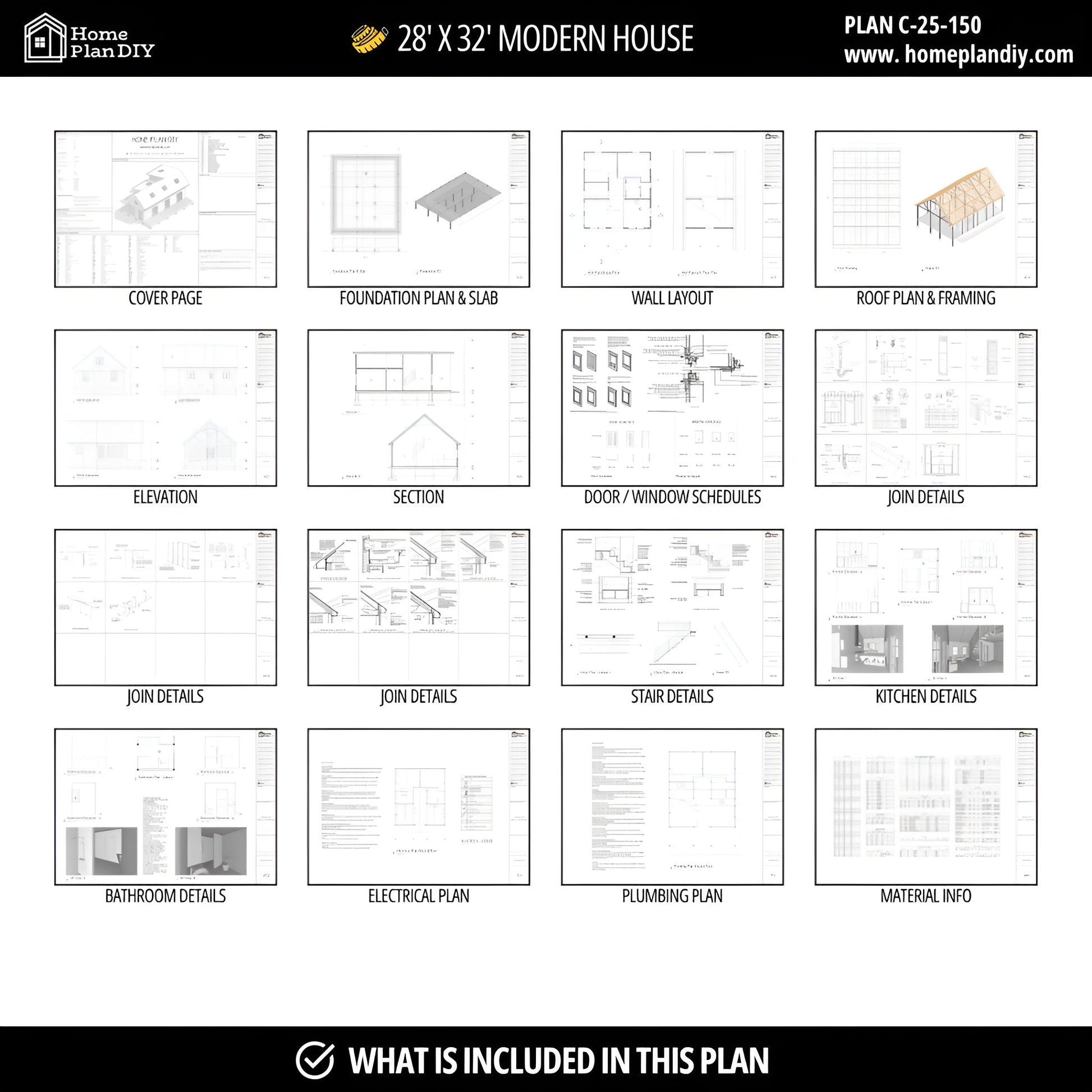

Whether you are planning a vacation cabin, a short-term rental, or a full-time primary residence, this complete 17-sheet drawing set gives you everything needed to begin construction. Sheets cover the architectural floor plan, foundation and slab plan, wall layout plan, ceiling and roof framing plan, all four elevations, two sections, electrical and plumbing plans, kitchen and bathroom details, door and window schedule, joint details, and a full material list. Available as an instant PDF and CAD download. Please note that Home Plan DIY does not provide engineer-stamped plans. Buyers should verify local engineering and code compliance requirements before construction, as some jurisdictions require a licensed architect or engineer to review and seal plans prior to permitting.

Details

Heated SQ FT

Total Heated Area 1120 sq ft

First Floor 896 sq ft

Second Floor 515 sq ft

Porch & Patio SQ FT

Total Porch/Patio Area 224 sq ft

Bedrooms 2

Full Baths 1

Floors 1.5

Width 28 ft

Depth 32 ft

Height 22 ft

Foundation Pier

Main Roof Pitch 10:12

Ceiling Heights

First Floor 9 ft 6 in

What's Included in These Plans?

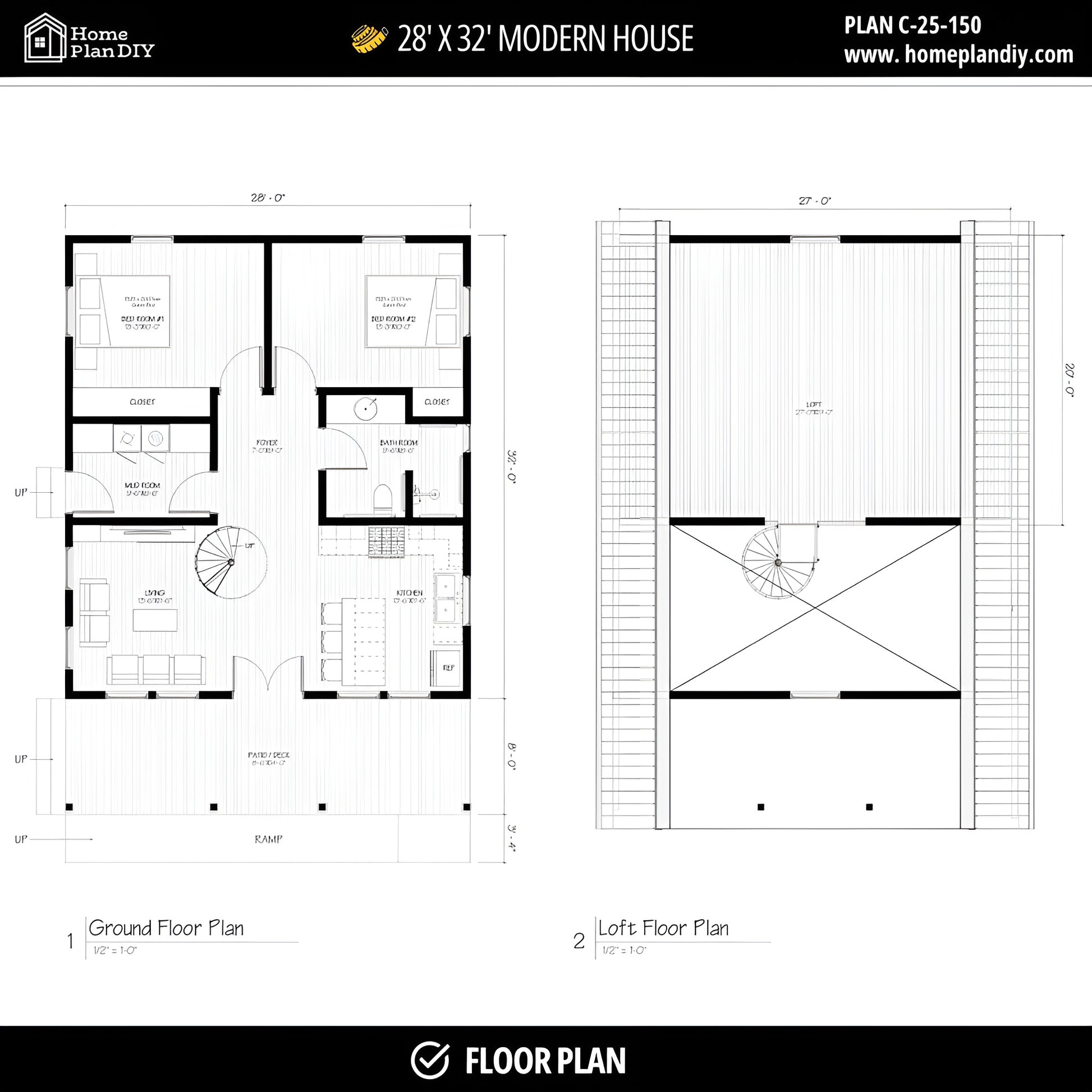

Complete Architectural Floor Plans
Loft & Open Living Space Layouts
Roof, Ceiling & Building Section Drawings
Exterior Elevations from All Sides
Kitchen & Bathroom Construction Details
Door, Window & Opening Schedules
Electrical & Plumbing Layout Plans
Wall, Rafter & Foundation Details
Material List for Construction Planning
Builder-Ready House Blueprints in PDF Format

What's Not Included

Site work, Landscaping, Permits, Utility connections, Appliances, Furniture . Some jurisdictions require a local engineer to review and stamp the plans. Check with your local building department before construction. . Some jurisdictions require a local engineer to review and stamp the plans. Check with your local building department before construction.

Estimated Build Cost

Range

$183,430 to $310,420

Per sq ft

$130 to $220

Final costs may vary significantly based on local market conditions, foundation requirements, utility connections, permits, and customization options. For the most accurate pricing, we recommend sharing the included plans and material list with local contractors or builders for detailed quotations.
