This 22' x 33' Modern A-Frame Cabin Plan with Loft is a stylish and efficient small home designed for cozy, practical living. With approximately 875 square feet of well-planned space, this layout includes 2 bedrooms, 1 full bathroom, and a functional loft, making it ideal for a vacation retreat, Airbnb rental, backyard guest house, or compact primary residence.

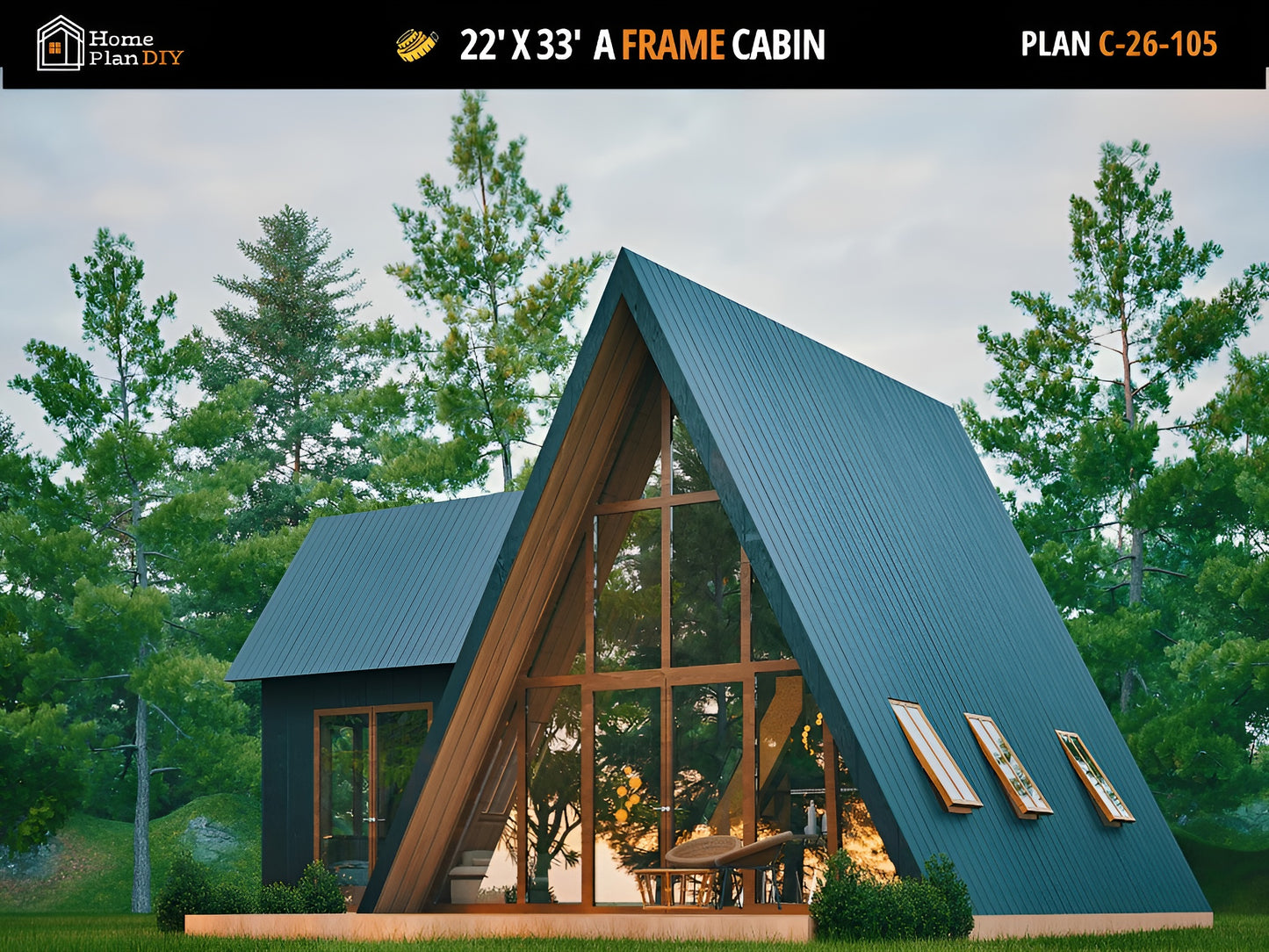

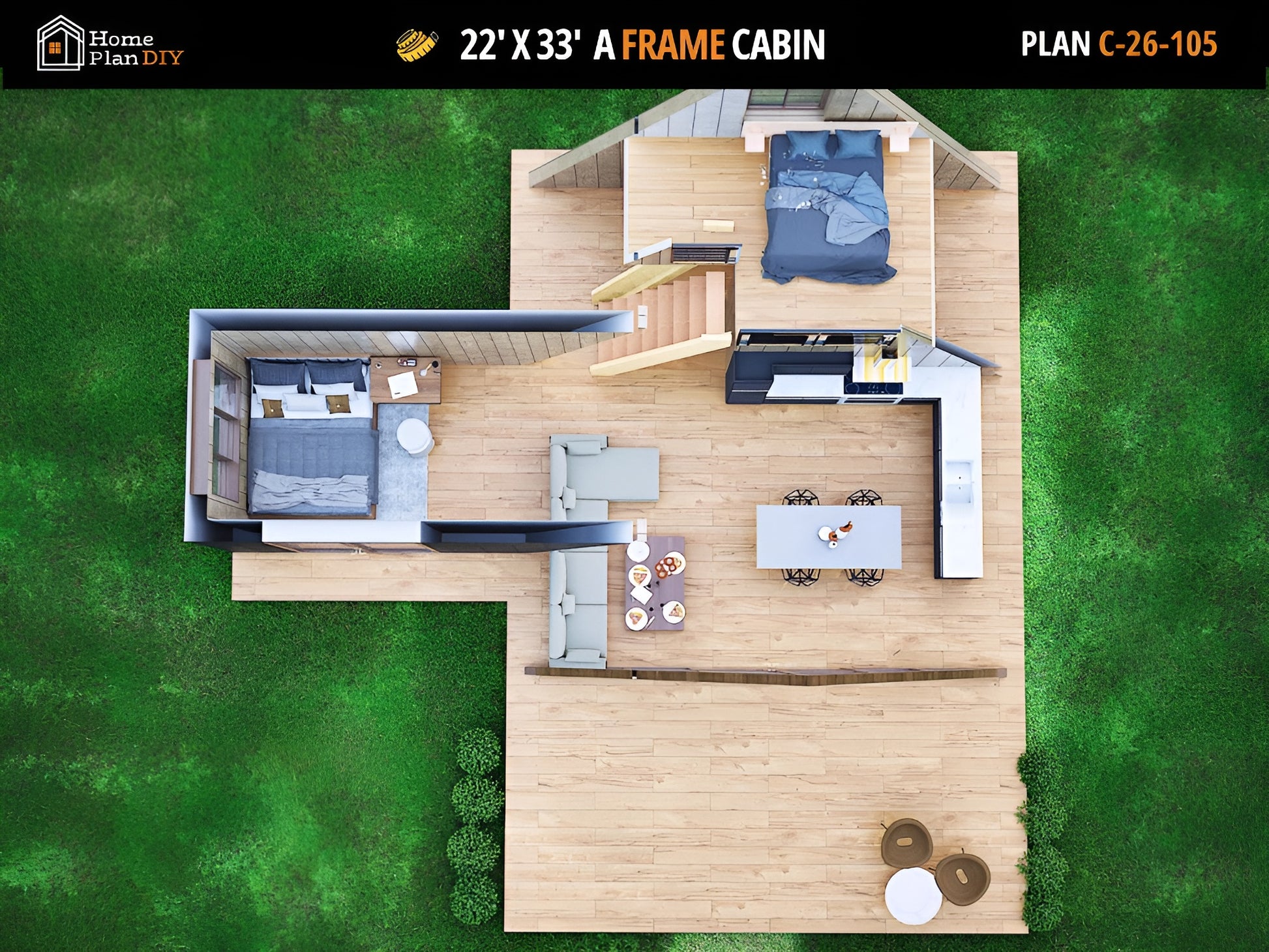

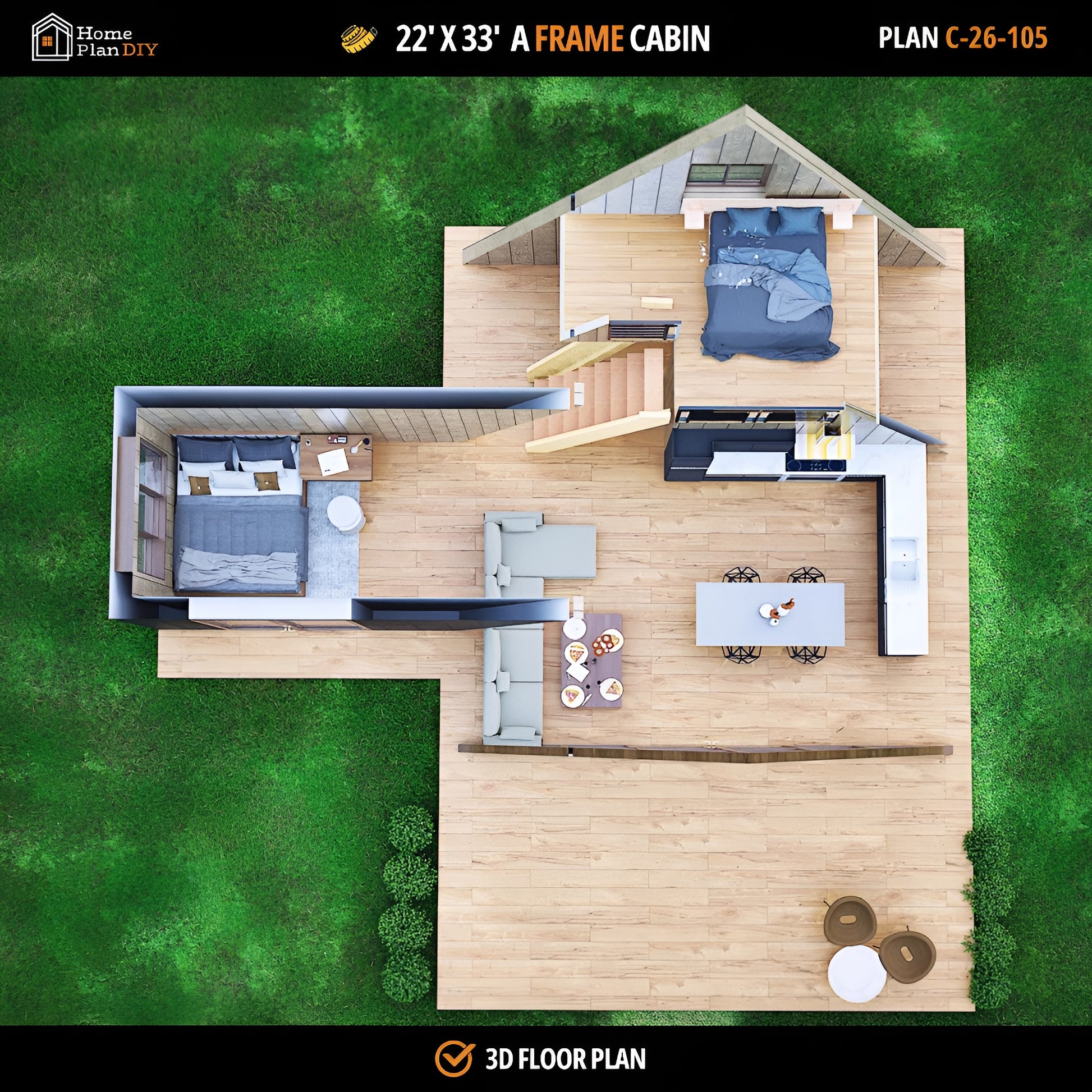

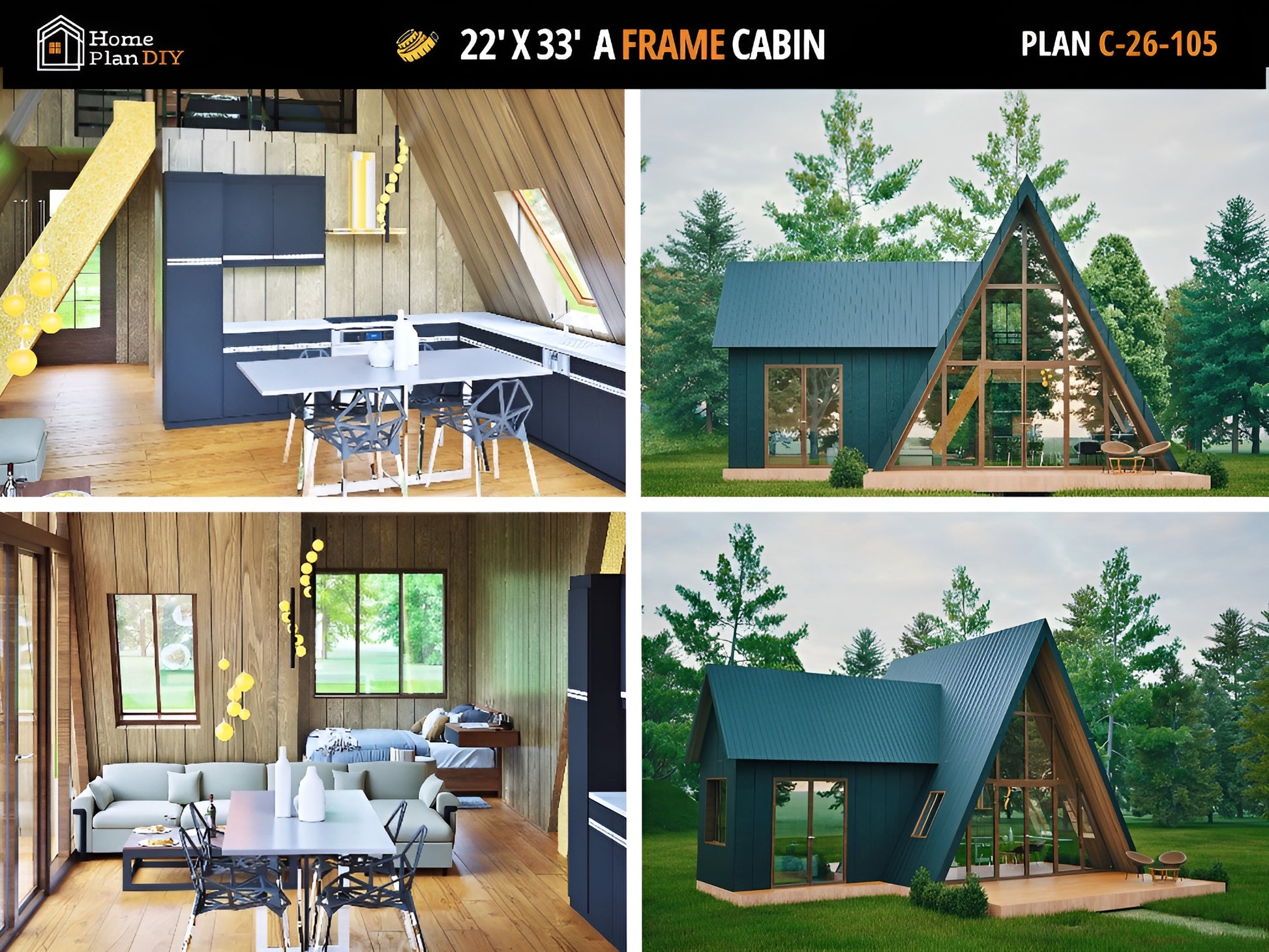

The main floor features an open-concept living and kitchen area that feels bright and spacious thanks to the dramatic A-frame ceiling height and large front windows. The layout is designed to maximize usable square footage without wasted hallways. A comfortable main-level bedroom and full bathroom provide convenience and easy accessibility.

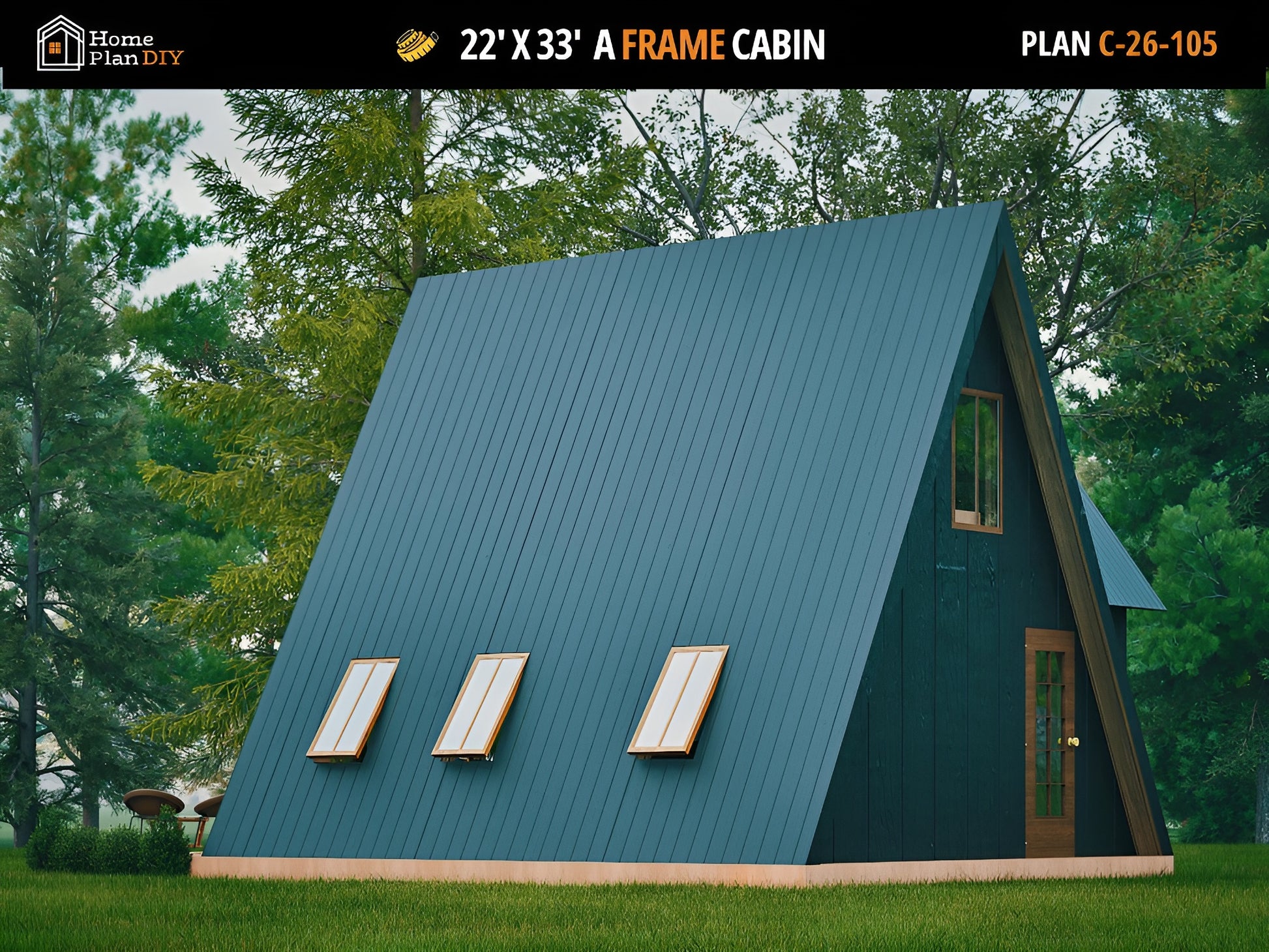

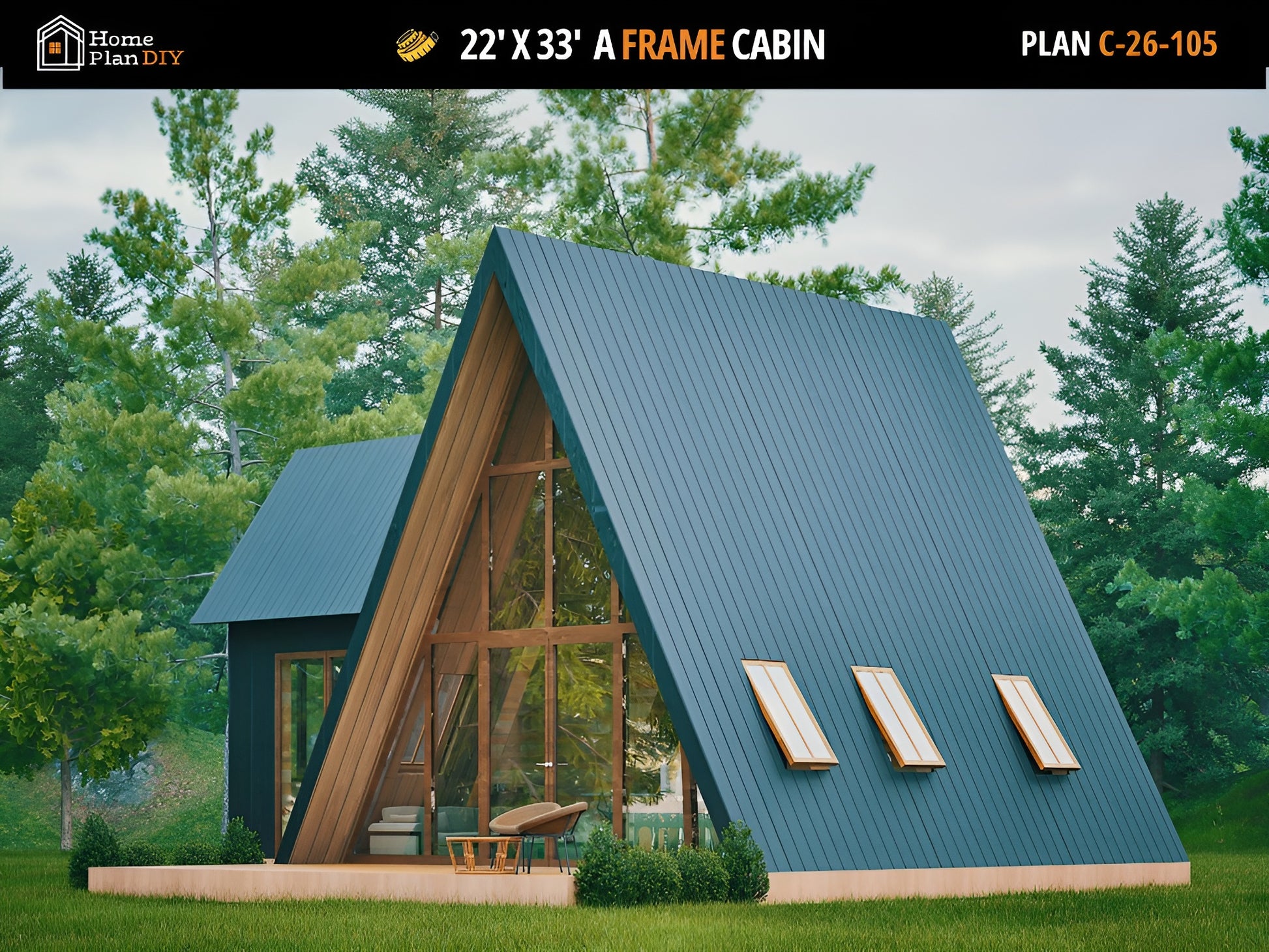

Upstairs, the loft offers flexible space that can be used as a second bedroom, guest sleeping area, reading nook, or small office. The iconic A-frame structure creates a warm cabin atmosphere while keeping the framing system straightforward and build-friendly.

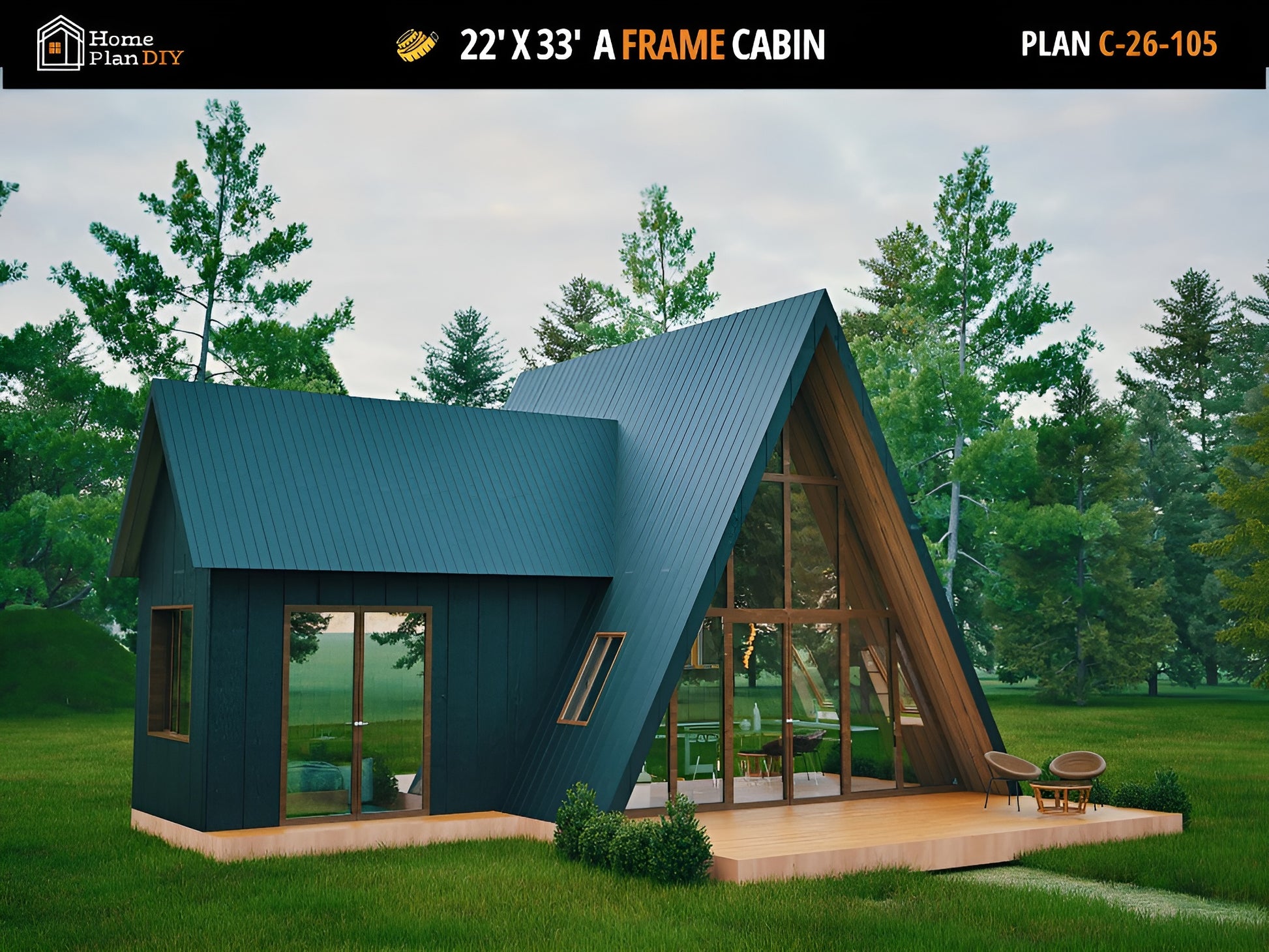

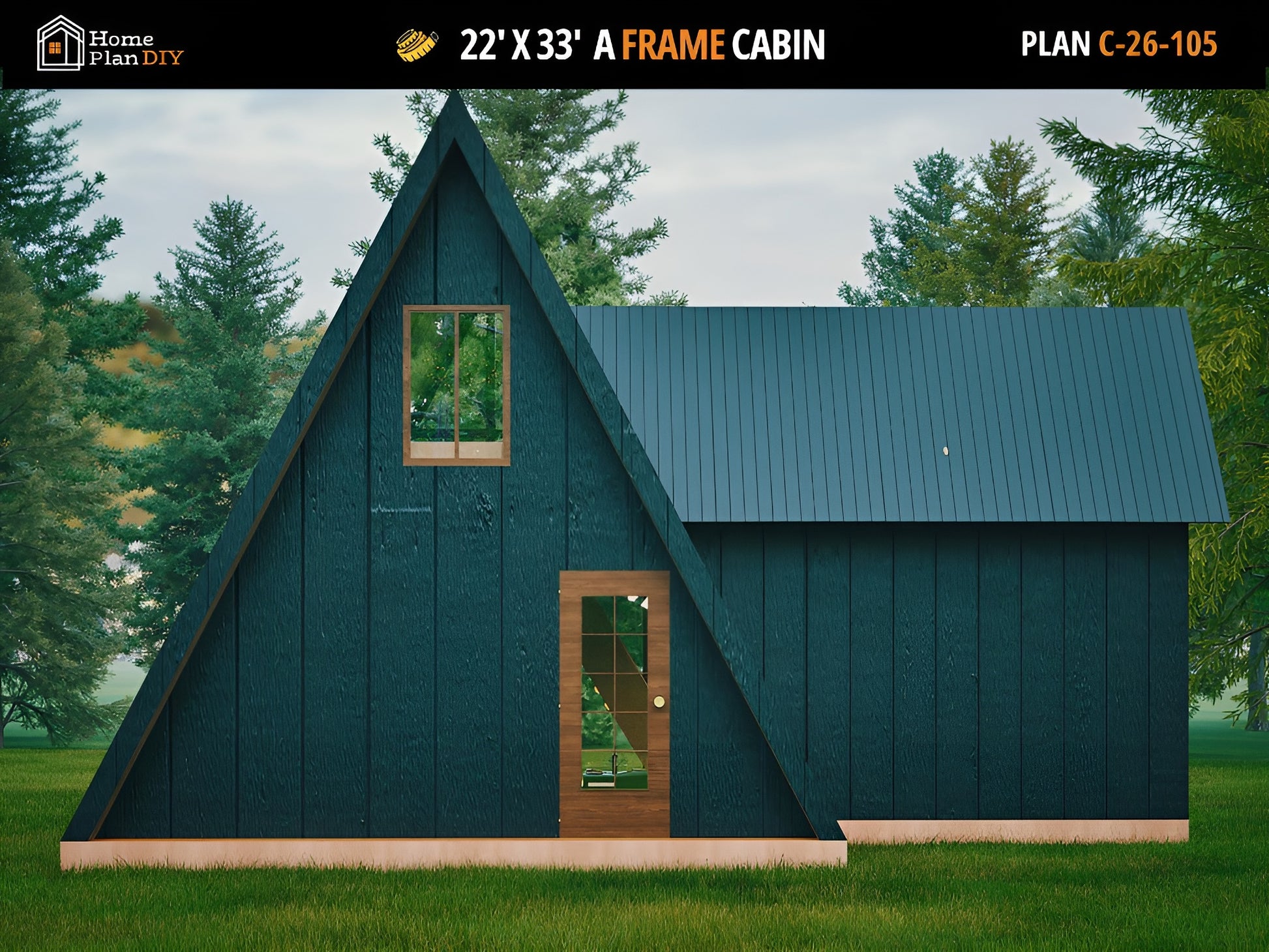

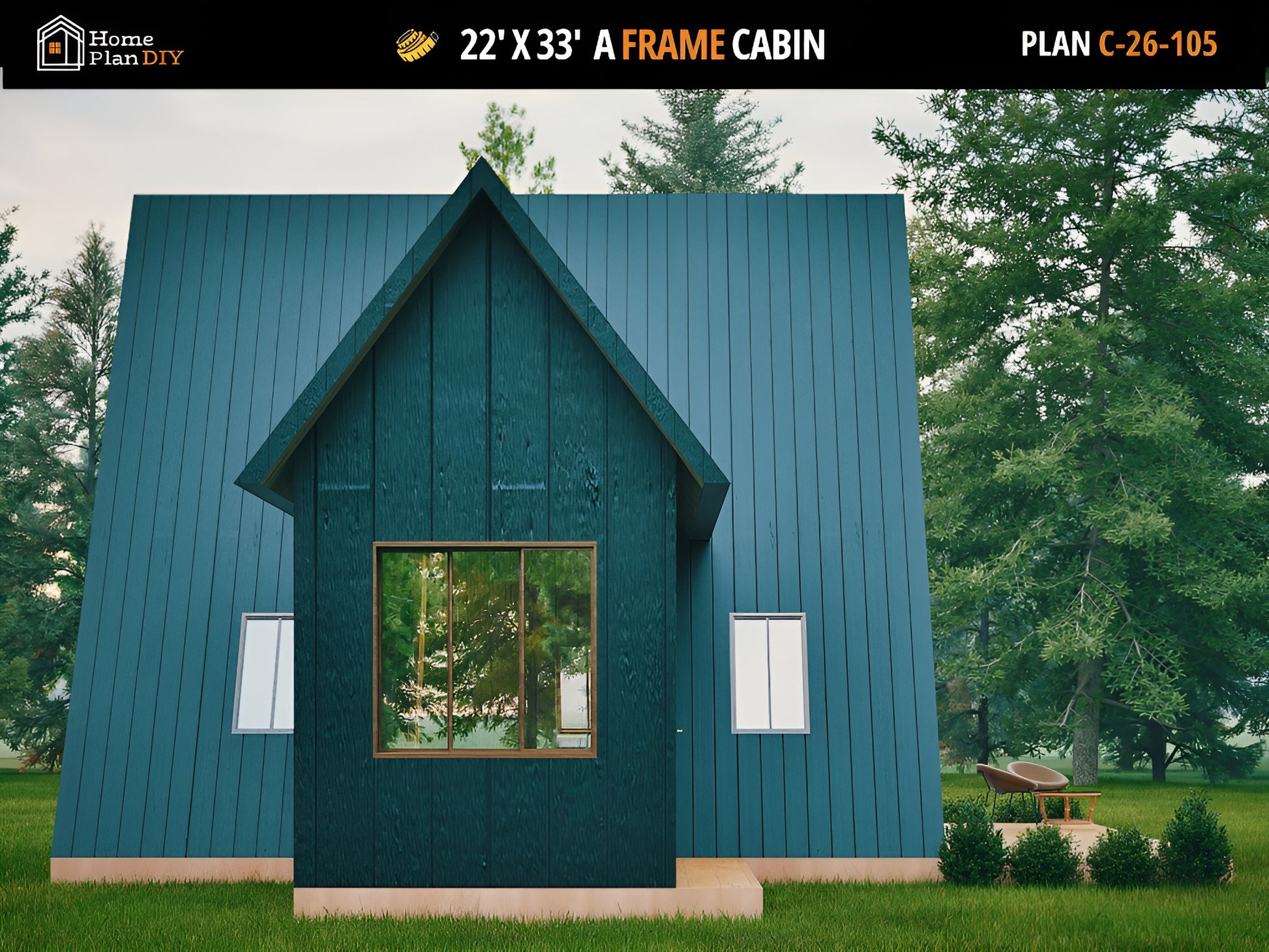

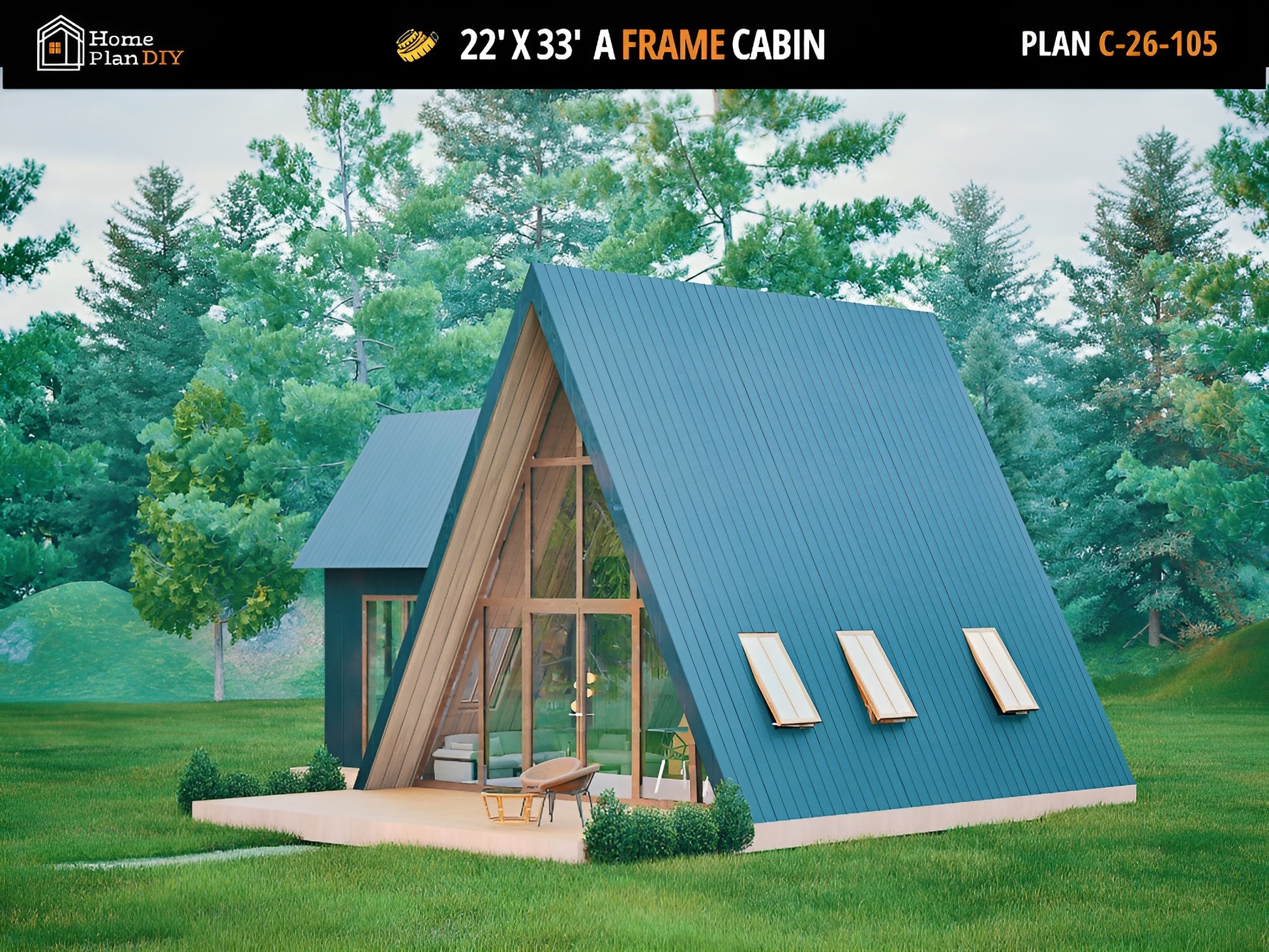

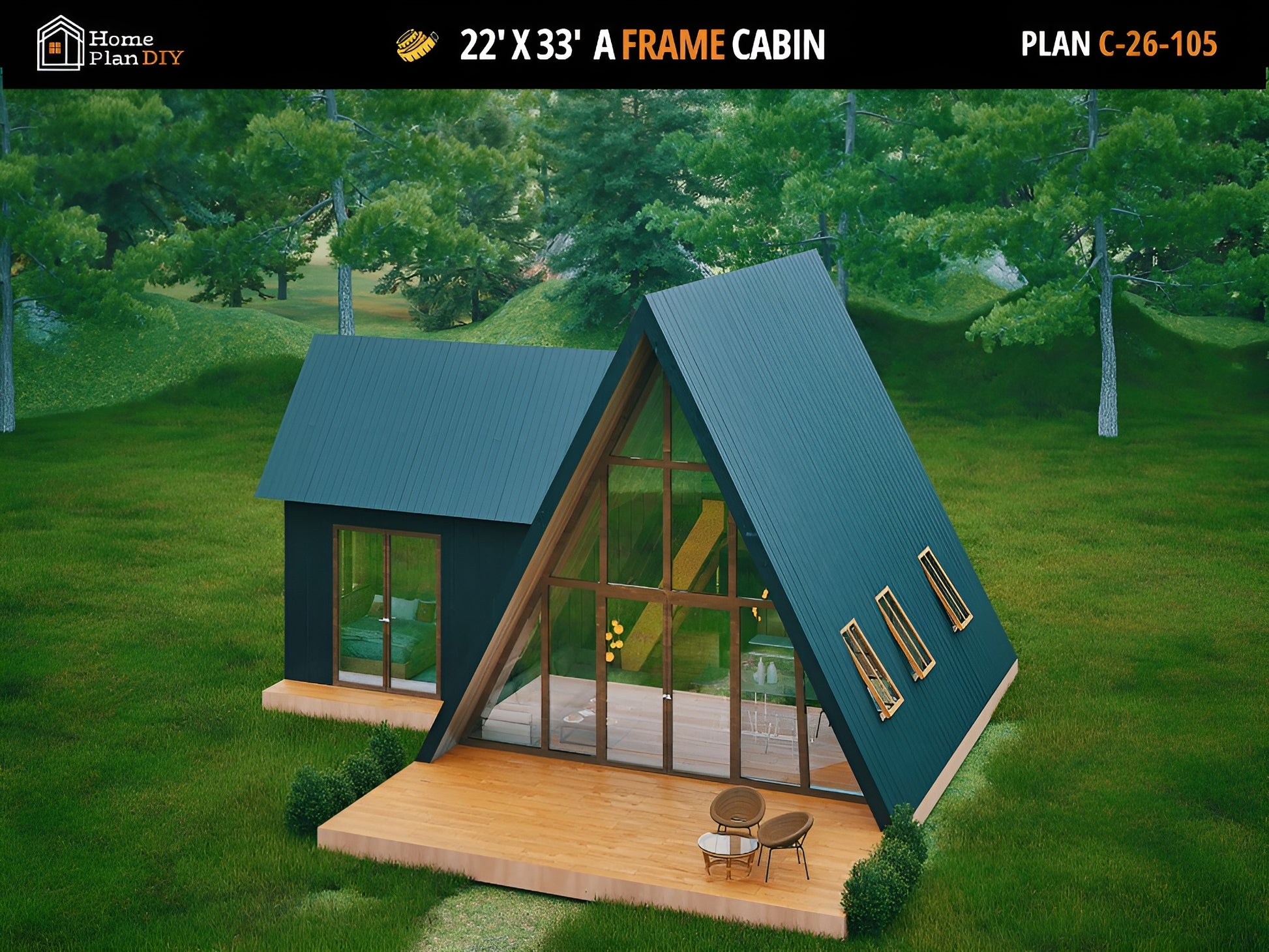

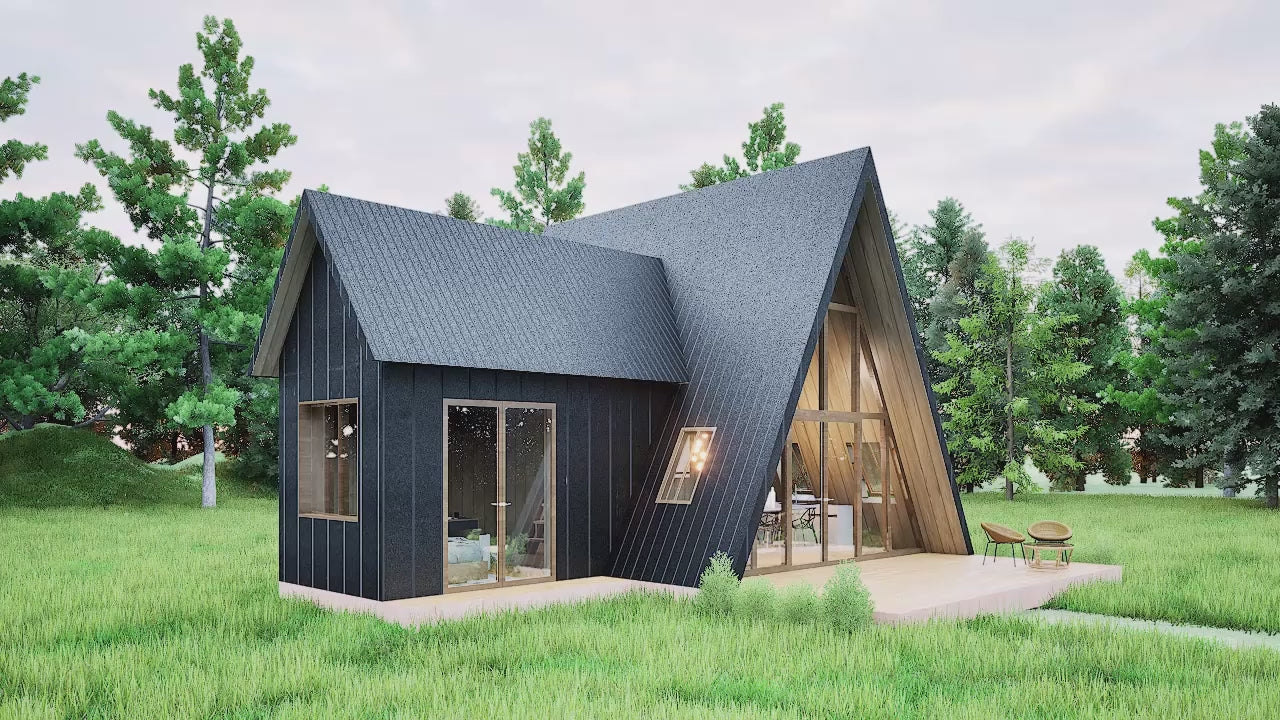

With its clean 22' x 33' footprint, steep A-frame roofline, and modern cabin styling, this plan balances architectural character with construction simplicity. The plan set is provided in both PDF and CAD formats, allowing you to print, share with your builder, or modify as needed.
**Editable digital plan (suitable for modification). **CAD files included for free (limited-time offer).
>>> KEY FEATURES OF THIS HOUSE PLAN >>> - Approx. Size: 875 sq ft - Ground Floor: 807 sq ft - Loft: 68 sq ft - Dimensions: 22 ft × 33 ft - Floors: 2 (Main Floor + Loft) - Bedrooms: 2 - Bathrooms: 1 - Layout: Open living and kitchen area - Framing: Standard wood framing - Foundation: Slab foundation (verify locally) - Roof Style: Classic A-Frame roof - Architectural Style: Modern A-Frame Cabin

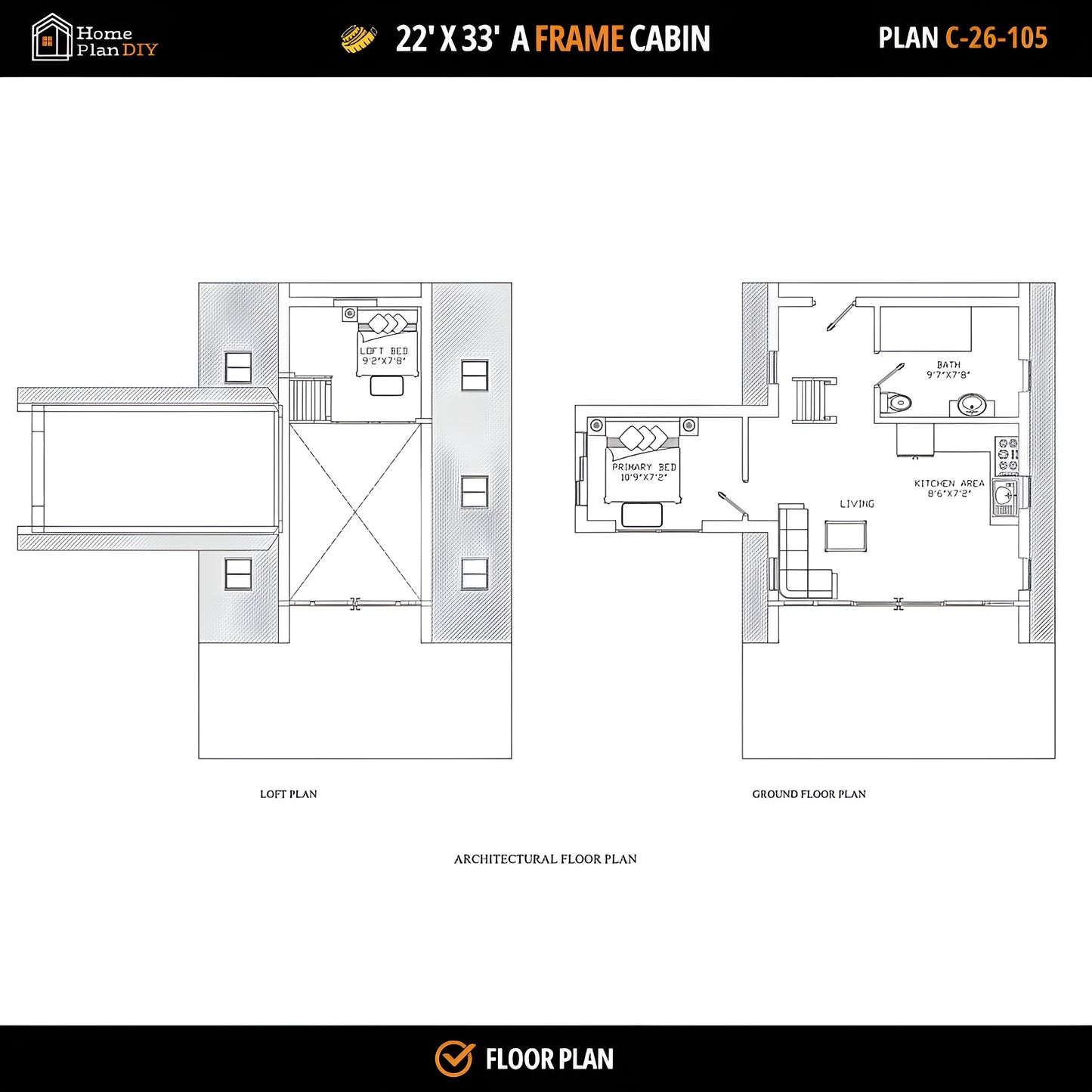

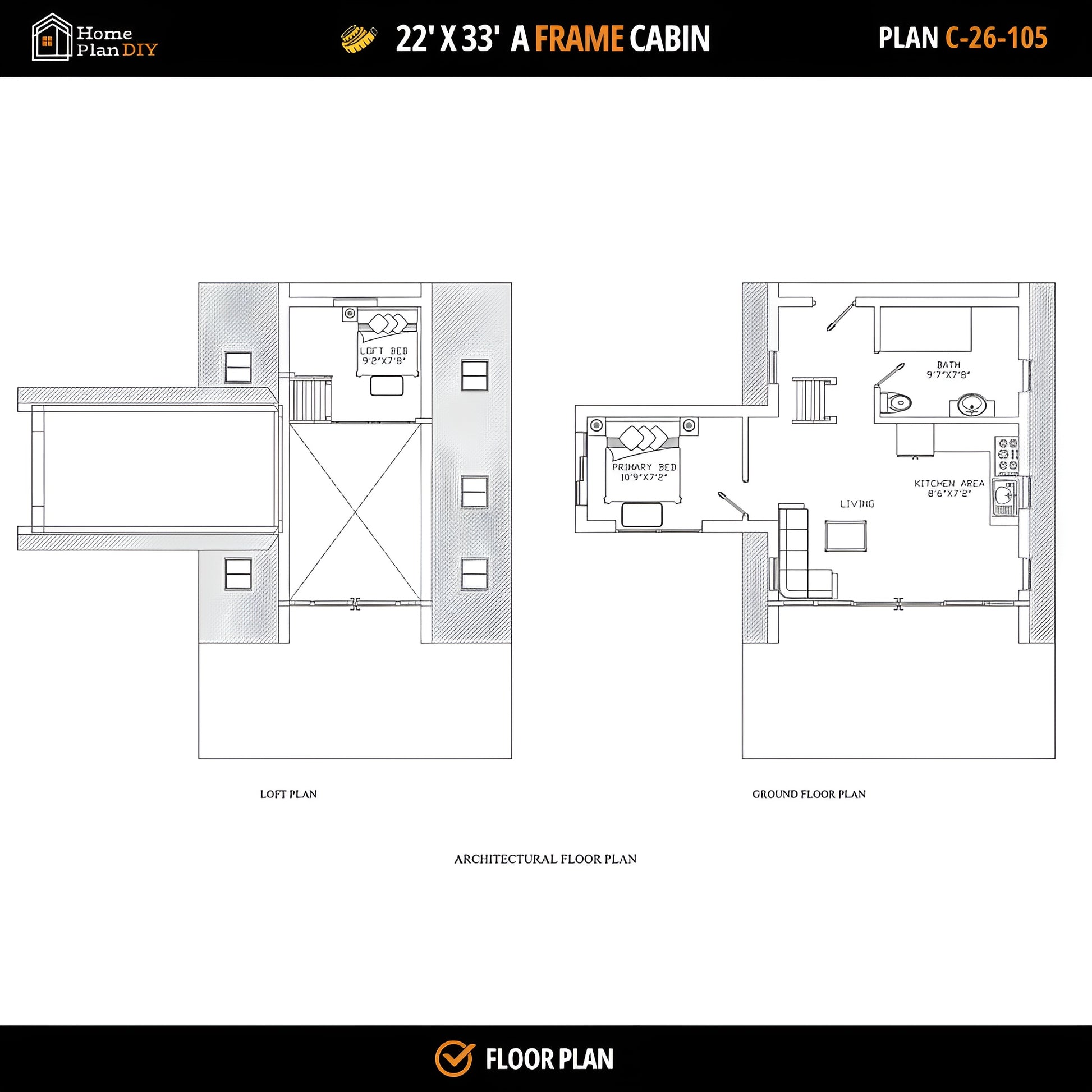

>>> FLOOR PLAN HIGHLIGHTS >>> - Open-concept living and kitchen area - Main-floor bedroom for convenience - Full bathroom on main level - Loft space ideal for bedroom, guest area, or office - Large front glazing for natural light - Compact footprint designed to help control construction costs - Efficient circulation with minimal wasted space

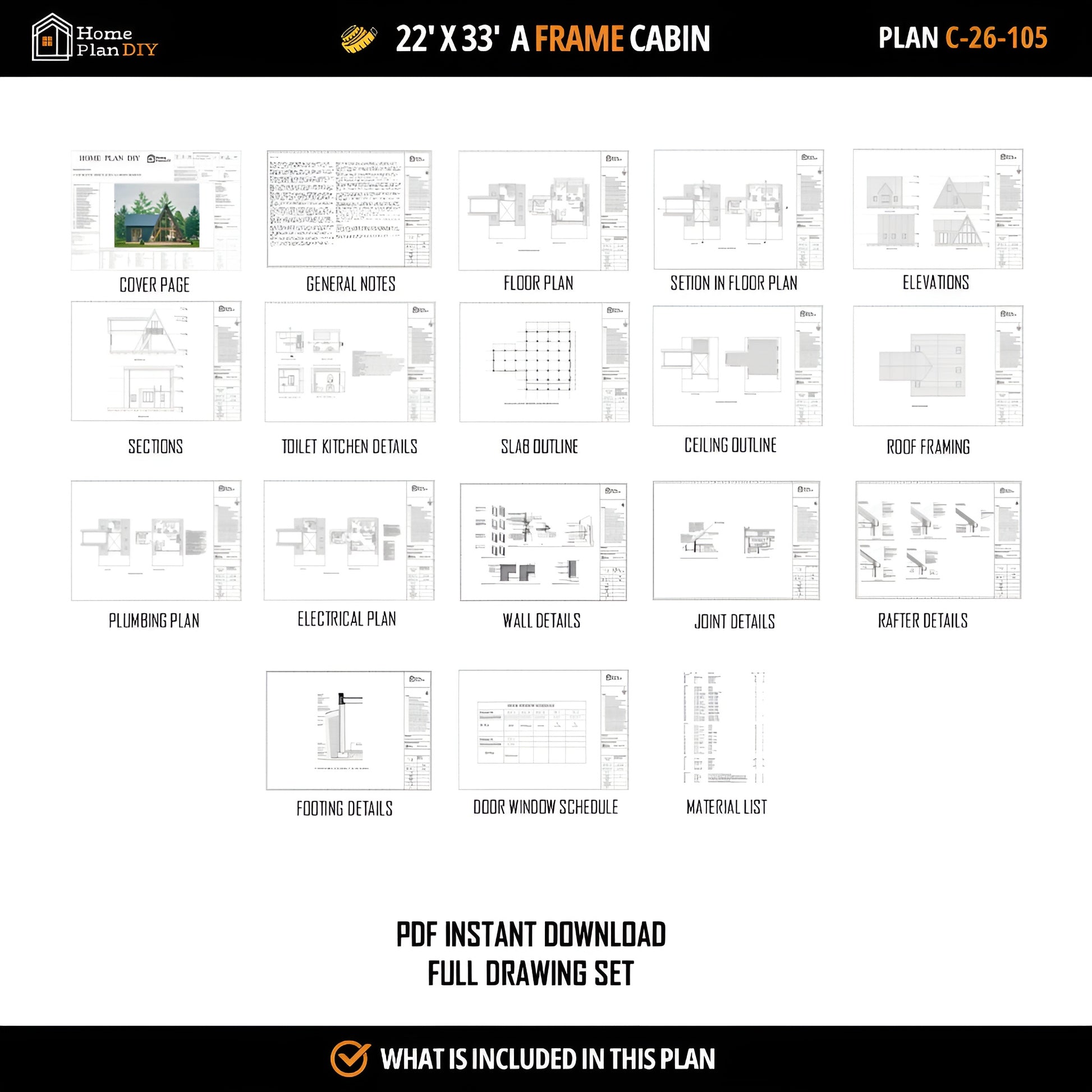

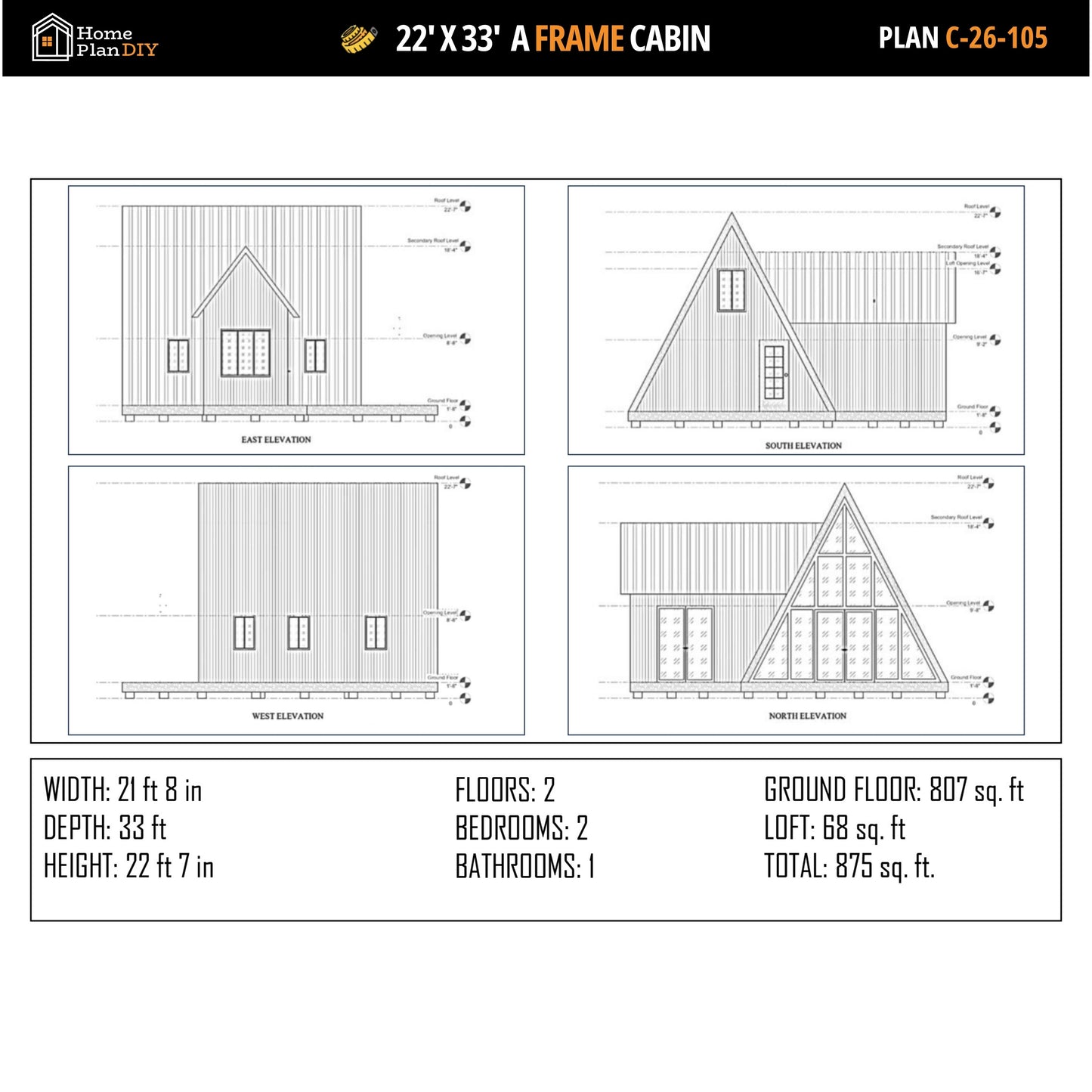

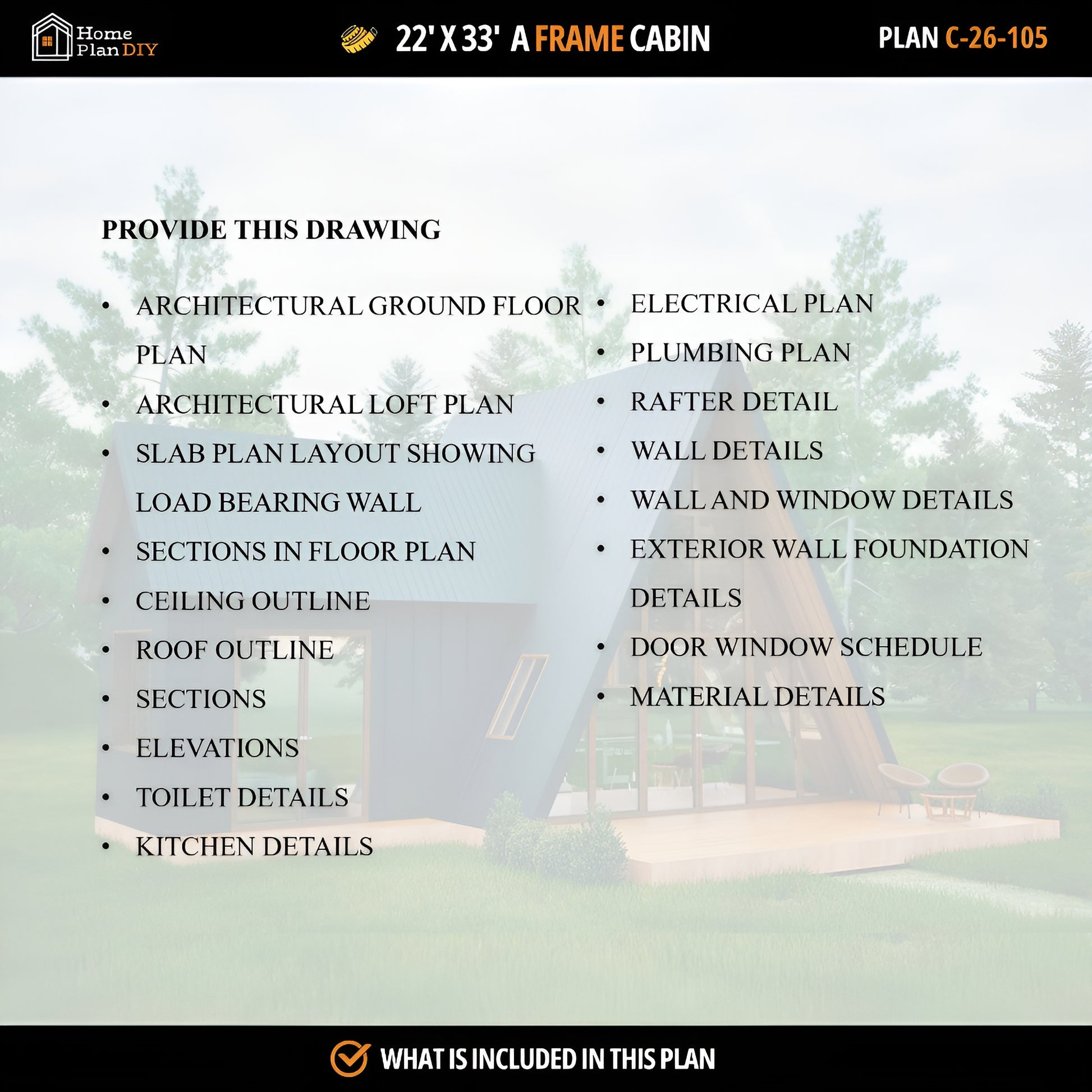

>>> WHAT’S INCLUDED IN THE PLAN SET >>> - Fully dimensioned floor plan (Ground + Loft) - Foundation plan - Roof outline plan - Exterior elevations (all sides) - Building sections - Slab plan with load-bearing layout - Door and window schedule - Framing details - Electrical layout - Plumbing layout - Kitchen & bathroom details - Insulation and construction details - Material list - Construction notes
>>> ESTIMATED BUILD COST >>> Estimated construction cost typically ranges between $95,000 – $150,000+ USD, depending on location, labor rates, materials, and finish selections. - Average cost: $110 – $170 per sq ft - Final pricing may vary by region and structural requirements - Labor, permits, utilities, and site work are not included in this estimate The included material list can be shared with your local contractor or supplier to obtain a more accurate quote.
>>> PRINTABLE DIGITAL DOWNLOAD >>> - Instant digital download after purchase - High-quality PDF & CAD files - No physical item will be shipped - Files are print-ready and builder-friendly
>>> RETURN POLICY >>> Due to the digital nature of this product, returns or exchanges are not accepted. Please review all plan details and images carefully before purchasing.
>>> IMPORTANT BUILDING NOTICE >>> All house plans must be reviewed and approved by a licensed local engineer or building department before construction. Building codes, zoning laws, snow loads, wind loads, and foundation requirements vary by location.
>>> IMPORTANT NOTES >>> ● Digital Download Only – No Physical Item Shipped ● Consult Local Engineers for Code Compliance ● For Personal Use Only – No Commercial Redistribution ● Use of this plan is at your own discretion. ● Home Plan DIY is not responsible for construction outcomes or regional code differences. ● Purchasing this plan does not create any architect-client relationship. ● No engineering stamp is included.
>>> COPYRIGHT NOTICE >>> All drawings and designs are the property of Home Plan DIY. For personal use only. Redistribution or resale is strictly prohibited.
