16'x23' Modern Small Cabin Plan 2 Bed 1 Bath 483 Sq Ft

Build Your Dream Small Cabin: Complete Construction Plans, Instant Download

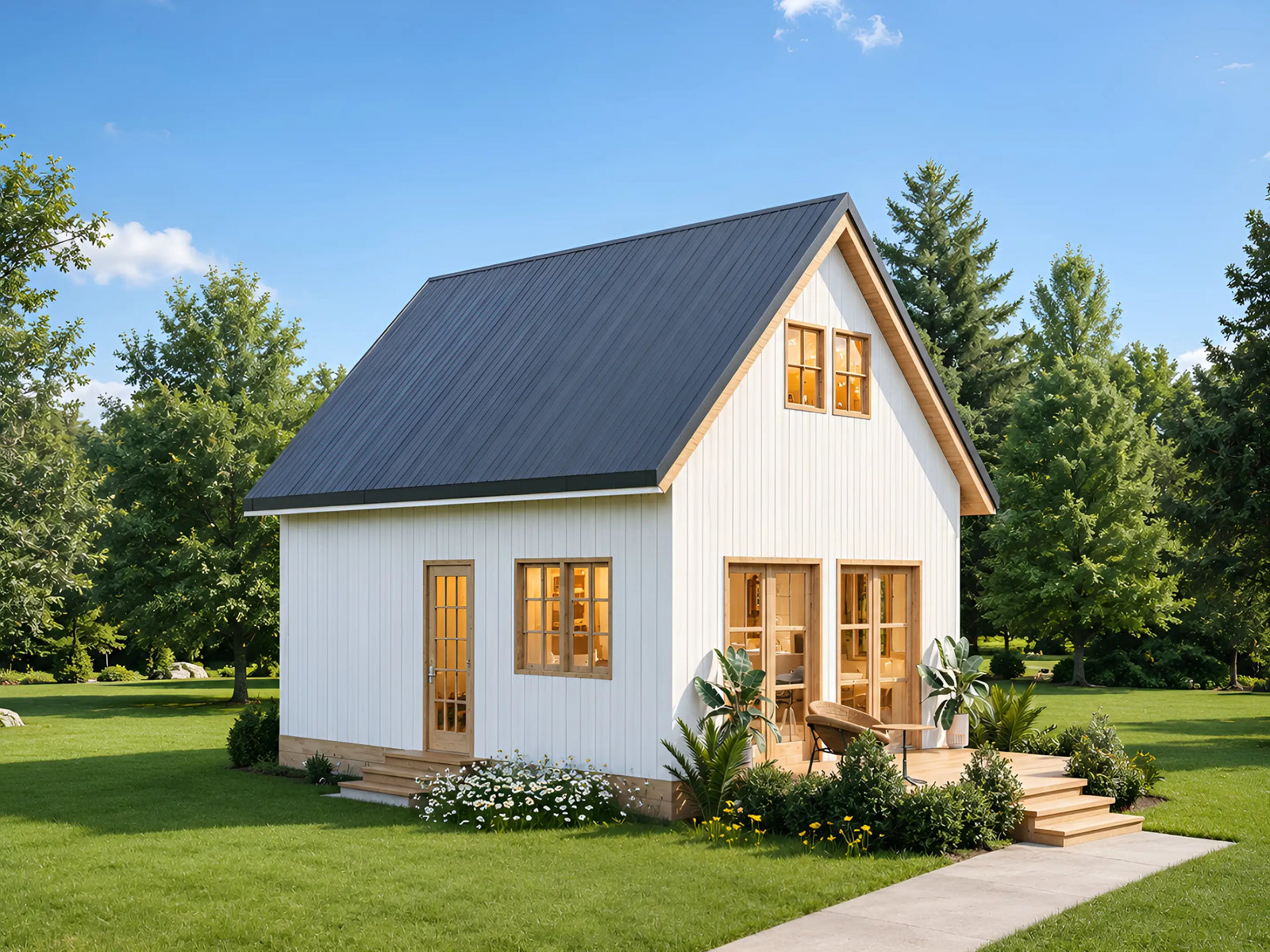

This charming small cabin house plan packs remarkable livability into a compact 16 ft x 23 ft footprint. Designed for owner builders, backyard guest houses, short-term rental investments, hunting camps, and off-grid retreats, this 2-story layout delivers 483 sq ft of conditioned living space with an open floor concept that maximizes natural light and creates a warm, inviting atmosphere.

The Layout

Step onto the 14 ft x 8 ft covered front porch and enter an open living, dining, and kitchen space that feels far larger than its square footage. The ground floor includes an 8'0" x 8'8" bedroom and a full bathroom with tub, while a staircase leads to a 9'2" x 11'1" loft bedroom with clerestory windows overlooking the space below. The classic gable roof reaches 21'6", giving the cabin real presence and generous interior volume.

Room Sizes

• Living room: 7'4" x 13'1"
• Dining: 7'10" x 6'4"
• Kitchen: 7'10" x 6'9"
• Ground floor bedroom: 8'0" x 8'8"
• Bathroom: 6'9" x 5'8"
• Loft bedroom: 9'2" x 11'1"
• Covered front porch: 14'0" x 8'0"

What's Included

Every purchase includes the complete working drawing set as a print-ready PDF, plus CAD files and a full itemized material list. Our packages also offer PDF, CAD, material list, and reverse plan options. The drawing set covers:

• Cover sheet with project data, areas, and design criteria
• General construction notes
• Ground floor and loft floor plans
• Slab plan layout showing load-bearing walls
• Sectional floor plans, ceiling and roof outlines
• Building sections and all four exterior elevations
• Kitchen and bathroom details with plan and section views
• Rafter details with multiple insulation assembly options
• Wall, window, foundation, and insulation details
• Door and window schedule with dimensions
• Framing details, electrical plan, and plumbing plan
• Complete material details sheet for accurate takeoffs

Construction Specifications

Wood stud framing with insulated walls, drilled concrete pier foundation with full footing details (ideal for sloped or remote sites), 2x10 roof rafters with metal roofing, housewrap and cedar rain screen siding details, and batt insulation throughout. The electrical plan includes GFCI protection and smoke detector requirements; the plumbing plan specifies copper supply, PVC drain and vent, and low-flow fixtures. Drawn to 2022 California residential codes (IRC 2021 with amendments).

Estimated Build Cost

Approximately $130–$220 per square foot depending on region, finishes, and labor, roughly $63,000 to $106,000 total.

Instant Digital Download

Files are delivered instantly after checkout. Print at home or send it to any local print shop; the set is formatted at A3 sheet size and prints beautifully at 11x17.

Important: This is a digital product; no physical item ships. Plans are not sealed or engineered for individual states and do not meet earthquake seismic/wind code requirements. Always have plans reviewed by a licensed local engineer and consult your building department before construction. All designs © Home Plan DIY, for personal use only.
