Modern L-Shaped Cottage House Plan - 3 Bed, 2 Bath, 1,360 Sq Ft of Smart Single-Story Living

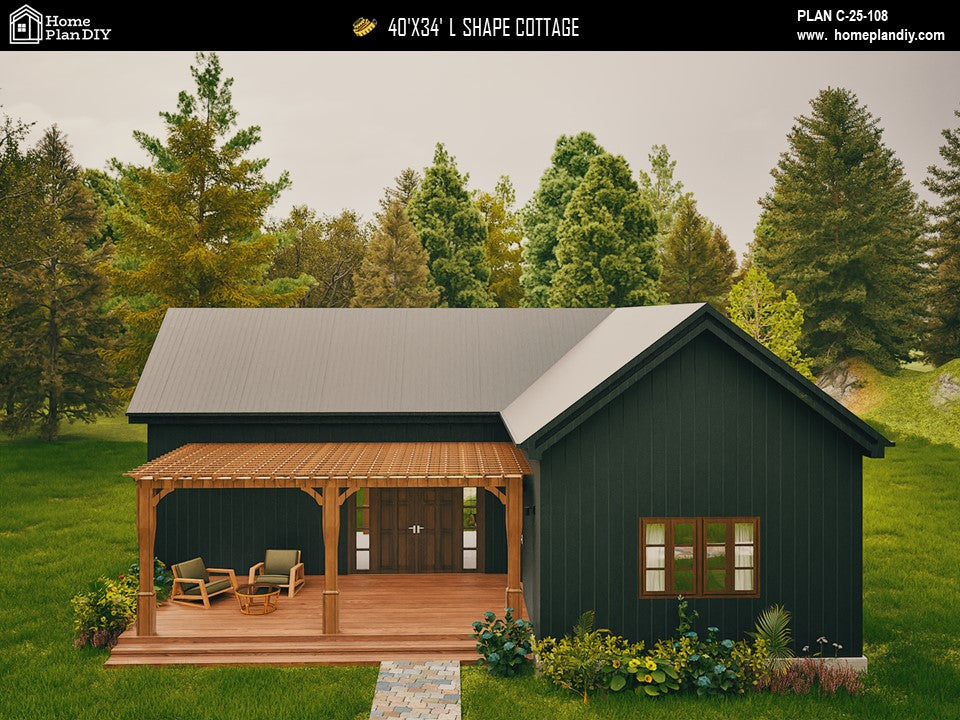

Looking for a small house plan that lives large? This modern L-shaped cottage combines an efficient 1,360 sq ft single-story layout with a dramatic 21'11" x 11'11" pergola-covered terrace, giving you resort-style indoor-outdoor living on a compact 40'1" x 34'2" footprint. It is a perfect fit for owner builders, backyard guest houses, ADUs, short-term rental investments, lake or country lots, and anyone downsizing without giving up comfort.

Why builders and homeowners love this layout

The L-shape does the heavy lifting. The private wing holds a generous 15'4" x 11'8" master bedroom with its own bath featuring a soaking tub, while bedrooms 2 and 3 (each 10'4" x 7'6") share a full hall bath on the opposite side of the open living zone. In between, the 13'5" x 15'4" living room flows into a 15'4" x 9'8" kitchen with dining nook, and a dedicated 5'0" x 5'8" laundry room keeps the washer and dryer out of sight. Everything sits on one level with no stairs, which makes this plan excellent for aging in place and accessible living.

What is included with this house plan

Plan packages include the complete working drawing set as a print-ready PDF, editable CAD (DWG) files for your designer or engineer, a complete material list for accurate takeoffs, and a reverse (mirrored) plan option for lots that need a flipped layout. The drawing set covers:

• Cover sheet with project data and ANSI-standard area calculations
• General construction notes
• Fully dimensioned ground floor plan, loft plan, and sectional floor plan
• Slab plan layout showing load-bearing walls and footing layout
• Ceiling outline and roof outline plans
• Building sections A-A' and B-B' plus all four exterior elevations
• Kitchen and bath details with plans, sections, and code clearances
• Rafter details with five insulation assembly options
• Wall, window, flashing, and foundation details
• Door and window schedule
• Framing details, electrical plan with legend, and plumbing plan
• Complete material takeoff for accurate quotes from your lumber yard or builder

Construction specifications

Wood stud framing, 2x10 rafters, black corrugated metal roofing with cedar tongue-and-groove accents, energy-efficient fixed and sliding windows, and a fully detailed foundation with drilled piers, rebar schedules, drainage, vapor barrier, and termite protection. Electrical includes GFCI protection, a 220V appliance circuit, and hardwired smoke and CO detection. Plumbing covers copper or PEX supply with Schedule 40 PVC drain-waste-vent.

How much does it cost to build this house plan?

Plan on roughly $130 to $220 per heated square foot depending on region, finishes, and labor, which comes to approximately $177,000 to $300,000 for this 1,360 sq ft design. The included material list helps you nail down real local pricing before you break ground.

How does delivery work?

Files are delivered as an instant digital download after checkout, with no shipping and no waiting. Print the PDF set at any local print shop or blueprint service, hand a copy to your builder, and take a copy to your permit office. The CAD files open in AutoCAD and compatible software if your engineer needs to make local adjustments.

Please note: Plans are drawn to California residential codes and are not sealed or engineered for other states. Most jurisdictions require review by a local licensed engineer or architect before permitting, so check with your building department before purchase. Digital product; all sales are final. © Home Plan DIY, for personal use only.
